PEB 2084
Semiconductor Group
50
3.4.3
An activation and deactivation procedure between a QUAT-S and an ISAC-S or SBCX
in TE mode over the S/T interface line is shown in
figure 26
. It illustrates how the state
machines of the respective modes interwork to facilitate activation and deactivation. In
this case activation was initiated by an AR request at the terminal side and deactivation
by a DR command at the LT side. Activation could also be initialized at the LT side using
an AR request.

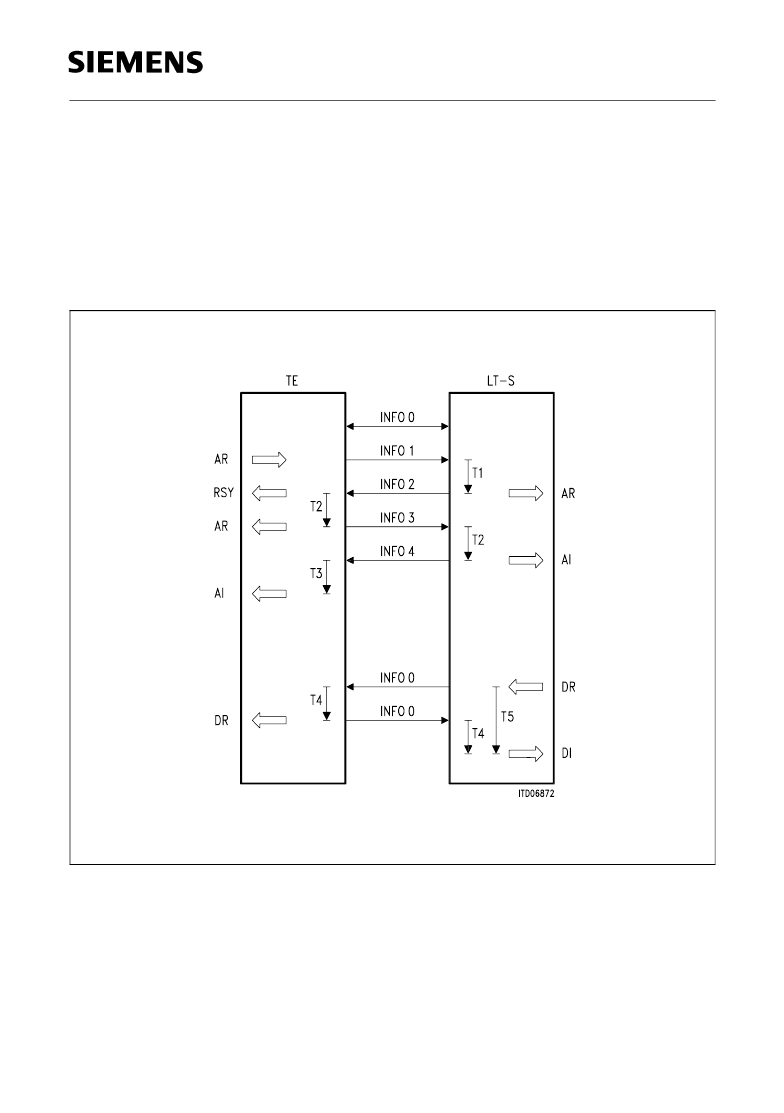

Example of Activation/Deactivation
Figure 26
Example of S/T Interface Activation and Deactivation
Note:
T1:
4 ms
≤
1 ms
500 ms
16 ms
32 ms
time for INFO 1 detection
time for synchronization
time for INFO 4 detection (2 subsequent frames)
time for INFO 0 detection
timer
T2:
T3:
T4:
T5:
