7
www.fairchildsemi.com
S
Overview of SCANPSC110F Bridge Functions
(Continued)

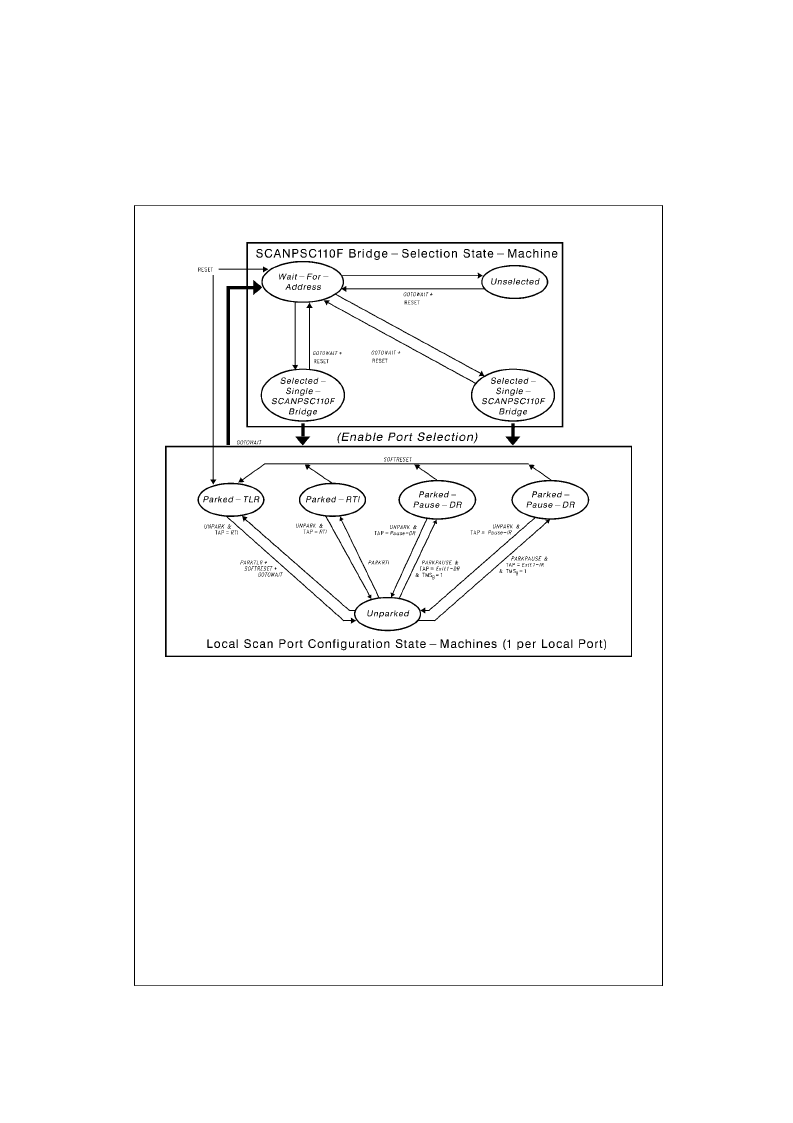

FIGURE 5. Relationship Between SCANPSC110F Bridge State Machines
Following a hardware reset, the TAP controller state-
machine is in the
Test-Logic-Reset (TLR)
state; the
SCANPSC110F-selection state-machine is in the
Wait-For-
Address
state; and each of the three port-selection state-
machines is in the
Parked-TLR
state. The SCANPSC110F
is then ready to receive Level-1 protocol, followed by Level-
2 protocol.
Tester/SCANPSC110F
Bridge Interface
An IEEE 1149.1 system tester sends instructions to a
SCANPSC110F via that SCANPSC110F
’
s backplane scan-
port. Following test logic reset, the SCANPSC110F
’
s selec-
tion state-machine is in the
Wait-For-Address
state. When
the SCANPSC110F
’
s TAP controller is sequenced to the
Shift-IR state, data shifted in through the TDI
B
input is
shifted into the SCANPSC110F
’
s instruction register. Note
that prior to successful selection of a SCANPSC110F, data
is not shifted out of the instruction register and out through
the SCANPSC110F
’
s TDO
B
output, as it is during normal
scan operations. Instead, as each new bit enters the
instruction register
’
s most-significant bit, data shifted out
from the least-significant bit is discarded.
When the instruction register is updated with the address
data, the SCANPSC110F
’
s address-recognition logic com-
pares the six least-significant bits of the instruction register
with the 6-bit assigned address which is statically present
on the S
(0
–
5)
inputs. Simultaneously, the scanned-in
address is compared with the reserved Broadcast and
Multi-cast addresses. If an address match is detected, the
SCANPSC110F-selection state-machine enters one of the
two selected states. If the scanned address does not match
a valid single-slot address or one of the reserved broad-
cast/multi-cast addresses, the SCANPSC110F-selection
state-machine enters the
Unselected
state.
Note that the SLOT inputs
should not be set
to a value cor-
responding to
a multi-cast group
, or to the
broadcast
address
. Also note that the single-SCANPSC110F selec-
tion process must be performed for all SCANPSC110Fs
which are subsequently to be addressed in multi-cast
mode. This is required because each such device
’
s Multi-
cast Group Register (MCGR) must be programmed with a
multi-cast group number, and the MCGR is not accessible
to the test controller until that SCANPSC110F has first
entered the
Selected-Single-SCANPSC110F
state.
Once a SCANPSC110F has been selected, Level-2 proto-
col is used to issue commands and to access the chip
’
s
various registers.
