DAC1627D1G25
All information provided in this document is subject to legal disclaimers.
NXP B.V. 2011. All rights reserved.
Objective data sheet
Rev. 1 — 29 April 2011
35 of 69
NXP Semiconductors
DAC1627D1G25
Dual 16-bit DAC: up to 1.25 Gsps; x2, x4 and x8 interpolating
Figure 28
shows an example of a connection to an IQ-modulator with a 3.3 V common
input level and auxiliary DACs.
The constraints to adjust the interface are:
The output compliance range of the DAC
The output compliance range of the auxiliary DACs
The input common-mode level of the IQ-modulator
The range of offset correction

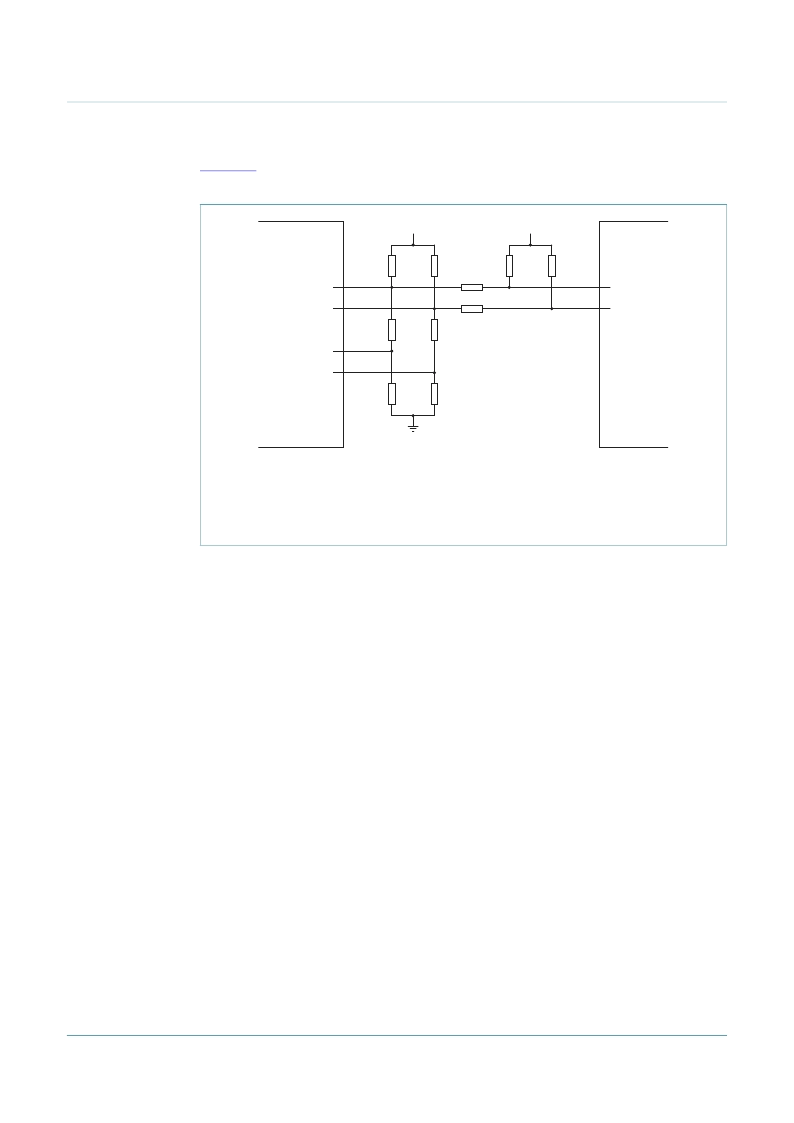

Fig 28. IQ-modulator: DC interface with a 3.3 V common input level and auxiliary DACs
IOUTAP/IOUTBP
3.3 V
DAC1627D
54.9 Ω
237 Ω
237 Ω
54.9 Ω
5 V
750 Ω
750 Ω
442 Ω
442 Ω
634 Ω
634 Ω
IOUTAN/IOUTBN
AUXAP/AUXBP
AUXAN/AUXBN
BBAP/BBBP
BBAP/BBAN
BBBP/BBBN
V
I(cm)
= 3.3 V
V
I(dif)
= 1.5 V
offset correction = up to 36 mV
IOUTAP/IOUTAN
IOUTBP/IOUTBN
V
O(cm)
= 2.75 V
V
O(dif)
= 1.96 V
BBAN/BBBN
001aan841
