DAC1627D1G25
All information provided in this document is subject to legal disclaimers.
NXP B.V. 2011. All rights reserved.
Objective data sheet
Rev. 1 — 29 April 2011
34 of 69
NXP Semiconductors
DAC1627D1G25
Dual 16-bit DAC: up to 1.25 Gsps; x2, x4 and x8 interpolating

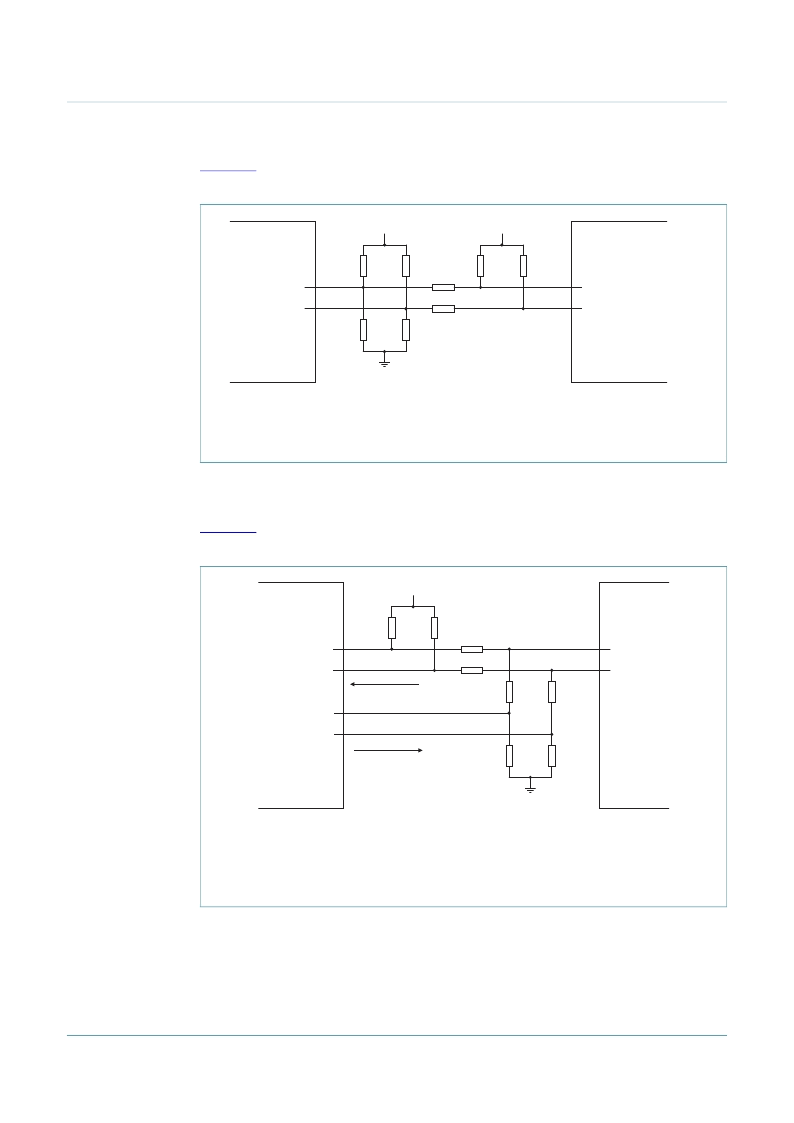

Figure 26
shows an example of a connection to an IQ-modulator with a 3.3 V common
input level.
The auxiliary DACs can be used to control the offset within an accurate range or with
accurate steps.
Figure 27
shows an example of a connection to an IQ-modulator with a 1.7 V common
input level and auxiliary DACs.
Fig 26. IQ-modulator: DC interface with a 3.3 V common input level
Fig 27. IQ-modulator: DC interface with a 1.7 V common input level and auxiliary DACs
IOUTAP/IOUTBP
3.3 V
DAC1627D
54.9 Ω
237 Ω
237 Ω
54.9 Ω
5 V
750 Ω
750 Ω
1.27 kΩ
1.27 kΩ
IOUTAN/IOUTBN
BBAP/BBBP
BBAP/BBAN
BBBP/BBBN
V
I(cm)
= 3.3 V
V
I(dif)
= 1.5 V
IOUTAP/IOUTAN
IOUTBP/IOUTBN
V
O(cm)
= 2.75 V
V
O(dif)
= 1.97 V
IQ-modulator (V
I(cm)
= 3.3 V)
BBAN/BBBN
001aan839
IOUTAP/IOUTBP
3.3 V
DAC1627D
51.1 Ω
442 Ω
442 Ω
51.1 Ω
51.1 Ω
51.1 Ω
698 Ω
698 Ω
IOUTAN/IOUTBN
AUXAP/AUXBP
AUXAN/AUXBN
BBAP/BBBP
BBAP/BBAN
BBBP/BBBN
V
I(cm)
= 1.7 V
V
I(dif)
= 1.23 V
offset correction = up to 50 mV
IOUTAP/IOUTAN
IOUTBP/IOUTBN
V
O(cm)
= 2.67 V
V
O(dif)
= 1.94 V
BBAN/BBBN
001aan840
0 mA to 20 mA
1.1 mA (typical)
