Si5350C
Rev. 0.2
11
between system performance and EMI compliance. The amount of spread is configurable within the following
parameters:
Down spread: –0.5 to –2.5% modulation amplitude
An optional spread spectrum enable pin (SSEN) is configurable to enable or disable the spread spectrum feature.

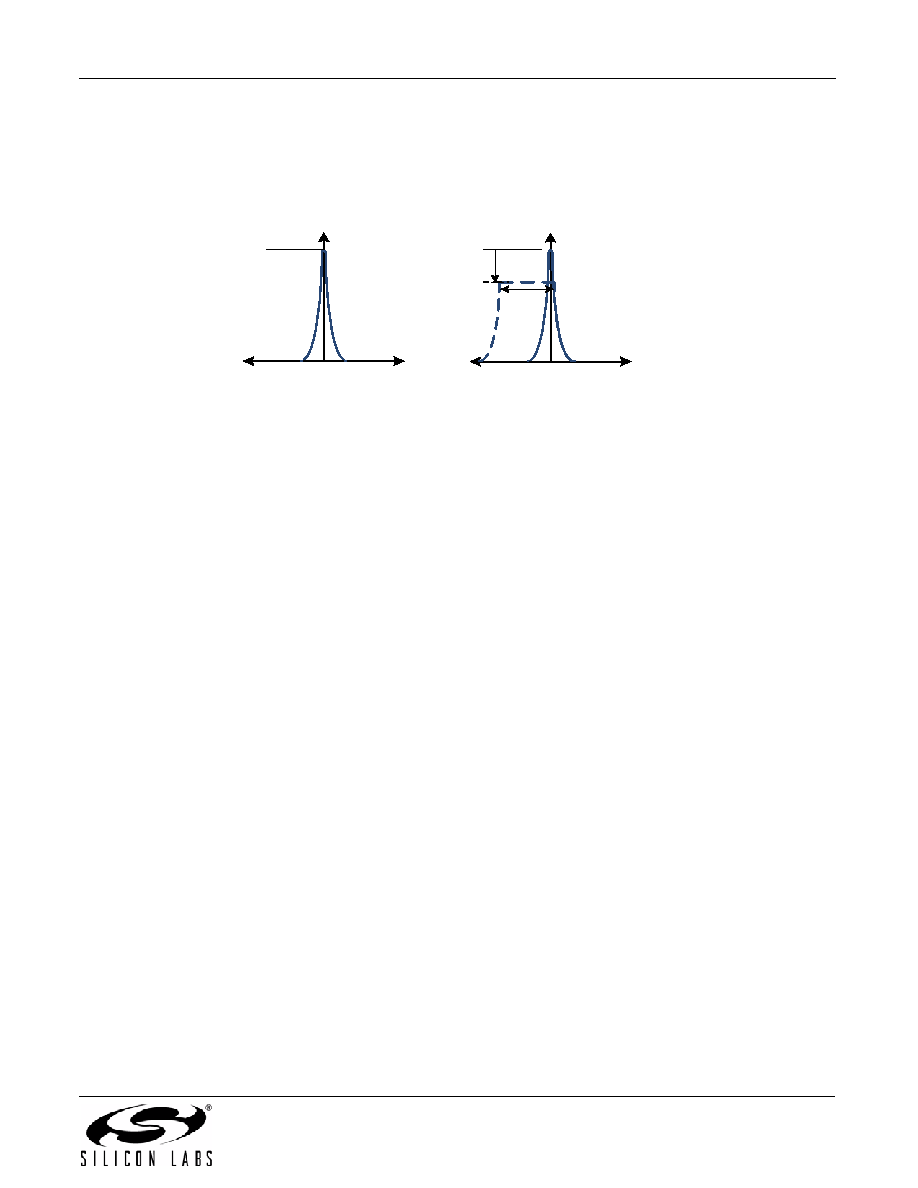

Figure 4. Available Spread Spectrum Profiles
4.3.3. Invert/Non-Invert
By default, each of the output clocks are generated in phase (non-inverted) with respect to each other. An option to
invert any of the clock outputs is also available.
4.3.4. Output State When Disabled
There are up to three output enable pins configurable on the Si5350C as described in “4.4.5. Loss Of Lock (LOL)” .
The output state when disabled for each of the outputs is configurable as one of the following: disable low, disable
high, or disable in high-impedance.
4.3.5. Powering Down Unused Outputs
Unused clock outputs can be completely powered down to conserve power.
4.4. Programmable Control Pins (P0–P3) Options
Up to four programmable control pins (P0-P3) are configurable allowing direct pin control of the following features:
4.4.1. Spread Spectrum Enable (SSEN)
An optional control pin allows disabling the spread spectrum feature for all outputs that were configured with
spread spectrum enabled. Hold SSEN low to disable spread spectrum. The SSEN pin provides a convenient
method of evaluating the effect of using spread spectrum clocks during EMI compliance testing.
4.4.2. Frequency Select (FS_0, FS_1)
The Si5350C offers the option of configuring up to two frequencies per clock output (CLK0-CLK5) for either free-
running or synchronous clocks. This is a useful feature for applications that need to support more than one free-
running or synchronous clock rate on the same output. An example of this is shown in Figure 5. The FS pins select
which frequency is generated from the clock output. In this example FS0 select the output frequency on CLK0, and
FS1 selects the frequency on CLK1.
fc
R educed
A m plitude
and E M I
Do w n S p read
S pread A m ount
- 0.5% to - 2.5 %
fc
No S p read
Spectrum
C enter
F requency
A m plitude
