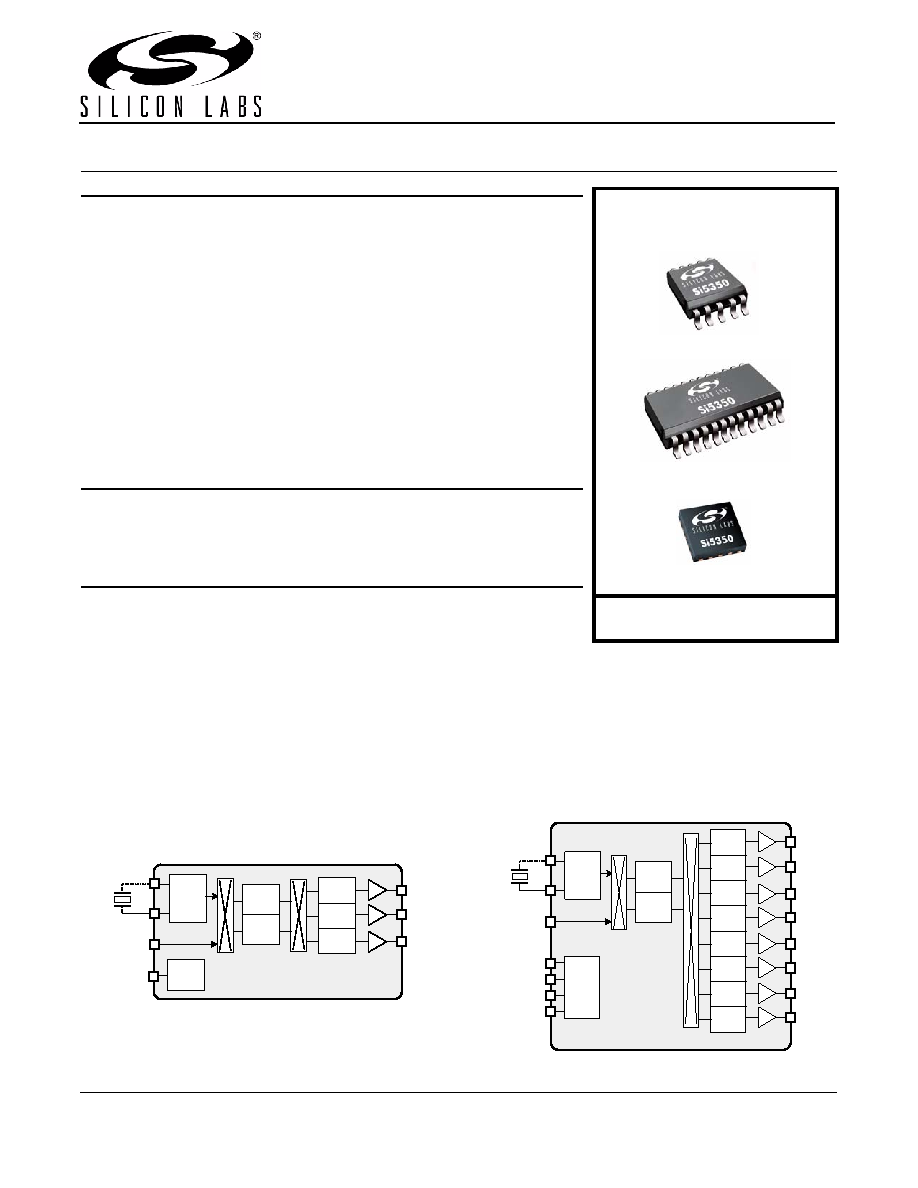

Rev. 0.2 11/10
Copyright 2010 by Silicon Laboratories
Si5350C
This information applies to a product under development. Its characteristics and specifications are subject to change without notice.
Si5350C
F ACTORY-P ROGRAMMABLE A NY-F REQUENCY CM OS C LOCK G ENERATOR + PLL
Features
Applications
Description
The Si5350C generates free-running and/or synchronized clocks selectable on
each of its outputs. A dual PLL + high resolution MultiSynthTM fractional divider
architecture enables this user-definable custom timing device to generate any of
the specified output frequencies at any of its outputs. This allows the Si5350C to
replace a combination of crystals, crystal oscillators, and synchronized clocks
(PLL). Custom pin-controlled Si5350C devices are requested using the
ClockBuilder web-based part number utility (www.silabs.com/ClockBuilder).
Generates up to 8 non-integer
frequencies from 8 kHz to 125 MHz
Exact frequency synthesis at each
output (0 ppm error)
Glitchless frequency changes
Low output period jitter: 100 ps pp
Configurable Spread Spectrum
selectable at each output
User-configurable control pins:
Output Enable (OEB_0/1/2)
Power Down (PDN)
Frequency Select (FS_0/1)
Spread Spectrum Enable (SSEN)
Loss of Lock Status (LOL)
Operates from a low-cost, fixed
frequency crystal: 25 or 27 MHz
Separate voltage supply pins:
Core VDD: 2.5 V or 3.3 V
Output VDDO: 2.5 V or 3.3 V
Excellent PSRR eliminates external
power supply filtering
Very low power consumption
(<15 mA)
Available in 3 packages types:
10-MSOP: 3 outputs
24-QSOP: 8 outputs
20-QFN (4x4 mm): 8 outputs
HDTV, DVD/Blu-ray, set-top box
Audio/video equipment, gaming
Printers, scanners, projectors
Residential gateways
Networking/communication
Servers, storage
Ordering Information:
See Page 20
20-QFN
24-QSOP
10-MSOP
CLK0
CLK1
CLK2
CLK3
CLK4
CLK5
CLK6
CLK7
Multi
Synth
0
Multi
Synth
1
Multi
Synth
2
Multi
Synth
3
Multi
Synth
4
Multi
Synth
5
Multi
Synth
6
Multi
Synth
7
P0
P1
P2
P3
Control
Logic
OSC
XA
XB
CLKIN
PLLA
PLLB
20-QFN, 24-QSOP
Si5350C
CLK0
CLK1
CLK2
P0
Control
Logic
Multi
Synth
0
Multi
Synth
1
Multi
Synth
2
OSC
XA
XB
CLKIN
PLLA
PLLB
Si5350C
10-MSOP
