1996 Jan 08
46
Philips Semiconductors
Preliminary specification
Microcontroller for monitor OSD
and auto-sync applications
PCE84C882
16 OUTPUT PORTS
Each I/O port line may be individually configured using one
of three mask options. The three I/O mask options are
specified below:
Option 1 Standard input/output with switched pull-up
current source; this is shown in Fig.34.
Option 2 Input/output with Open drain output; this is
shown in Fig.35.
Option 3 Push-pull output; this is shown in Fig.36.
The state of each output port after a Power-on-reset can
also be selected using the mask options. All port mask
options are given in Section 16.1.

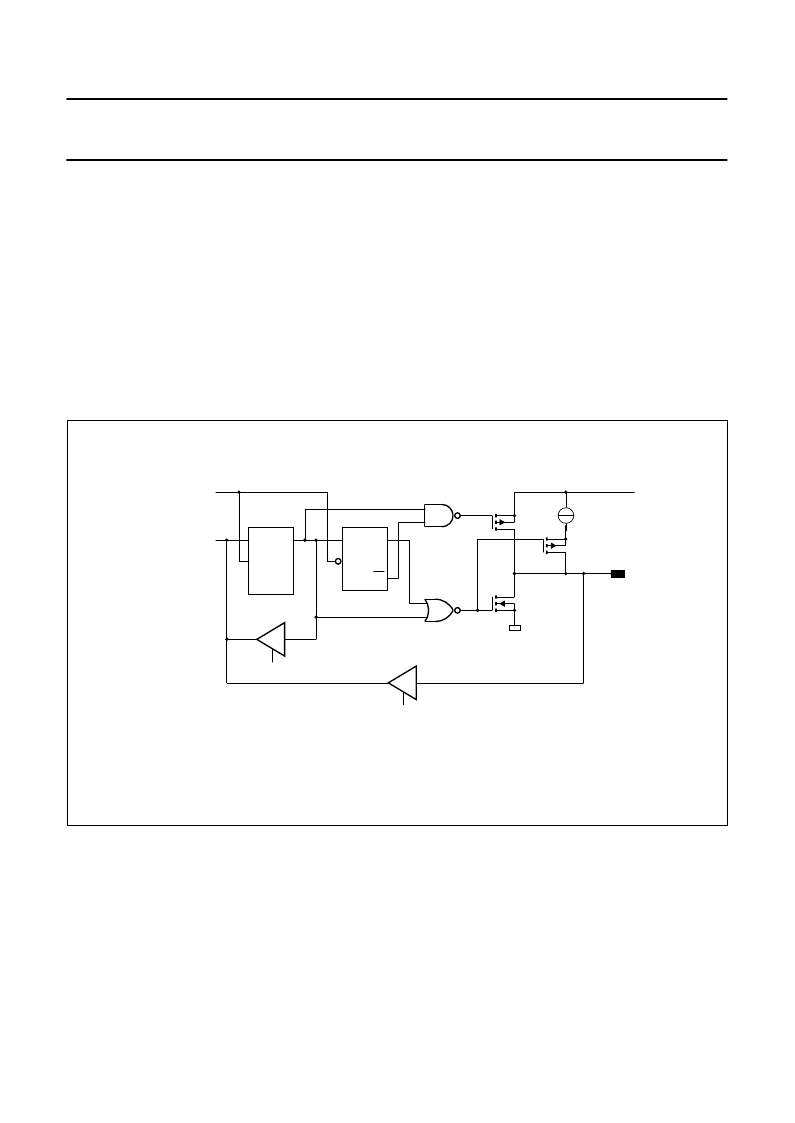

Fig.34 Standard I/O with pull-up transistor source (Option 1).
handbook, full pagewidth
MLA696
TR3
I/O PORT
LINE
SLAVE
D
SQ
SQ
MASTER
D
MQ
WRITE PULSE
DATA BUS
ORL/ANL/MOV
IN/MOV
TR1
VSS
TR2
VDD
constant
current
source
100
μ
A typ.
