1996 Jan 08
21
Philips Semiconductors
Preliminary specification
Microcontroller for monitor OSD
and auto-sync applications
PCE84C882

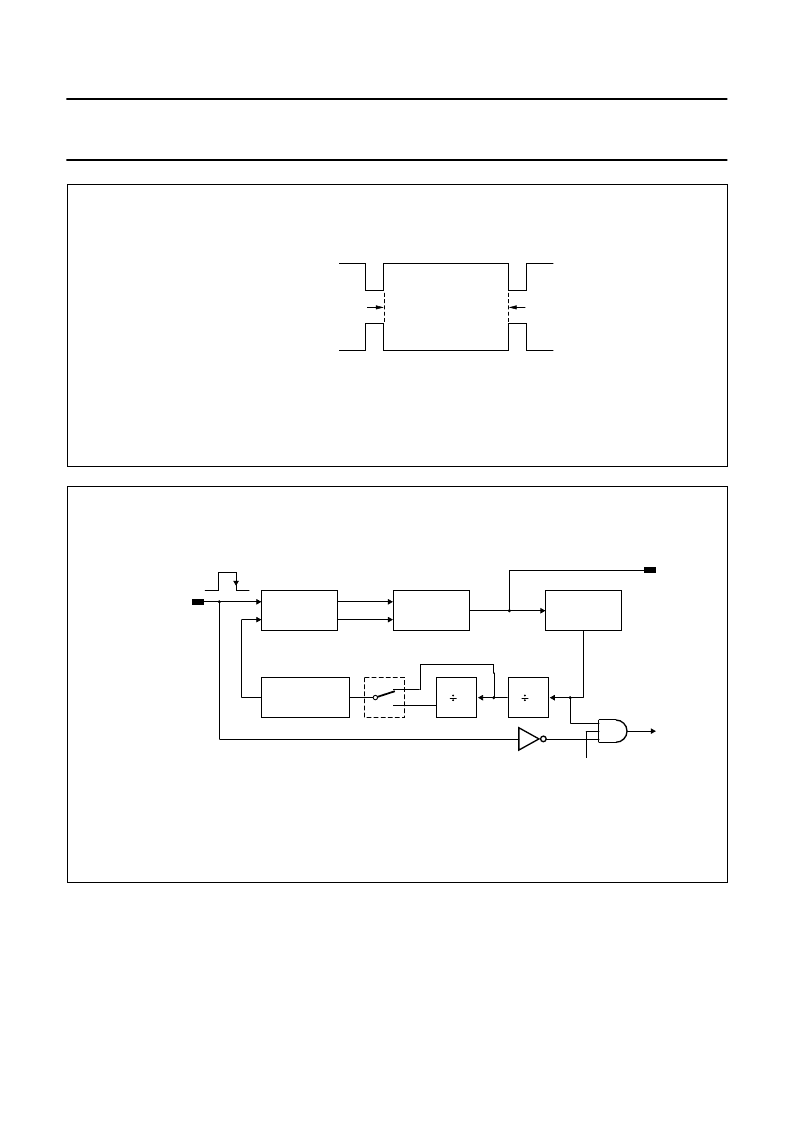

Fig.16 HSYNCN and VSYNCN active level selection.
handbook, full pagewidth
MLC286
character display interval
HSYNCN/VSYNCN pin
Hp/Vp = 1 (active HIGH)
HSYNCN/VSYNCN pin
Hp/Vp = 0 (active LOW)
Fig.17 Block diagram for OSD oscillator.
handbook, full pagewidth
MGC716
VOLTAGE
CONTROLLED
OSCILLATOR
CHARGE PUMP
AND
LOOP FILTER
PHASE/
FREQUENCY
DETECTOR
PROGRAMMABLE
7-BIT COUNTER
fOSD
2
Hsync
(30 to 90 kHz)
OSD disable
fPLL
C
mask option
2
