72
SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER with CLOSED CAPTION DECODER
and ON-SCREEN DISPLAY CONTROLLER
M37280MFH–XXXSP, M37280MKH–XXXSP
M37280EKSP
MITSUBISHI MICROCOMPUTERS
Rev. 1.0

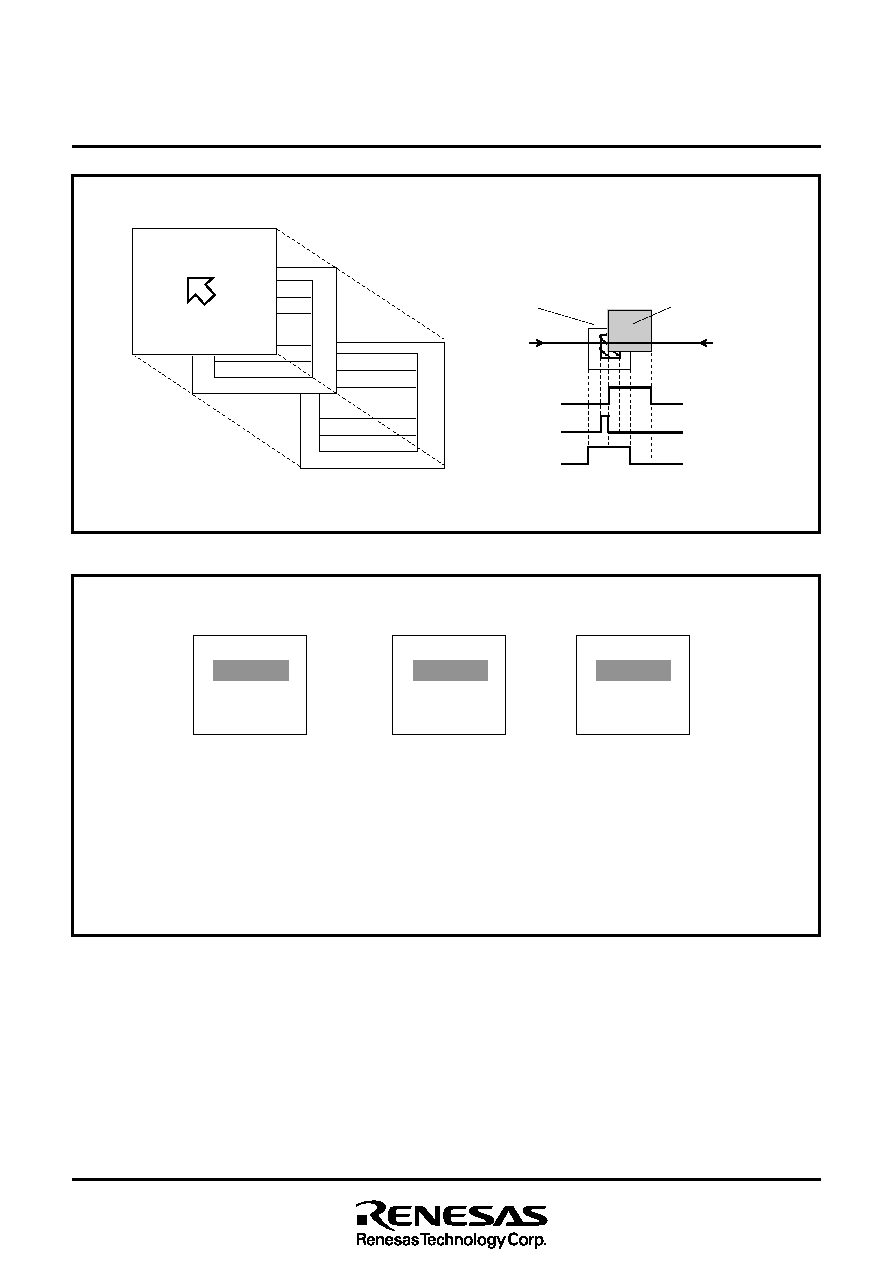

Fig. 8.11.6 Display Example of Triple Layer OSD
Display example of layer 1 = “HELLO,” layer 2 = “CH5”
CH5
HELLO
Logical sum (OR) of
layer 1’s color and
layer 2’s color (See note)
Bit 7 = “0,” bit 6 = “0”
Layer 1’s color has priority
Bit 7 = “0”, bit 6 = “1”
CH5
HELLO
Layer 2’s color has priority
Bit 7 = “1,” bit 6 = “0”
HELLO
CH5
Note: Layer mixing is not logical sum (OR) of colors, but that of each bit of
color pallet register.
Example) When logical sum (OR) is performed on color pallet 1 (00012) and color
pallet 2 (00102), the color set to color pallet 3 (00112) is output, regardless of
color pallets 1 and 2 contents.
Fig. 8.11.5 Triple Layer OSD
Layer 2
Layer 1
Block 1
Block 2
Block 7
Block 8
...
Layer 3
Block 9
Block 15
Block 10
Block 16
...
Sprite
R, G, B of layer 1
OUT2 of layer 1
SPRITE
Layer 1
SPRITE
(except transparent)
Note : When layer 1 and SPRITE display overlay
each other, only OUT2 in layer 1 is output.
A'
A
