56
SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER with CLOSED CAPTION DECODER
and ON-SCREEN DISPLAY CONTROLLER
M37280MFH–XXXSP, M37280MKH–XXXSP
M37280EKSP
MITSUBISHI MICROCOMPUTERS
Rev. 1.0
8.10.1 Notes When not Using Data Slicer
When bit 0 of data slicer control register 1 (address 00E016) is “0,”
terminate the pins as shown in Figure 8.10.2.

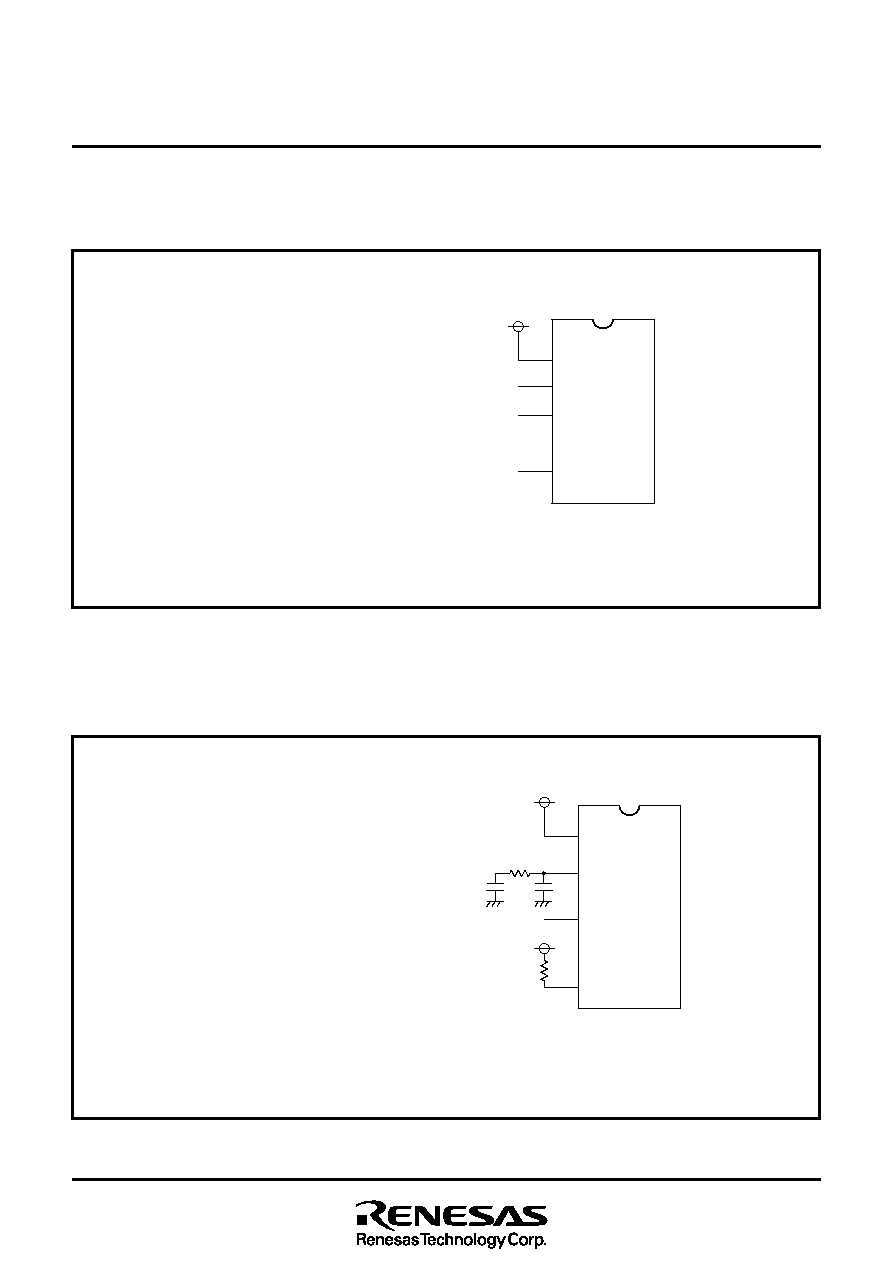

Fig. 8.10.2 Termination of Data Slicer Input/Output Pins when Data Slicer Circuit and Timing Generating Circuit Is in OFF State
When both bits 0 and 2 of data slicer control register 1 (address
00E016) are “1,” terminate the pins as shown in Figure 8.10.3.
Fig. 8.10.3 Termination of Data Slicer Input/Output Pins when Timing Signal Generating Circuit Is in ON State
<When data slicer circuit and timing signal generating circuit is in OFF state>
<When using a reference clock generated in timing signal generating circuit as OSD clock>
Apply the same voltage as VCC to AVCC pin.
Connect the same external circuit as when
using data slicer to HLF pin.
Leave VHOLD pin open.
Pull-up CVIN to VCC through a resistor
of 5 k
or more.
VHOLD
CVIN
Open
5 k
or more
HLF
1 k
200pF
1
F
24
25
27
28
()
AVCC
() Only M37280EKSP have AVCC pin.
This pin is non-connection pin in M37280MFH-XXXSP, M37280MKH-XXXSP.
But NC pin of M37280MFH-XXXSP, M37280MKH-XXXSP is not connect in the IC.
You can apply to Vcc.
HLF
VHOLD
CVIN
Apply the same voltage as VCC to
AVCC pin.
VCC or VSS
Apply HLF pin VCC or VSS level.
Apply VHOLD pin VCC or VSS level.
Pull-up CVIN pin to VCC through
a resistor of 5 k
or more.
VCC or VSS
24
25
27
28
()
AVCC
() Only M37280EKSP have AVCC pin.
This pin is non-connection pin in M37280MFH-XXXSP, M37280MKH-XXXSP.
But NC pin of M37280MFH-XXXSP, M37280MKH-XXXSP is not connect in the IC.
You can apply to Vcc.
