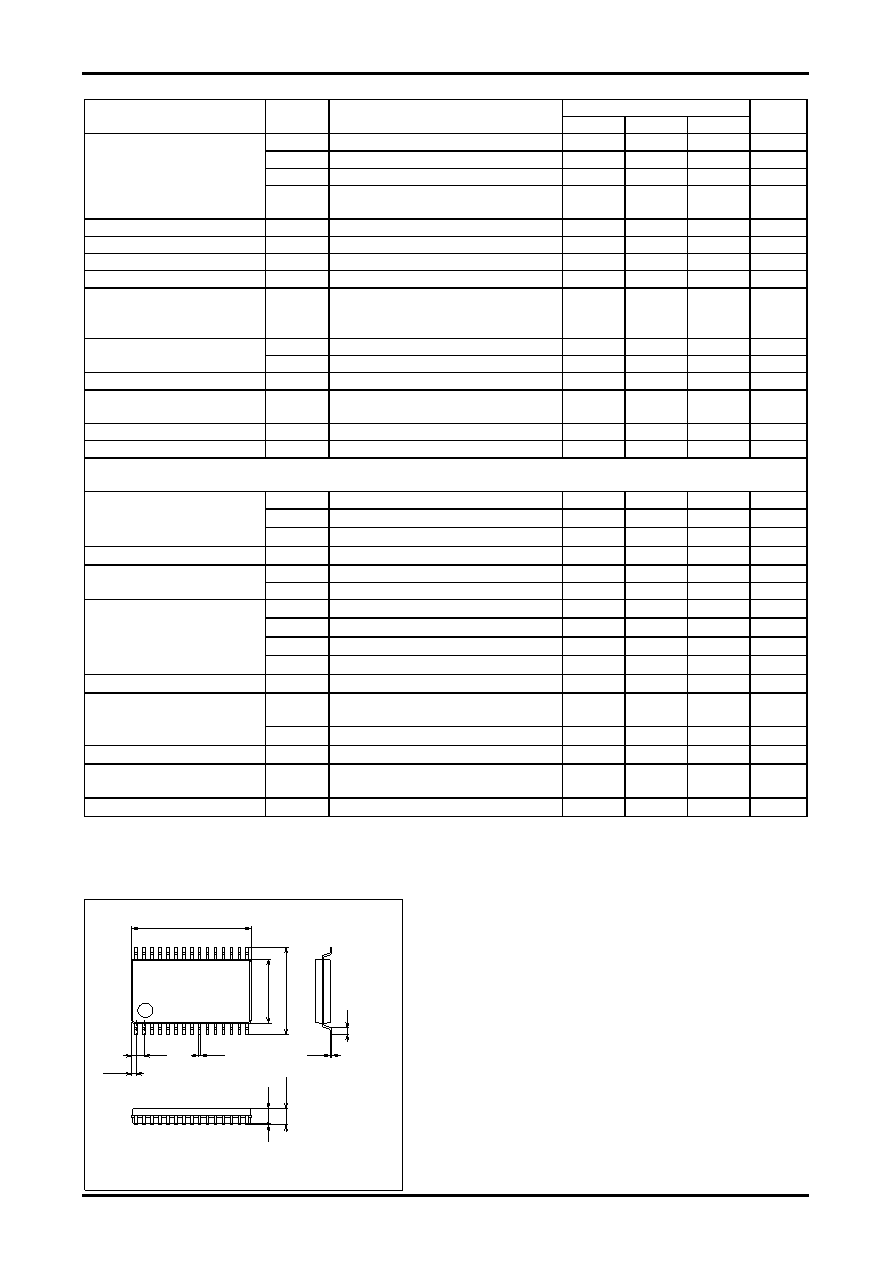

LV23401V
Continued from preceding page.
Ratings
Parameter
Symbol
Conditions
min
typ
max
Unit
VO0
MONO, VOL = 0 (reference value)
(218)
(327)
(489)
mVrms
VO1
MONO, VOL = 1 (reference value)
(291)
(436)
(652)
mVrms
VO2
MONO, VOL = 2 (reference value)
(366)
(549)
(821)
mVrms
Demodulation output
VO3
MONO, VOL = 3 (reference value)
*In-house management = Typ ±3.0dB
518
775
1160
mVrms
MPX output
VO_MPX
6 pin output
100
200
300
mVrms
Channel balance
CB
10 pin output / 9 pin output
-1
0
+0
dB
SD operation level
SD
FS_S = 4
17
25
33
dBμV
Stereo operation level
ST
FS_S = 4
17
25
33
dBμV
Stereo separation
Sep
Both channels of 9 pins and 10 pins are
measured.
*In-house management value ≥25dB
25
40
dB
Deemp50
fm = 10kHz, 15kHz LPF OFF
-12.5
-10
-7.5
dB
De-emphasis deflection
Deemp75
fm = 10kHz, 15kHz LPF OFF
-13
dB
Carrier leakage
CL
STEREO S/N, 15kHz LPF OFF
30
40
dB
Pilot margin
(Pilot lighting sensitivity)
ST-ON
L+R = 67.5kHz, Pilot-mod
0.6
5.5
%
AM suppression ratio
AMR
400Hz AM 30% mod.
40
65
dB
Mute attenuation
MUTE
60
75
dB
[AM receive characteristics] : fc = 1MHz, VIN = 94dBμV, fm = 400Hz, 30% mod, IF = 53kHz, BW = 50%
Volume level = 3, Soft mute = 4, Resister 1Eh Bit 1(LEVSHIF) = 1, 9 pin output, 15kHz LPF OFF
SN20
Input level that becomes S/N=20dB
49
65
dBμV
SN20-L
fc = 603kHz (reference value)
(55)
(65)
dBμV
S/N 20dB Sensitivity
SN20-H
fc = 1404kHz (reference value)
(49)
(65)
dBμV
Signal-to-noise ratio
SN
42
50
dB
THD1
0.6
2.8
%
Total harmonic distortion
THD2
VIN = 104dBμV
0.8
2.8
%
VO0
VOL = 0 (reference value)
(55)
(78)
(109)
mVrms
VO1
VOL = 1 (reference value)
(69)
(98)
(138)
mVrms
VO2
VOL = 2 (reference value)
(87)
(123)
(173)
mVrms
Detected output
VO3
VOL = 3
110
155
218
mVrms
Channel balance
CB
10 pin output / 9 pin output
-1
0
+1
dB
AGC1
Input level difference that output level becomes
-10dB. Soft mute = 3 (reference value)
(52)
(62)
dB
AGC response
AGC2
Soft mute = 4
47
57
dB
Frequency response
Hi-cut
fm = 4kHz
-22
-17
-12
dB
SD operation level
SD
AGC = ON, FS = 4
*In-house management =46 to 65dBμV
46
54
65
dBμV
Mute attenuation
MUTE
15kHz LPF ON
50
65
dB
Package Dimensions
unit : mm
3191B
SANYO : SSOP30(275mil)
9.75
5.6
7.6
0.22
0.65
(0.33)
1
15
16
30
0.5
0.15
1.5max
0.1
(1.3)
No.A1746-3/24
