SN54ABT8646, SN74ABT8646
SCAN TEST DEVICES WITH
OCTAL BUS TRANSCEIVERS AND REGISTERS
SCBS123F AUGUST 1992 REVISED APRIL 2004
15
POST OFFICE BOX 655303
DALLAS, TEXAS 75265

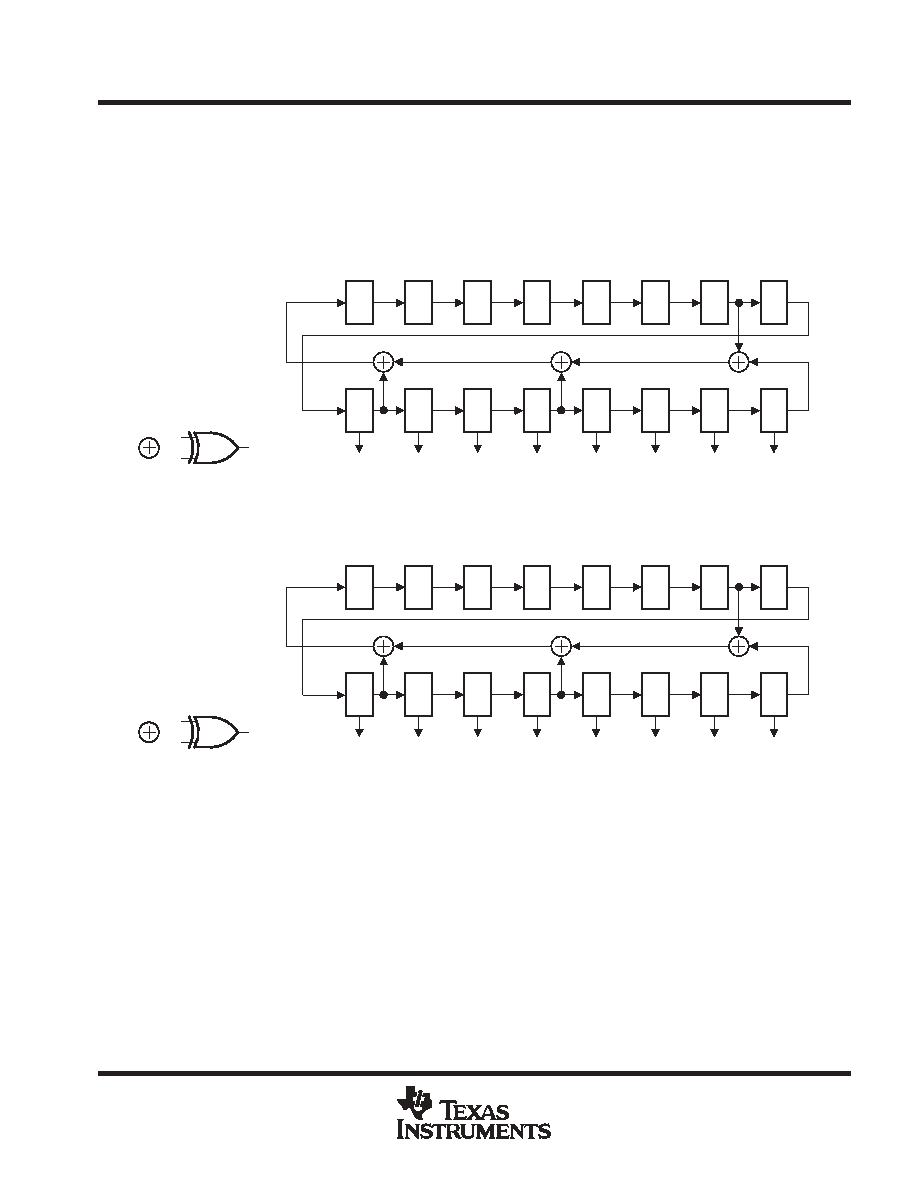

pseudorandom pattern generation (PRPG)
A pseudorandom pattern is generated in the shift-register elements of the selected BSCs on each rising edge
of TCK, updated in the shadow latches, and applied to the associated device output pins on each falling edge
of TCK. This data also is updated in the shadow latches of the selected input BSCs and applied to the inputs
of the normal on-chip logic. Figures 5 and 6 show the 16-bit linear-feedback shift-register algorithms through
which the patterns are generated. An initial seed value should be scanned into the BSR before performing this
operation. A seed value of all zeroes does not produce additional patterns.
=
A8-I
B8-O
A7-I
A6-I
A5-I
A4-I
A3-I
A2-I
A1-I
B7-O
B6-O
B5-O
B4-O
B3-O
B2-O
B1-O
Figure 5. 16-Bit PRPG Configuration (OEA = 0, OEB = 1)
=
B8-I
A8-O
B7-I
B6-I
B5-I
B4-I
B3-I
B2-I
B1-I
A7-O
A6-O
A5-O
A4-O
A3-O
A2-O
A1-O
Figure 6. 16-Bit PRPG Configuration (OEA=1, OEB= 0)
