Si5356
Preliminary Rev. 0.3
13
3.7. CMOS Output Drivers
The Si5356 has 4 banks of outputs with each bank
comprised of 2 clocks for a total of 8 CMOS outputs per
device. By default, each bank of CMOS output clocks
are in-phase. Alternatively, each output clock can be
inverted. This feature enables each output pair to
operate as a differential CMOS clock. Each of the
output banks can operate from a different VDDO supply
(1.8 V, 2.5 V, 3.3 V), simplifying usage in mixed supply
applications. All clock outputs between 5 and 200 MHz
are in-phase to within ±150 ps.
The CMOS output driver has a controlled impedance in
the range of 42 to 50
which includes an internal 22
series resistor. An external series resistor is not needed
when driving 50
traces. If higher impedance traces
are used then a series resistor may be added. A typical
configuration is shown in Figure 6.
3.8. Jitter Performance
The Si5356 provides consistently low jitter for any
combination
of
output
frequencies.
The
device
leverages a low phase noise single PLL architecture
and Silicon Laboratories’ patented MultiSynth fractional
output divider technology to deliver period jitter less
than
100 ps
pk-pk
(max)
for
any
frequency
configuration. This level of jitter performance is
guaranteed across process, temperature and voltage.
The Si5356 provides superior performance to traditional
multi-PLL solutions which may suffer from degraded
jitter performance depending on frequency plan and the
number of active PLLs.
3.9. Status Indicators
An interrupt pin (INTR) is available to indicate a loss of
signal (LOS) condition, a PLL loss of lock (LOL)
condition, or that the PLL is in the process of acquiring
lock (SYS_CAL). As shown in Figure 7, a status register
at address 218 is available to help identify the exact
event that caused the interrupt pin to become active. A
LOS condition occurs when there is no clock input to the
Si5356. The loss of lock algorithm works by
continuously monitoring the frequency difference
between the two inputs of the phase frequency detector.
When this frequency difference is greater than
1000 ppm, a loss of lock condition is declared. Note that
the VCO will track the input clock frequency for up to
~25000 ppm, which will keep the inputs to the phase
frequency detector at the same frequency until the PLL
comes out of lock. When a clock input is removed, the
interrupt pin will assert, and the clock outputs may drift
up to 5%. When the input clock is reapplied with an
appropriate frequency, the PLL will again lock.

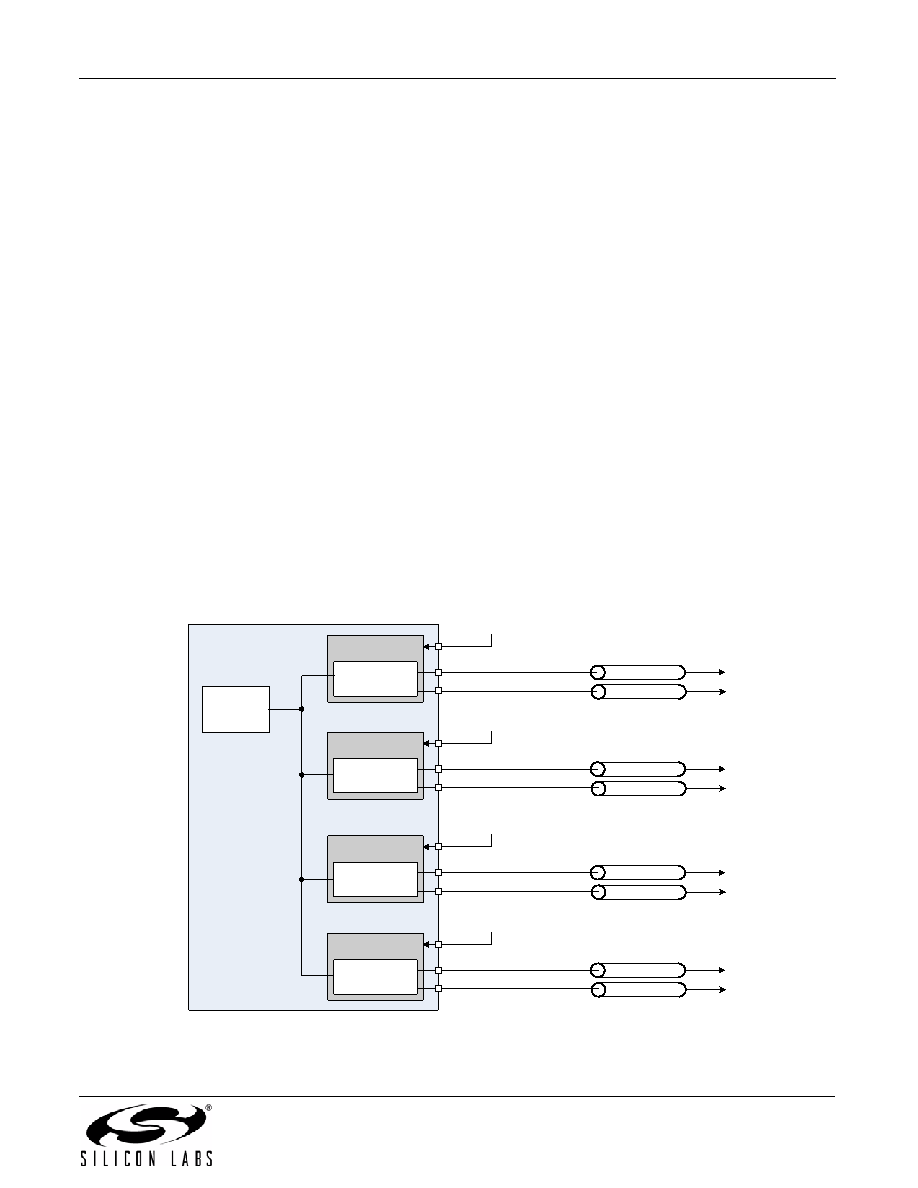

Figure 6. CMOS Output Driver Configuration
MultiSynth
Bank A
+1.8V, +2.5V, +3.3V
VDDOA
CLK0
CLK1
MultiSynth
Bank C
+1.8V, +2.5V, +3.3V
VDDOC
CLK4
CLK5
MultiSynth
Bank D
+1.8V, +2.5V, +3.3V
VDDOD
CLK6
CLK7
MultiSynth
Bank B
+1.8V, +2.5V, +3.3V
VDDOB
CLK2
CLK3
PLL
50
Si5356
