NB6N14S
http://onsemi.com
10

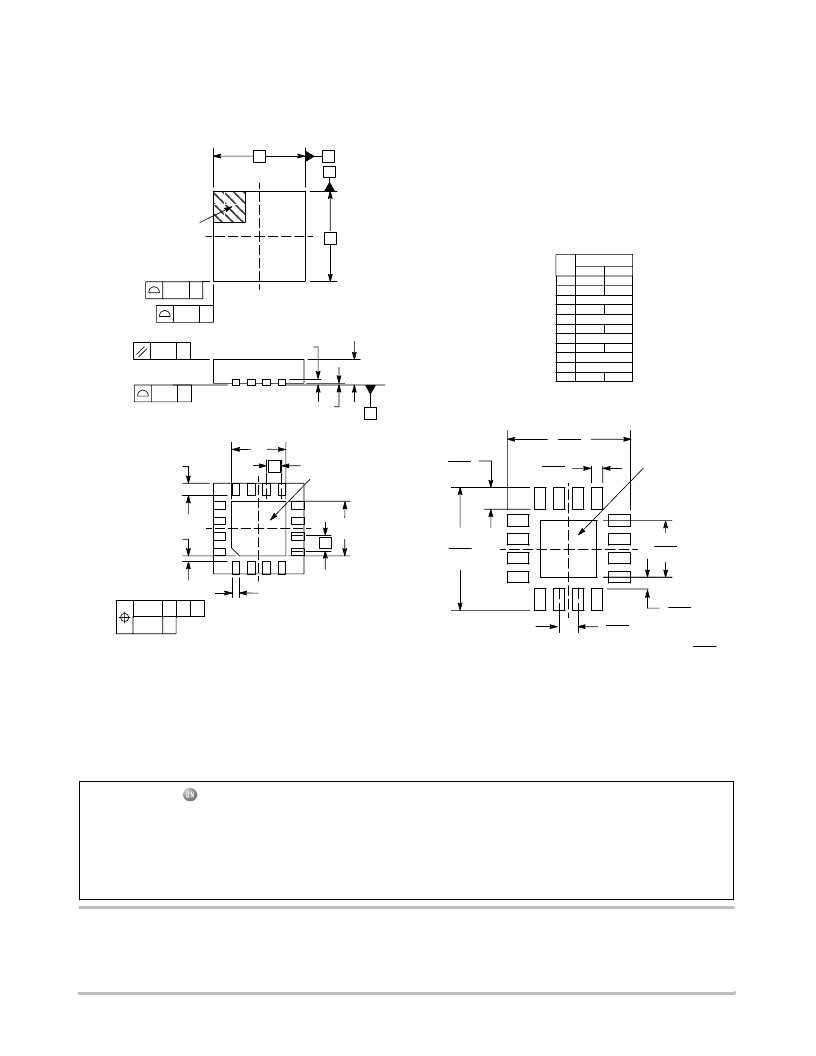

PACKAGE DIMENSIONS
16 PIN QFN
CASE 485G01
ISSUE C
16X
SEATING
PLANE
L
D
E
0.15 C
A
A1
e
D2
b
1
4
5
8
12
9
16
13
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. DIMENSION b APPLIES TO PLATED
TERMINAL AND IS MEASURED BETWEEN
0.25 AND 0.30 MM FROM TERMINAL.
4. COPLANARITY APPLIES TO THE EXPOSED
PAD AS WELL AS THE TERMINALS.
5. L
CONDITION CAN NOT VIOLATE 0.2 MM
MINIMUM SPACING BETWEEN LEAD TIP
AND FLAG
B
A
0.15 C
TOP VIEW
SIDE VIEW
BOTTOM VIEW
PIN 1
LOCATION
0.10 C
0.08 C
(A3)
C
16 X
e
16X
NOTE 5
0.10 C
0.05 C
A B
NOTE 3
K
16X
DIM
A
A1
A3
b
D
D2
E
E2
e
K
L
MIN
0.80
0.00
0.20 REF
0.18
3.00 BSC
1.65
3.00 BSC
1.65
0.50 BSC
0.18 TYP
MAX
1.00
0.05
MILLIMETERS
0.30
1.85
1.85
0.30
0.50
EXPOSED PAD
mm
inches
SCALE 10:1
0.50
0.02
0.575
0.022
1.50
0.059
3.25
0.128
0.30
0.012
3.25
0.128
0.30
0.012
EXPOSED PAD
*For additional information on our PbFree strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
SOLDERING FOOTPRINT*
