MSP430P325
MIXED SIGNAL MICROCONTROLLER
SLAS164A – FEBRUARY 1998 – REVISED MARCH 2000
13
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
absolute maximum ratings
Voltage applied at VCC to VSS (see Note 5)
–0.3 V to 6 V
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Voltage applied to any pin (referenced to VSS)
–0.3 V to VCC + 0.3 V
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diode current at any device terminal
± 2 mA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage temperature, Tstg (unprogrammed device)
–55
°C to 150°C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tstg (programmed device)
–40
°C to 85°C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 5: All voltage values relative to VSS.
recommended operating conditions
MIN
NOM
MAX
UNIT
Supply voltage, VCC (MSP430P/E325)
2.7
5.5
V
Supply voltage, during programming OTP/EPROM
(AVCC = DVCC = VCC)
MSP430P325, PMS430E325
2.7
5
5.5
V
Supply voltage, VSS
0
V
Operating free air temperature range TA
MSP430P325
–40
85
°C
Operating free-air temperature range, TA
PMS430E325
25
°C
XTAL frequency, f(XTAL)
32 768
Hz
Processor frequency (signal MCLK) f(t
)
VCC = 3 V
DC
2.2
MHz
Processor frequency (signal MCLK), f(system)
VCC = 5 V
DC
3.3
MHz
Low-level input voltage, VIL (excluding Xin, Xout)
VSS
VSS+0.8
V
High-level input voltage, VIH (excluding Xin, Xout)
VCC = 3 V/5 V
0.7 VCC
VCC
V
Low-level input voltage, VIL(Xin, Xout)
VCC = 3 V/5 V
VSS
0.2
×VCC
V
High-level input voltage, VIH(Xin, Xout)
0.8
×VCC
VCC
V
2.7
3
5
5.5
f(MHz)
3.3
2.2
1.5
VCC (V)
VCC – Supply Voltage – V
f (system)
–
Maximum
Processor
Frequency
–
MHz
Minimum
NOTE: Minimum processor frequency is defined by system clock.

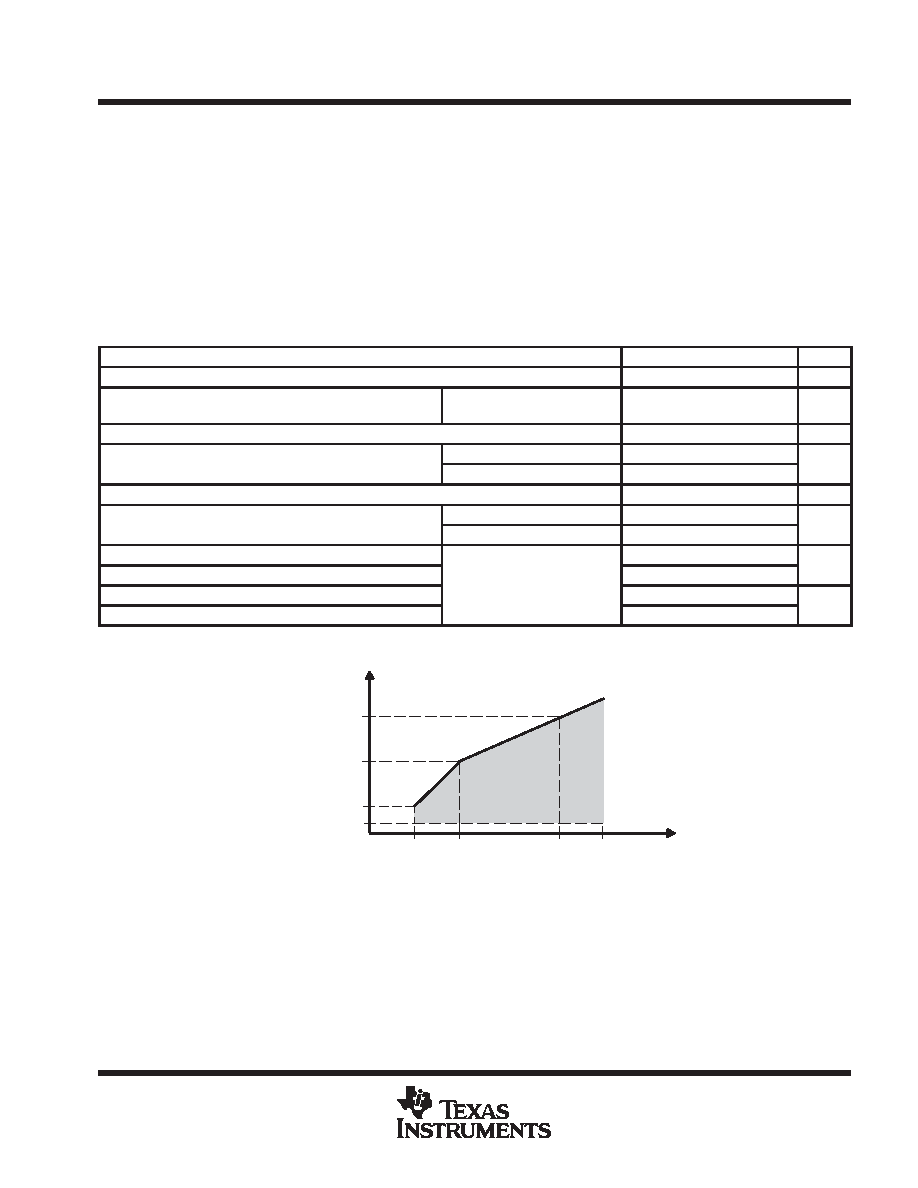

Figure 1. Processor Frequency vs Supply Voltage
