MC-10118B
Data Sheet R19DS0008EJ0700
40
(5) Power supply start-up Timing (PowerOff<- -> Normal)
IO power supply (VIO18,VIO3)
DET1
A_RESETB
(inside PLL)
C32K
Core power supply(V)
PLL power supply(VA1/2/3)
GIO_P0
(1)
(2)(3)
(5)
(4)
Normal
Min:0us
Min:200us
PowerOff
Normal

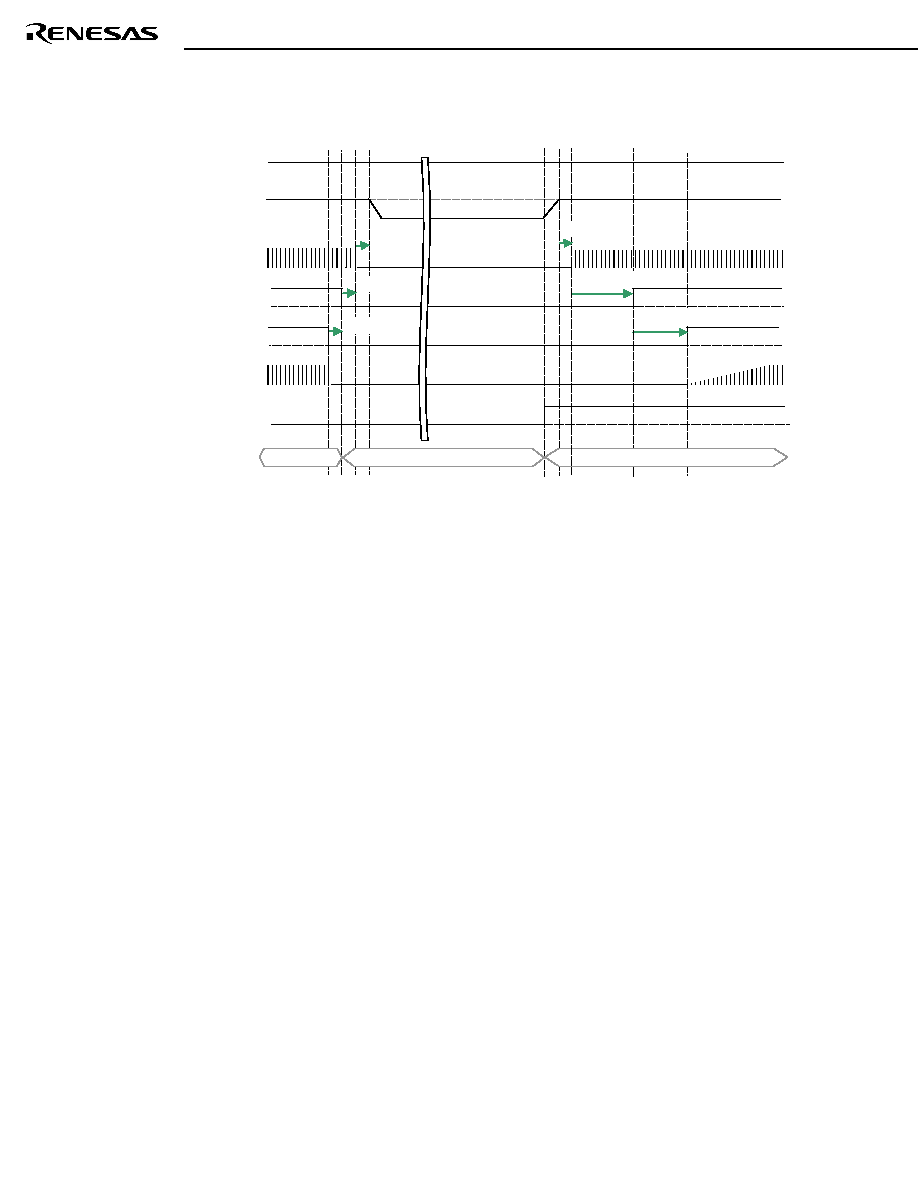

Figure 2-7. PowerOff Normal timing
(1) A_RESETB signal and DET1 signal are falling, and RTC clock (C32K) is stop. Next Core power supply and PLL
power supply are stopped at the same time.
(2) Core power supply (V) and PLL power supply (VA1/2/3) are supplied same time, and stand by until a power
supplies become stable.
(3) RTC clock 32.768kHz (C32K) is input.
GIO_P0 signal rising. It's to make EM1-D512 recognizes that it's different from "Without power supply".
(4) DET1 is signal is started.
(5) A_RESETB signal rising (reset release), and inside PLL begins to oscillate.
