PROFET BTS 740 S2
Semiconductor Group
Page 2
2002-Sep-30

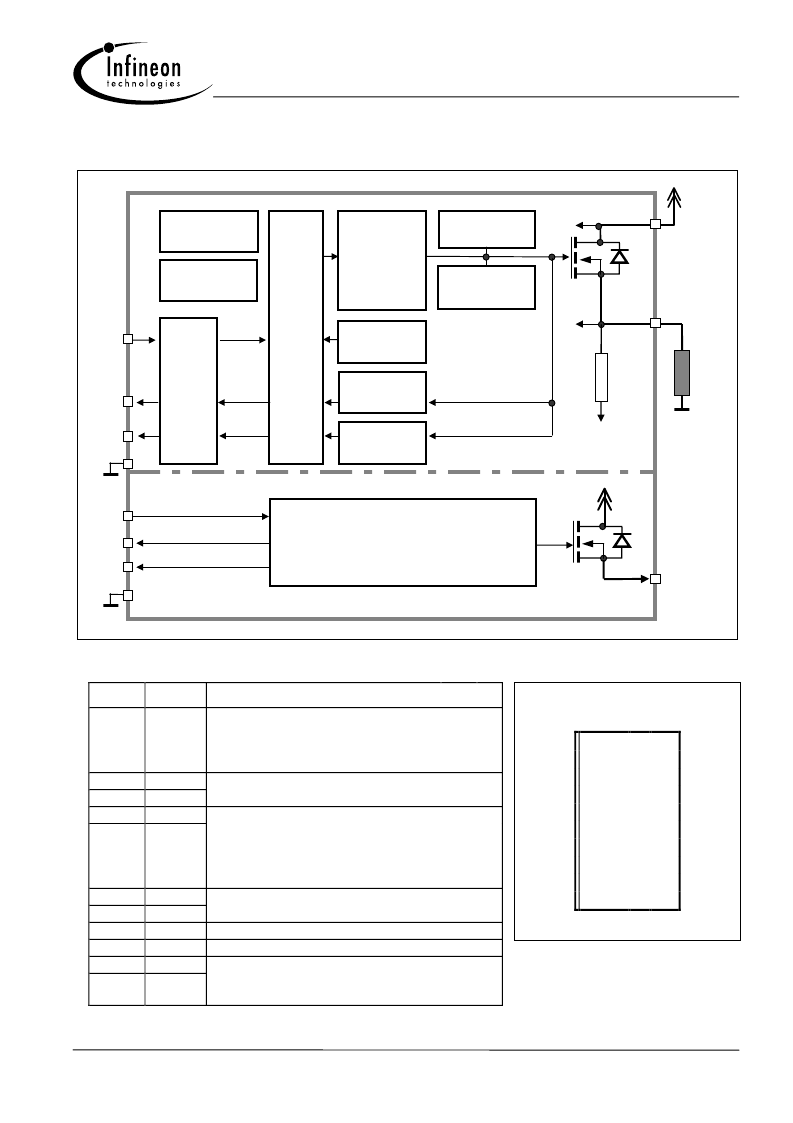

Functional diagram
Pin Definitions and Functions
Pin
1,10,
11,12,
15,16,
19,20
3
7
17,18
13,14
Symbol
V
bb
Function
Positive power supply voltage
. Design the
wiring for the simultaneous max. short circuit
currents from channel 1 to 2 and also for low
thermal resistance
Input 1,2
, activates channel 1,2 in case of
logic high signal
Output 1,2
, protected high-side power output
of channel 1,2. Both pins of each output have
to be connected in parallel for operation
according ths spec (e.g. k
). Design the wiring
for the max. short circuit current
Diagnostic feedback 1,2
of channel 1,2,
open drain, invers to input level
Ground 1
of chip 1 (channel 1)
Ground 2
of chip 2 (channel 2)
Sense current output 1,2;
proportional to the
load current, zero in the case of current
limitation of the load current
IN1
IN2
OUT1
OUT2
4
8
2
6
5
9
ST1
ST2
GND1
GND2
IS1
IS2
Pin configuration
(top view)
V
bb
1
2
3
4
5
6
7
8
9
10
20 V
bb
19 V
bb
18 OUT1
17 OUT1
16 V
bb
15 V
bb
14 OUT2
13 OUT2
12 V
bb
11 V
bb
GND1
IN1
ST1
IS1
GND2
IN2
ST2
IS2
V
bb
OUT1
overvoltage
protection
logic
internal
voltage supply
ESD
temperature
sensor
clamp for
inductive load
gate
control
+
charge
pump
current limit
Open load
detection
ST1
VBB
LOAD
IN1
PROFET
GND1
Control and protection circuit
of
channel 2
IN2
ST2
OUT2
Channel 1
Current
sense
GND2
IS2
IS1
R
O1
GND1
