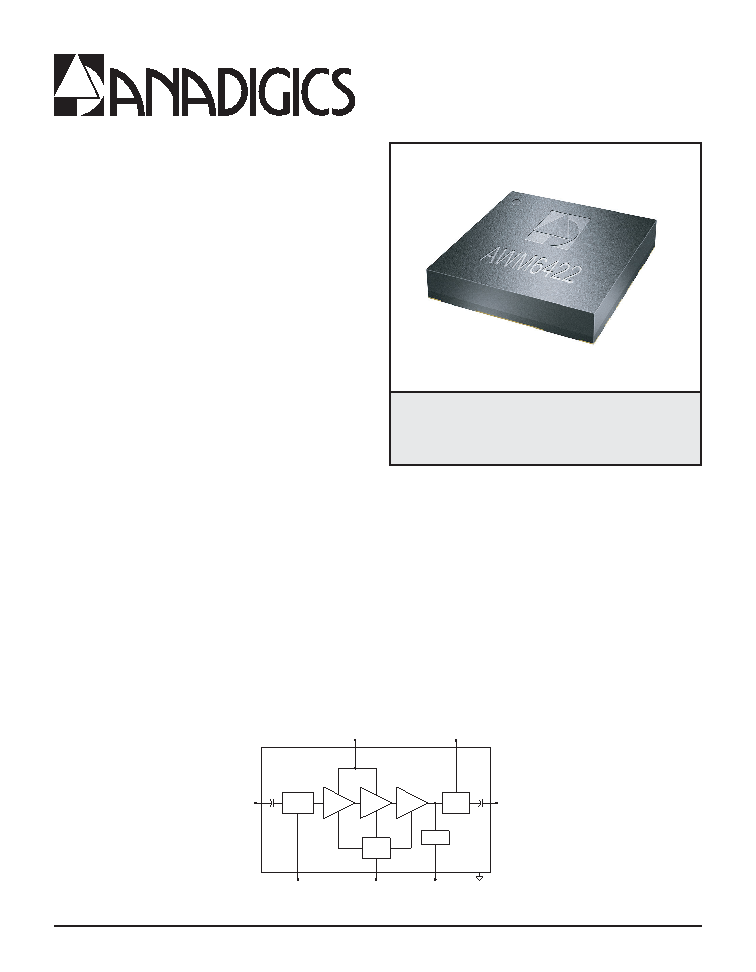

10/2008
AWM6422
2.3-2.4 GHz WiMAX Power Amplifier Module
Data Sheet - Rev 2.2
M18 Package
12 Pin 4.5 mm x 4.5 mm x 1.4 mm
Surface Mount Module
FEATURES
InGaP HBT Technology
> 30 dB Gain
2.5 % EVM at +22 dBm (+3.3 V Supply)
4 % EVM at +23.5 dBm (+3.3 V Supply)
2.5 % EVM at +23.5 dBm (+4.2 V Supply)
4 % EVM at +25 dBm (+4.2 V Supply)
High Efficiency
Integrated 25 dB Attenuator
Integrated Output Power Detector
50 Matched RF Ports for Reduced External
Component Count
RoHS Compliant 4.5 mm x 4.5 mm x 1.4 mm
Surface Mount Module
APPLICATIONS
WiMAX Tranceivers That Support the IEEE
802.16d-2004, IEEE 802.16e-2005, and the
ETSI EN301-021 Wireless standards
PRODUCT DESCRIPTION
The ANADIGICS AWM6422 WiMAX Power Amplifier
is a high performance device that delivers exceptional
linearity and efficiency at high levels of output power.
Designed for portable or mobile applications in the
2.3-2.4 GHz band, it supports the IEEE 802.16e-2005
wireless standard, as well as the IEEE 802.16d-2004
and ETSI EN301-021 standards.
The device requires only a nominal +3.3 V supply and
a low-current bias input. An increase in supply voltage
produces an increase in the maximum linear output
Figure 1: Functional Block Diagram
power. The integrated detector can be used to monitor
output power, and the integrated 25 dB step attenuator
enables gain control. No external circuits are required
for biasing or RF impedance matching, thus reducing
external component costs and facilitating circuit board
designs.
The AWM6422 is manufactured using advanced
InGaP HBT technology that offers state-of-the-art
reliability, temperature stability, and ruggedness. It is
offered in a 4.5 mm x 4.5 mm x 1.4 mm surface mount
module optimized for use in a 50 system.
Step
Attenuator
Power
Detector
Bias
Control
Supply
Voltage
Supply
Voltage
Attenuator
Control
Detector
Ouput
RF Input
RF Output
Matching
Network
Bias
Voltage
Ground
