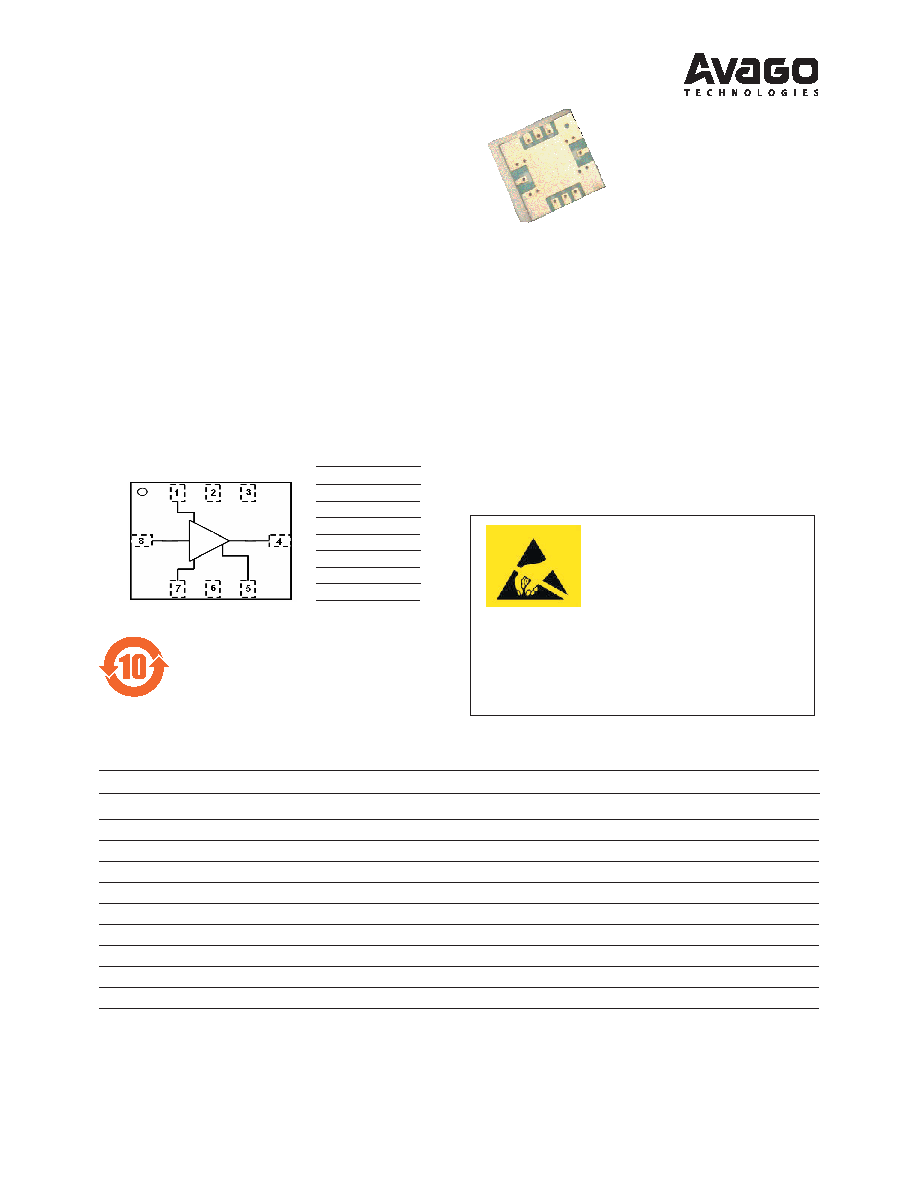

AMMP-5024
30kHz – 40 GHz Traveling Wave Amplifier
Data Sheet
Pin Connections (Top View)
Description
Avago Technologies’ AMMP-5024 is a broadband PHEMT
GaAs MMICTWA designed for medium output power and
high gain over the full 30 KHz to 40 GHz frequency range.
The design employs a 9-stage, cascade-connected FET
structure to ensure flat gain and power as well as uniform
group delay. E-beam lithography is used to produce
uniform gate lengths of 0.15um and MBE technology
assures precise semiconductor layer control.
Features
Surface Mount Package 5.0 x 5.0 x 2.0 mm
Wide Frequency Range 30kHz – 40GHz
High Gain: 14.8 dB Typical @ 22GHz
Output P1dB: 22 dBm Typical @ 22GHz
50 Ohm Input and Output Match
Applications [1]
Broadband Test and Measurement Applications
Notes:
1. Use in hermetic assemblies only.
Table 1. Absolute Maximum Ratings[1]
Symbol
Parameters and Test Conditions
Unit
Minimum
Maximum
Vdd
Positive Drain Voltage
V
-
0
Idd
Total Drain Current
mA
-
380
Vg
First Gate Voltage
V
-9.5
0
Ig
First Gate Current
mA
-38
Vg2
Second Gate Voltage
V
-3.5
4
Ig2
Second Gate Current
mA
-20
-
Pin
CW Input Power
dBm
-
7
Tch
Operating Channel Temperature
°C
-
+50
Tstg
Storage Case Temperature
°C
-65
+50
Tmax
Maximum Assembly Temperature (20 sec max)
°C
-
+260
Note:
1) Operation in excess of any one of these conditions may result in permanent damage to this device. The absolute maximum ratings
for DC and Power parameters were determined at an ambient temperature of 25°C unless noted otherwise.
Pin
Function
Vaux
2
Not Used
3
Not Used
4
RFout /Vdd
5
Vg
6
Not Used
7
Vg2
8
RFin
Attention:
Observe precautions for handling
electrostatic sensitive devices.
ESD Machine Model (Class A): 40V
ESD Human Body Model (Class 0): 50V
Refer to Avago Application Note A004R:
Electrostatic Discharge Damage and Control.
RoHS-Exemption
Please refer to Hazardous substances table on page 11.
