| 型號： | AND0041RM11P8 |
| 廠商： | ANADIGICS INC |
| 元件分類： | 放大器 |
| 英文描述： | 824 MHz - 849 MHz RF/MICROWAVE NARROW BAND HIGH POWER AMPLIFIER |
| 封裝： | 7 X 7 MM, 1.30 MM HEIGHT, ROHS COMPLIANT PACKAGE-18 |
| 文件頁數： | 1/16頁 |
| 文件大?。?/td> | 265K |
| 代理商： | AND0041RM11P8 |
01/2006

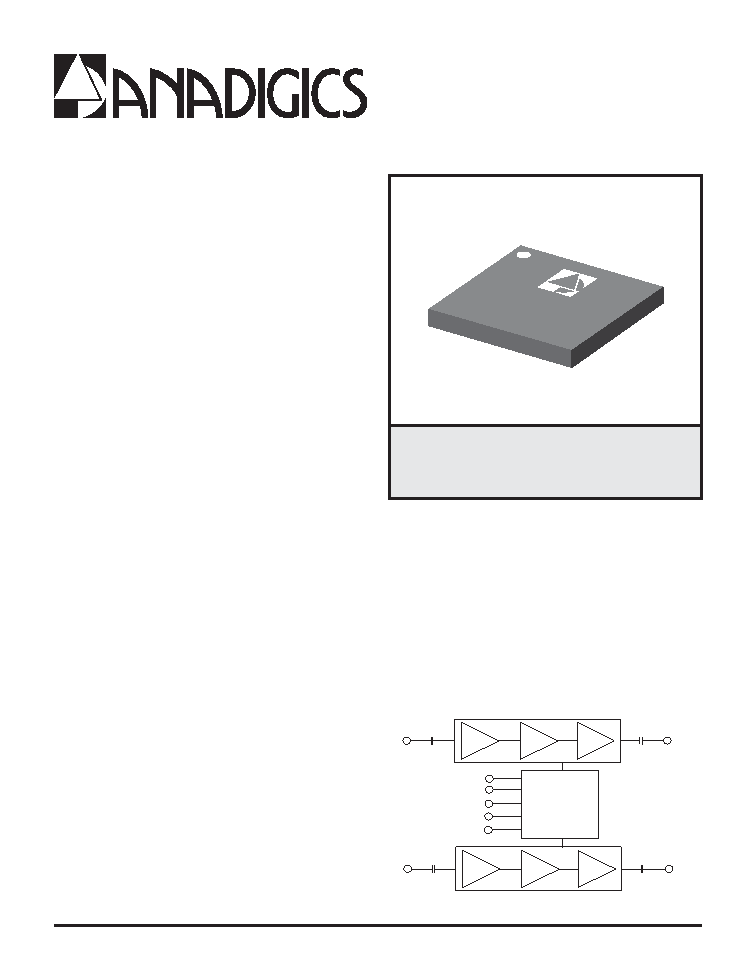

Figure 1: Block Diagram
FEATURES
Internal Reference Voltage
Integrated Power Control Scheme
InGaP HBT Technology
ESD Protection on All Pins (2.5 kV)
Low profile 1.3 mm
Small Package Outline 7 mm x 7 mm
EGPRS Capable (class 12)
RoHS Compliant Package, 250 oC MSL-3
GMSK MODE
Integrated power control (CMOS)
+35.5 dBm GSM850/900 Output Power
+33.5 dBm DCS/PCS Output Power
55 % GSM850/900 PAE
53 % DCS/PCS PAE
Power control range > 50 dB
EDGE MODE
+29 dBm GSM850/900 Output Power
+28.5 dBm DCS/PCS Output Power
25 % GSM850/900 PAE
30 % DCS/PCS PAE
64 dB Typical ACPR (400 kHz)
74 dB Typical ACPR (600 kHz)
APPLICATIONS
Dual/Tri/Quad Band Handsets and PDAs
Dual/Tri/Quad Band Wireless Data Cards
PRODUCT DESCRIPTION
This power amplifier module supports dual, tri and
quad band applications for GMSK and 8-PSK modu-
lation schemes using an open loop polar architec-
ture. There are two amplifier chains, one to support
GSM850/900 bands, the other for DCS/PCS bands.
Each amplification chain is optimized for excellent
EDGE efficiency, power, and linearity in a Polar loop
environment while maintaining high efficiency in the
GSM/GPRS mode.
The module includes an internal reference voltage
and integrated power control scheme for use in both
GMSK and 8-PSK operation. This facilitates fast and
easy production calibration and reduces the num-
ber of external components required to complete a
power control function.
AND0041R
Quad-band GSM/GPRS/Polar EDGE
Power Amplifier Module
with Integrated Power Control
PRELIMINARY DATA SHEET - REV 1.3
GSM850/900_IN
TX_EN
DCS/PCS_IN
GSM850/900_OUT
GSM850/900
Bias/Power
Control
DCS/PCS_OUT
DCS/PCS
BS
VRAMP
VBATT
CEXT
M11 Package
18 Pin 7 mm x 7 mm x 1.3 mm
Surface Mount Module
AND0041R
The amplifier’s power control range is typically 55
dB, with the output power set by applying an analog
voltage to VRAMP. All of the RF ports for this device are
internally matched to 50
.
