μ
PD784044(A), 784046(A)
45

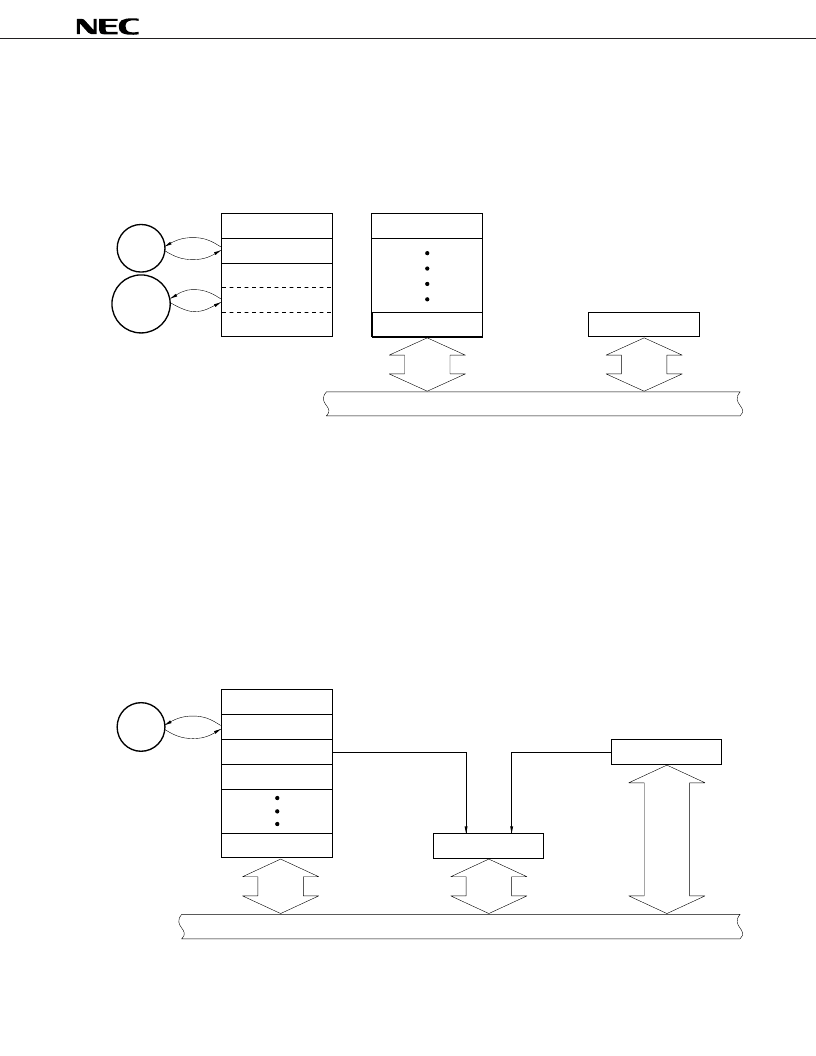

(3) Block transfer mode (with memory pointer): BLKTRS-P
Operation
This is the block transfer mode in (2) with a memory pointer (MEM.PTR) appended. The
appended buffer area of MEMP can be freely set on the memory space.
Remark
MEM.PTR is auto-incremented (+1: byte data transfer/+2: word data transfer) each time the
macro service has been executed.
Application example:
Measurement of period and pulse width by capture register of timer 0
MSC
SFRP
_1
Buffer N
Buffer 1
SFR
Internal bus
+1 / +2
MEM.PTR
Application example:
Same as (2)
(4) Data differential mode: DTADIF
Operation
(a) Calculates the difference between the contents of the SFR specified by SFR pointer
(SFR.PTR) (current value) and the contents of the SFR loaded to the last data buffer (LDB).
(b) Stores the result of the calculation to a predetermined buffer area.
(c) Stores the contents of the current value of SFR to LDB.
(d) The number of times the data is to be transferred (block size) is specified by MSC. The
value of MSC is auto-decremented (–1) each time the macro service has been executed.
(e) When the value of MSC has reached 0, a vectored interrupt request is generated.
Remark
The differential calculation can be performed only an SFR of 16-bit configuration.
MSC
SFR.PTR
_1
Buffer N
Buffer 1
SFR
Internal bus
Differential calculation
LDB
