Z90255 ROM and Z90251 OTP
32 KB Television Controller with On-Screen Display
1
OVERVIEW
The Z90255 and Z90251 are the ROM and OTP versions of a Television Controller with
On-Screen Display (OSD) that contains 32 KB of program memory.
The
or prototypes for specific television applications or initial limited production.
Program ROM and Character Generation ROM (CGROM) in the Z90251 are both
programmable.
The Z90251 requires Zilog’s Z90259ZEM Emulator with its proprietary Zilog
Developmental Studio (ZDS) software for programing. To view how code is
working, the emulator uses a ZOSD board which connects directly to a television
screen. Refer to Figure 1.
Z90251
is the one-time programmable (OTP) controller used to develop code

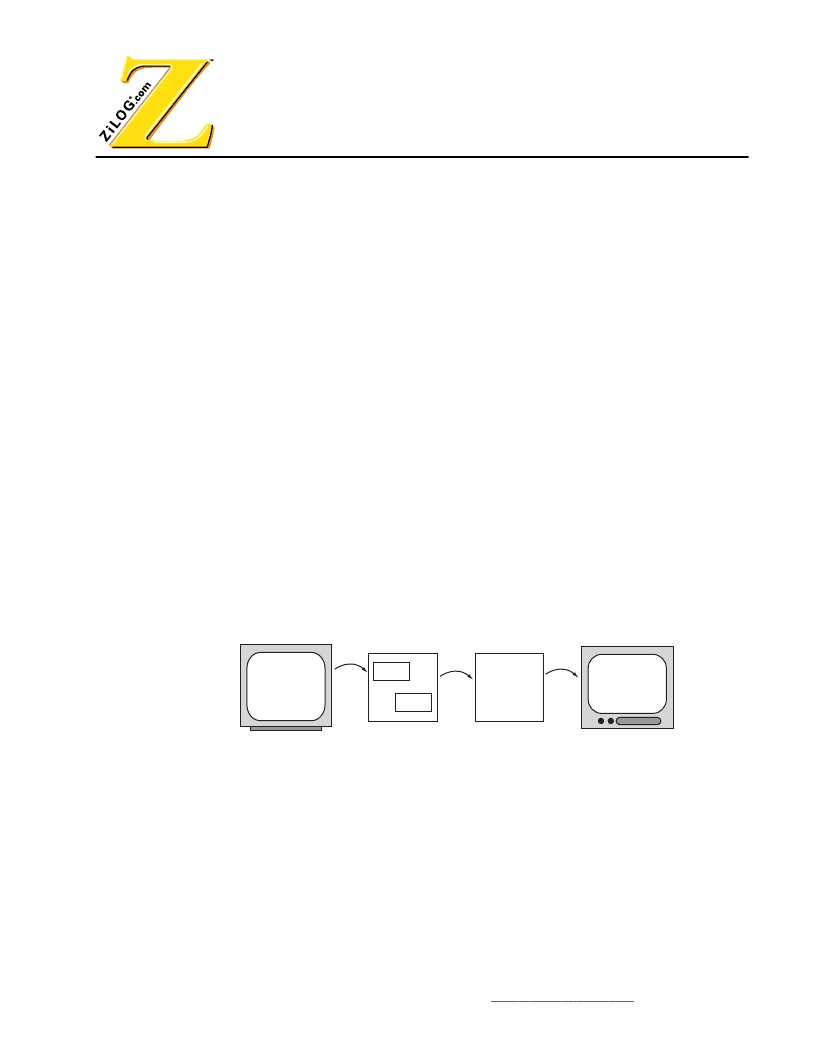

Figure 1
Code Development Environment
The
Z90251. Customer code is masked into both program ROM and CGROM.
Z90255
incorporates the ROM code developed by the customer with the
Develop
code on PC
Z90259
Z90251
Z90259 In-Circuit
Emulator (ICEbox)
ZOSD Board
Converts to
Video Display
Download Code to
Z90259 ICE chip
Program the
Z90251 OTP
Review Code
on TV Display
