10
TS8308500
2193A–BDC–04/03
Explanation of
Test Levels
Note:
1. Unless otherwise specified, all tests are pulsed tests : therefore TC = TA where TC and TA are
case and ambient temperature.
2. Refer to “Ordering Information” on page 48.
3. Only min and max values are guaranteed (typical values are issued from characterization
results).
Functions
Description

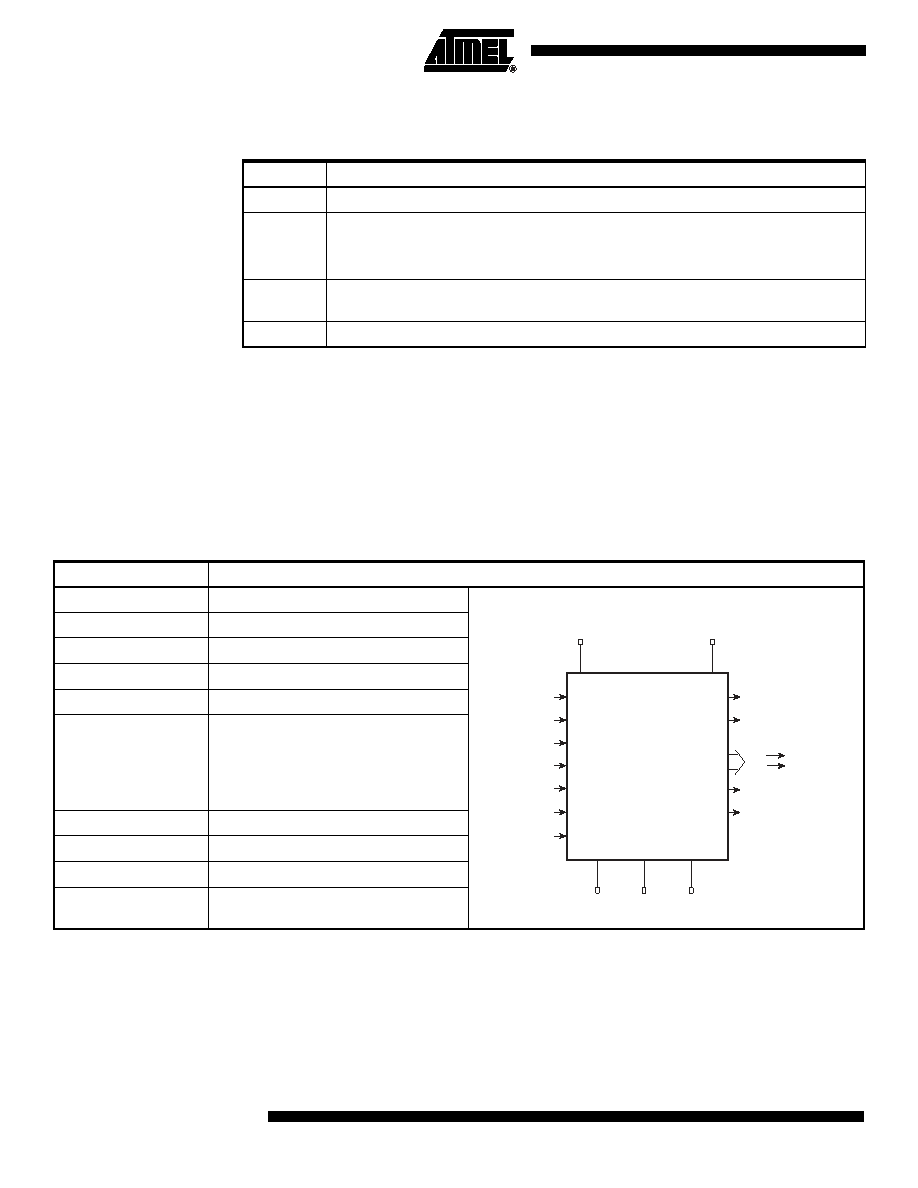

Table 4. Explanation of Test Levels(3)
Num
Characteristics
1
100% production tested at +25
°C(1) (for “C” Temperature range(2))
2
100% production tested at +25
°C(1), and sample tested at specified temperatures
(for “V” Temperature range
(2))
3
Sample tested only at specified temperatures
4
Parameter is guaranteed by design and characterization testing (thermal steady-state
conditions at specified temperature)
5
Parameter is a typical value only
Table 5. Functions Description
Name
Function
V
CC
Positive power supply
V
EE
Analog negative power supply
V
PLUSD
Digital positive power supply
GND
Ground
V
IN, VINB
Differential analog inputs
CLK, CLKB
Differential clock inputs
<D0:D7>
<D0B:D7B>
Differential output data port
DR, DRB
Differential data ready outputs
OR, ORB
Out of range outputs
GAIN
ADC gain adjust
GORB
Gray or binary digital output select
DIOD/DRRB
Die junction temperature measurement/
asynchronous data ready reset
V
IN
V
INB
CLK
CLKB
D0
D7
D0B
D7B
16
DVEE = -5V
VCC = +5V
VPLUSD = +0V (ECL)
VPLUSD = +2.4V (LVDS)
TS8308500
VEE = -5V
GND
GAIN
GORG
DIOD/
DRRB
OR
ORB
DR
DRB
