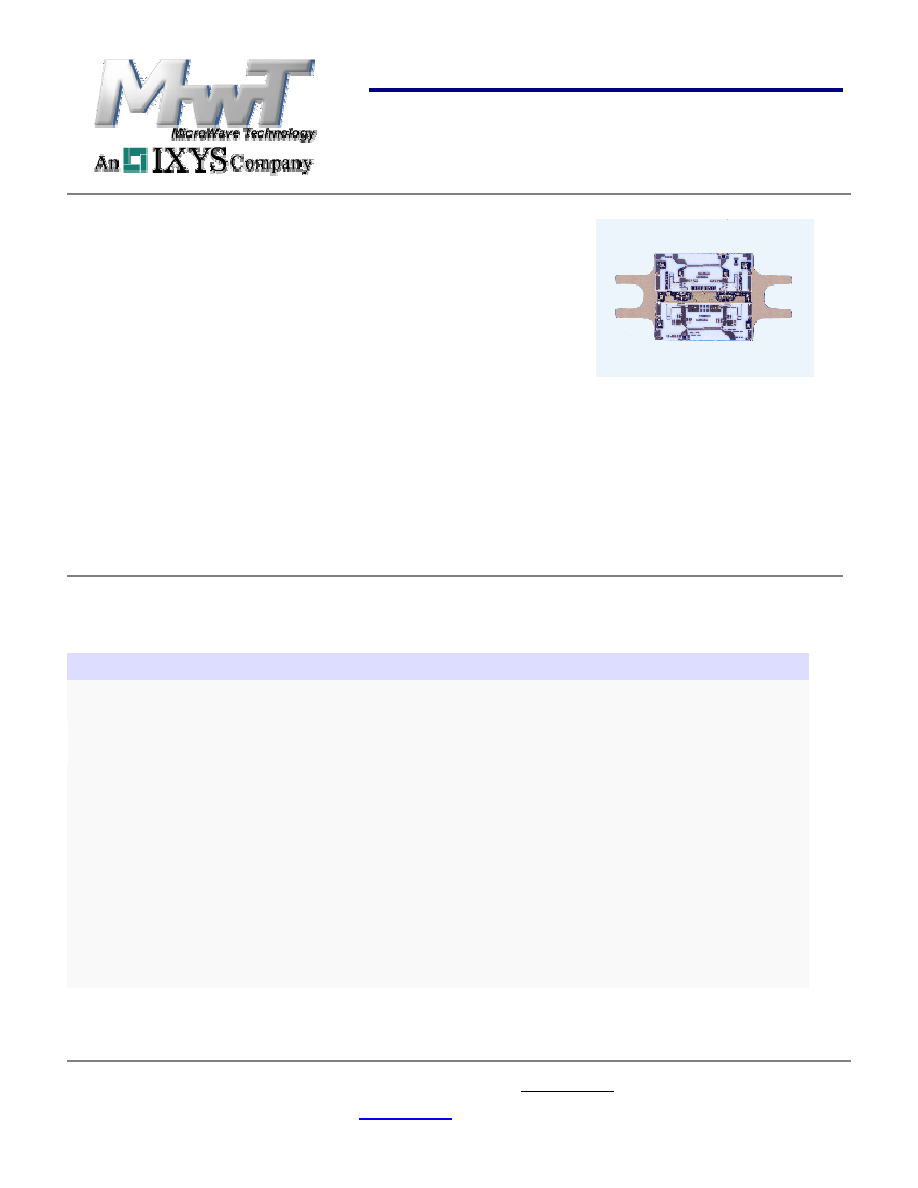

MwT-0206S-A9N2/0206Z-A9N2
2.0 – 6.0 GHz Low Noise Amplifier Module
Preliminary Data Sheet
June 2007
MicroWave Technology, Inc. an IXYS Company, 4268 Solar Way, Fremont, CA 94538
510-651-6700
FAX
510-651-2208 WEB www.mwtinc.com
Data contained herein is subject to change without notice. All rights reserved 2007
Please visit MwT website www.mwtinc.com for information on other MwT MMIC products.
Page 1 of 3, Updated 6/07
Features:
1.0 dB Typ Noise Figure
15 dB Typ Small Signal Gain
15 dBm Typ P1dB
1.7:1 Typ VSWR
Description:
The MwT-0206S-A9N2/0206Z-A9N2 is a low noise open-carrier amplifier module operating between 2 and 6 GHz.
Its input and output ports are matched to 50 impedance. The substrates for the input and the output matching
circuits are ceramic. They are mounted on metal carriers. The module can be easily mounted onto the housing of a
connectorized amplifier. The noise figure is 1.0 dB. Typical small signal gain is 15 dB. The power output at 1dB
compression point is 15 dBm. The input and the output VSWR are 1.7:1.
Electrical Specifications: Vds=8.0V, Ta=25 °C, Z0=50 ohm
SYMBOL
PARAMETERS
Unit
Min
Typ
Max
FREQ
Frequency Range
GHz
2.0
6.0
SSG
Small Signal Gain
dB
12.5
15.0
Noise Figure, 2 - 6 GHz
dB
1.0
1.4
NF
Noise Figure, 3 – 5 GHz
dB
0.9
1.2
GOF
SSG Flatness
+/- dB
2.0
2.5
GOT
SSG Variation over Temperature
dB/°C
-0.012
P-1dB
Output Power at 1 dB Compression
dBm
13.0
15.0
PSAT
Output Power at 6 dB Compression
dBm
18.0
P-1/T
P-1dB Variation over Temperature
dB/°C
-0.008
IP3
Third Order Intercept Point
dBm
25.0
2
nd HAR
2
nd Harmonic @ Pout=15 dBm
dBc
-21
VSWR
Input/Output VSWR
--
1.7:1
2.0:1
ISO
Reverse Isolation
dB
-17.0
VDD
Power Supply Voltage
+V
7.9
8.0
8.1
IDD
Small Signal Module Current
mA
50
70
