MSP430C33x, MSP430P337A
MIXED SIGNAL MICROCONTROLLERS
SLAS227A – OCTOBER 1999 – REVISED JUNE 2000
34
POST OFFICE BOX 655303
DALLAS, TEXAS 75265

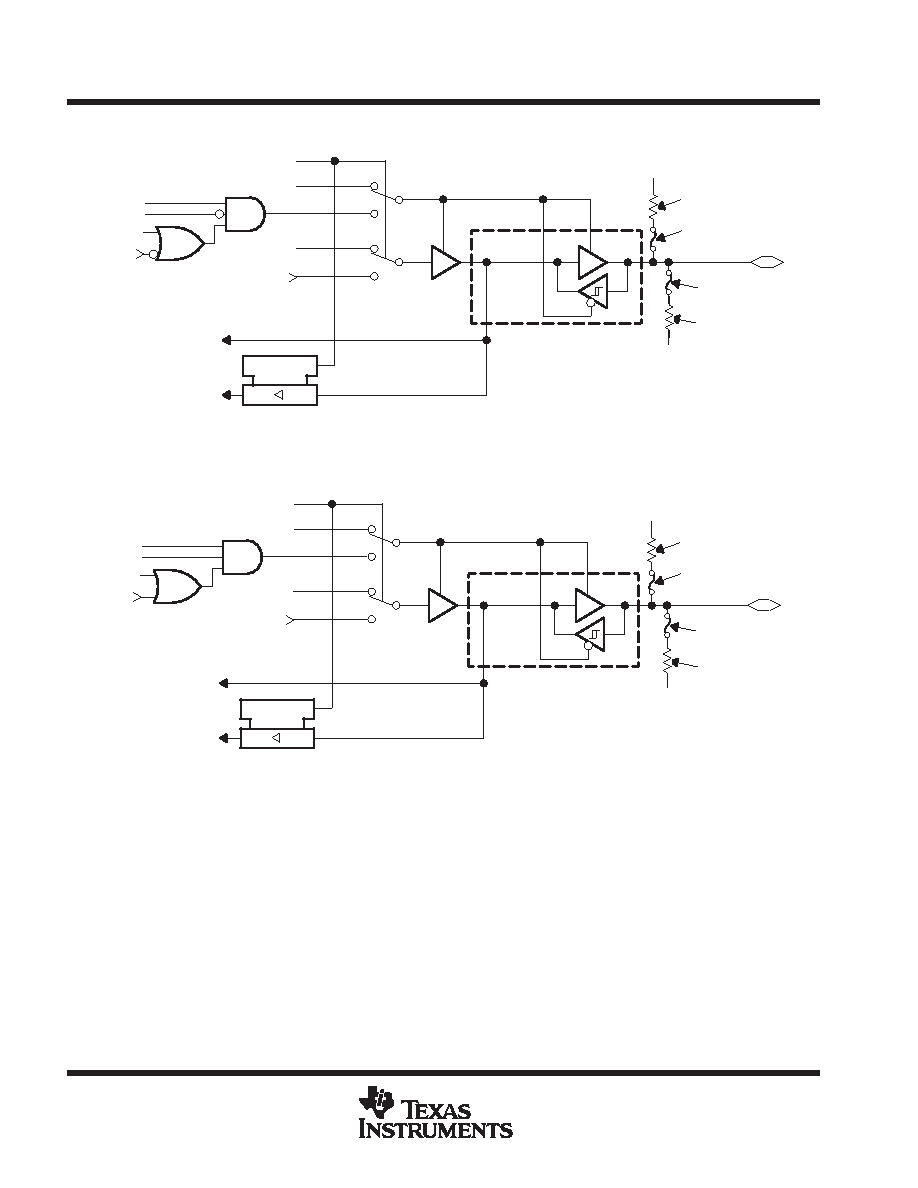

typical input/output schematics (continued)
(see Note A)
(see Note B)
(see Note A)
(see Note B)
VCC2
VSS3
Pad Logic
P4.4/SOMI
P4DIR.4
P4OUT.4
P4IN.4
0: Input
1: Output
P4SEL.4
(SO) MI From USART
0
1
0
1
D
EN
SYNC
MM
STC
STE
(SO) MI To USART
DCM_SIMO
A. Optional selection of pullup or pulldown resistors available on ROM (masked) versions.
B. Fuses for the optional pullup and pulldown resistors can only be programmed at the factory.
Figure 16. Port P4, P4.4, Input/Output With Schmitt-Trigger
(see Note D)
(see Note E)
(see Note D)
DVCC
DVSS
Pad Logic
P4.5/UCLK
P4DIR.5
P4OUT.5
P4IN.5
0: Input
1: Output
P4SEL.5
UCLK From USART
0
1
0
1
D
EN
SYNC
MM
STC
STE
UCLK To USART
DCM_UCLK
Figure 17. Port P4, P4.5, Input/Output With Schmitt-Trigger
NOTES: A. UART mode: The clock can only be input if UART mode and UART function is selected, the direction of P4.5/UCLK is always input.
B. SPI, slave mode: The clock to UCLK is used to shift data in and out.
C. SPI, master mode: The clock shift data in and out is supplied on pin P4.5/UCLK for connected devices (in slave mode)
D. Optional selection of pullup or pulldown resistors available on ROM (masked) versions.
E. Fuses for the optional pullup and pulldown resistors can only be programmed at the factory.
