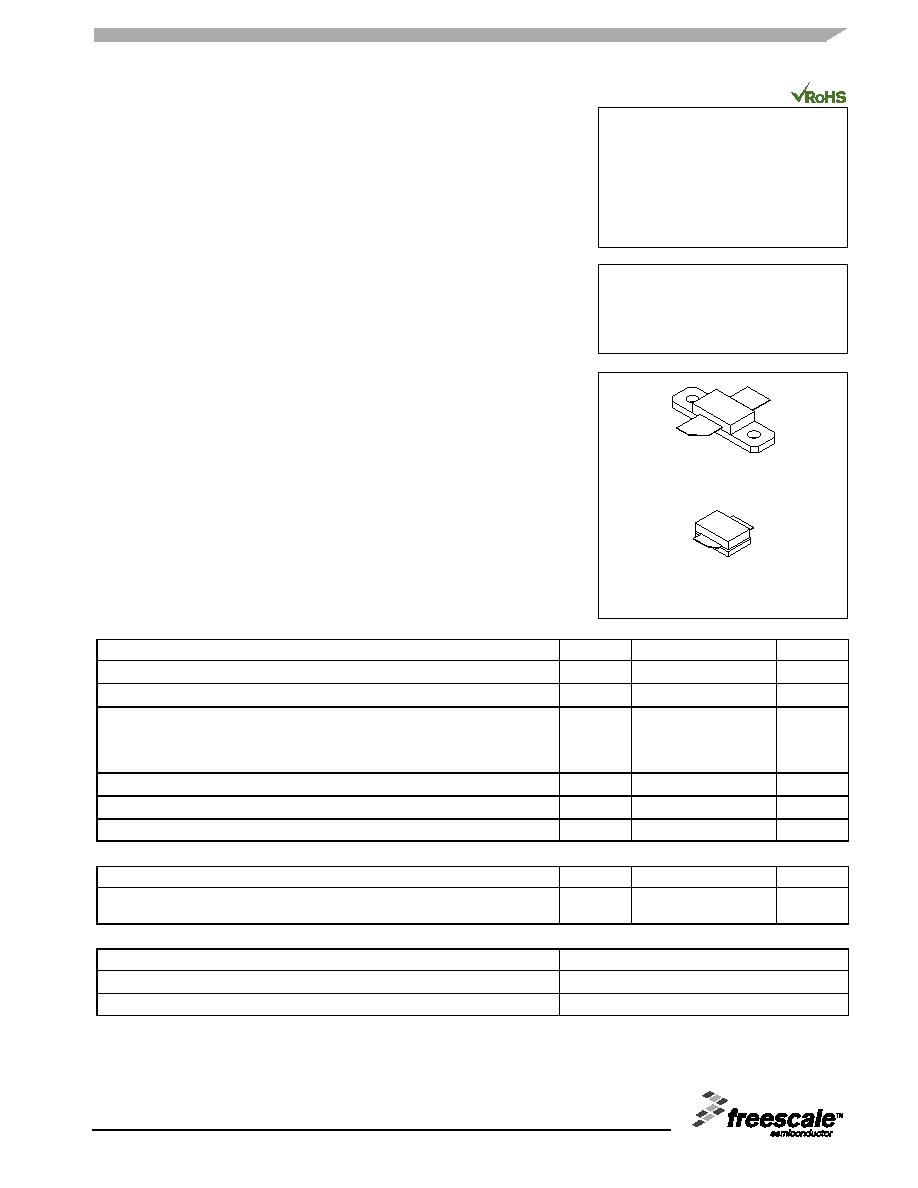

MRF9030LR1 MRF9030LSR1
1
RF Device Data
Freescale Semiconductor
RF Power Field Effect Transistors
N-Channel Enhancement-Mode Lateral MOSFETs
Designed for broadband commercial and industrial applications with frequen-
cies up to 1000 MHz. The high gain and broadband performance of these
devices make them ideal for large-signal, common-source amplifier applica-
tions in 26 volt base station equipment.
Typical Two-Tone Performance at 945 MHz, 26 Volts
Output Power — 30 Watts PEP
Power Gain — 19 dB
Efficiency — 41.5%
IMD — -32.5 dBc
Capable of Handling 10:1 VSWR, @ 26 Vdc, 945 MHz, 30 Watts CW
Output Power
Features
Integrated ESD Protection
Designed for Maximum Gain and Insertion Phase Flatness
Excellent Thermal Stability
Characterized with Series Equivalent Large-Signal Impedance Parameters
Low Gold Plating Thickness on Leads. L Suffix Indicates 40μ″ Nominal.
RoHS Compliant
In Tape and Reel. R1 Suffix = 500 Units per 32 mm, 13 inch Reel.
Table 1. Maximum Ratings
Rating
Symbol
Value
Unit
Drain-Source Voltage
VDSS
- 0.5, +68
Vdc
Gate-Source Voltage
VGS
- 0.5, +15
Vdc
Total Device Dissipation @ TC = 25°C
MRF9030LR1
Derate above 25°C
MRF9030LSR1
PD
92
0.53
117
0.67
W
W/°C
Storage Temperature Range
Tstg
- 65 to +150
°C
Case Operating Temperature
TC
150
°C
Operating Junction Temperature
TJ
200
°C
Table 2. Thermal Characteristics
Characteristic
Symbol
Value
Unit
Thermal Resistance, Junction to Case
MRF9030LR1
MRF9030LSR1
RθJC
1.9
1.5
°C/W
Table 3. ESD Protection Characteristics
Test Conditions
Class
Human Body Model
1 (Minimum)
Machine Model
M1 (Minimum)
Document Number: MRF9030
Rev. 6, 4/2006
Freescale Semiconductor
Technical Data
MRF9030LR1
MRF9030LSR1
945 MHz, 30 W, 26 V
LATERAL N-CHANNEL
BROADBAND
RF POWER MOSFETs
CASE 360B-05, STYLE 1
NI-360
MRF9030LR1
CASE 360C-05, STYLE 1
NI-360S
MRF9030LSR1
