MFRC522_35
All information provided in this document is subject to legal disclaimers.
NXP B.V. 2010. All rights reserved.
Product data sheet
PUBLIC
Rev. 3.5 — 21 June 2010
112135
20 of 92
NXP Semiconductors
MFRC522
Contactless reader IC
8.1.4.8
High-speed mode
In High-speed mode (HS mode), the device can transfer information at data rates of up to
3.4 Mbit/s, while remaining fully downward-compatible with Fast or Standard mode
(F/S mode) for bidirectional communication in a mixed-speed bus system.
8.1.4.9
High-speed transfer
To achieve data rates of up to 3.4 Mbit/s the following improvements have been made to
I
2
C-bus operation.
The inputs of the device in HS mode incorporate spike suppression, a Schmitt trigger
on the SDA and SCL inputs and different timing constants when compared to
F/S mode
The output buffers of the device in HS mode incorporate slope control of the falling
edges of the SDA and SCL signals with different fall times compared to F/S mode
8.1.4.10
Serial data transfer format in HS mode
The HS mode serial data transfer format meets the Standard mode I
2
C-bus specification.
HS mode can only start after all of the following conditions (all of which are in F/S mode):
1. START condition (S)
2. 8-bit master code (00001XXXb)
3. Not-acknowledge bit (A)
When HS mode starts, the active master sends a repeated START condition (Sr) followed
by a 7-bit slave address with a R/W bit address and receives an acknowledge bit (A) from
the selected MFRC522.
Data transfer continues in HS mode after the next repeated START (Sr), only switching
back to F/S mode after a STOP condition (P). To reduce the overhead of the master code,
a master links a number of HS mode transfers, separated by repeated START conditions
(Sr).

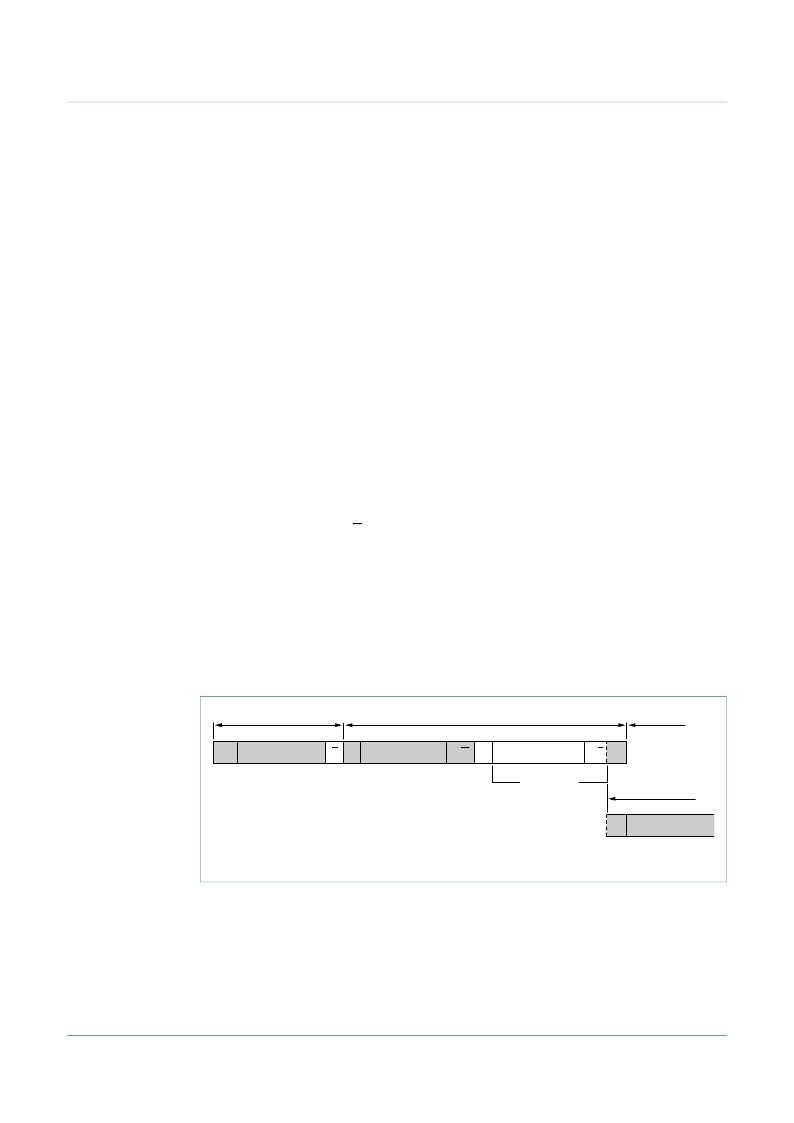

Fig 18. I
2
C-bus HS mode protocol switch
F/S mode
HS mode (current-source for SCL HIGH enabled)
F/S mode
001aak749
A
A
A/A
DATA
(n-bytes + A)
S
R/W
MASTER CODE
Sr SLAVE ADDRESS
HS mode continues
Sr
SLAVE ADDRESS
P
