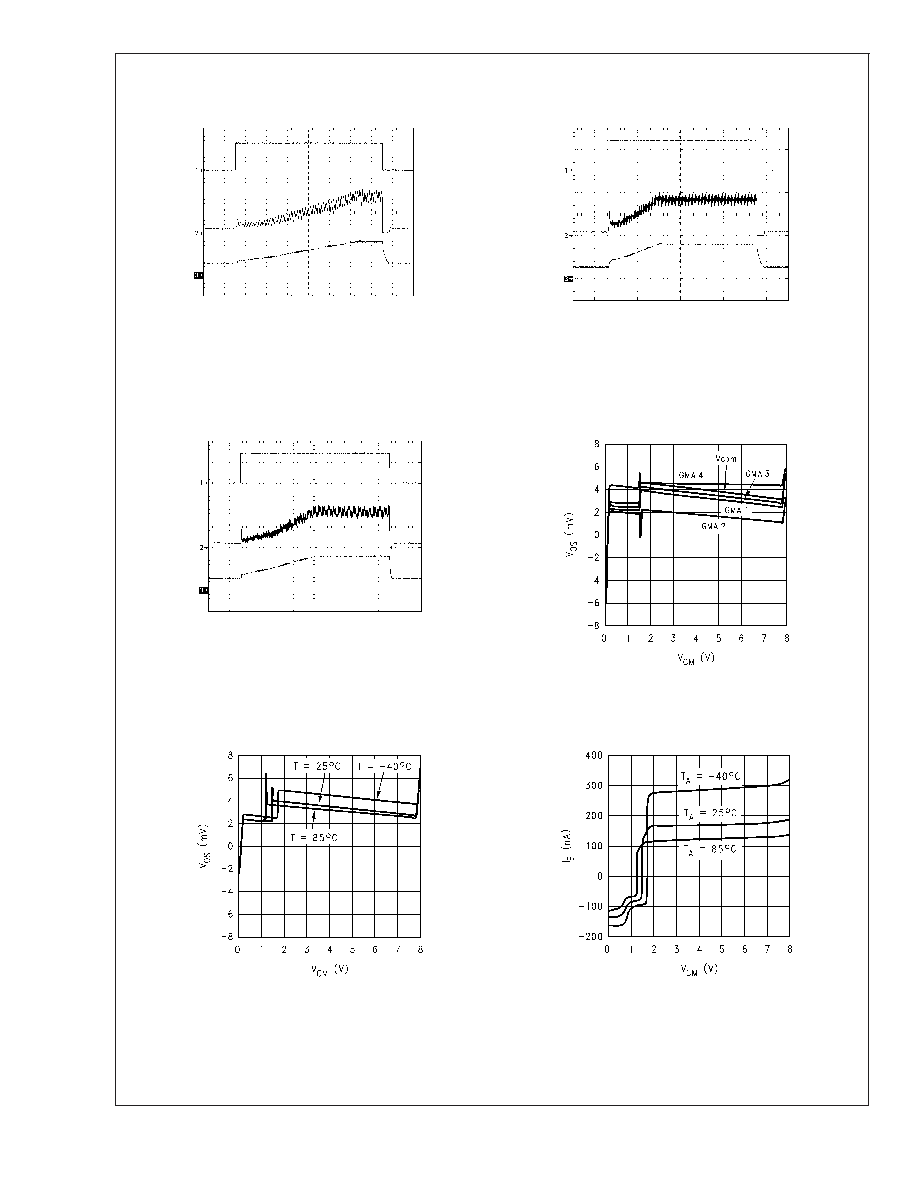

Typical Performance Characteristics (Continued)
Internal Soft Start
20043479
VOUT = 8V, VIN = 3V, RLOAD =27,CSS = none, F = 600kHz
1) SHDN, 1V/div, DC
2) IL, 500mA/div, DC
3) VOUT, 5V/div, DC
T = 1ms/div
20043477
VOUT = 8V, VIN = 3V, RLOAD =27,CSS = none, F = 1.25MHz
1) SHDN, 1V/div, DC
2) IL, 500mA/div, DC
3) VOUT, 5V/div, DC
T = 1ms/div
External Soft Start
Input Offset Voltage vs. Common Mode Voltage
(3 units)
20043478
VOUT = 8V, VIN = 3V, RLOAD =27,CSS = 330nF, F = 1.25MHz
1) SHDN, 1V/div, DC
2) IL, 500mA/div, DC
3) VOUT, 5V/div, DC
T = 4ms/div
20043461
Input Offset Voltage vs. Common Mode Voltage
(Over Temperature)
Input Bias Current vs. Common Mode Voltage
20043462
20043463
LM2710
