FAN8702/FAN8702B/FAN8702MP
14

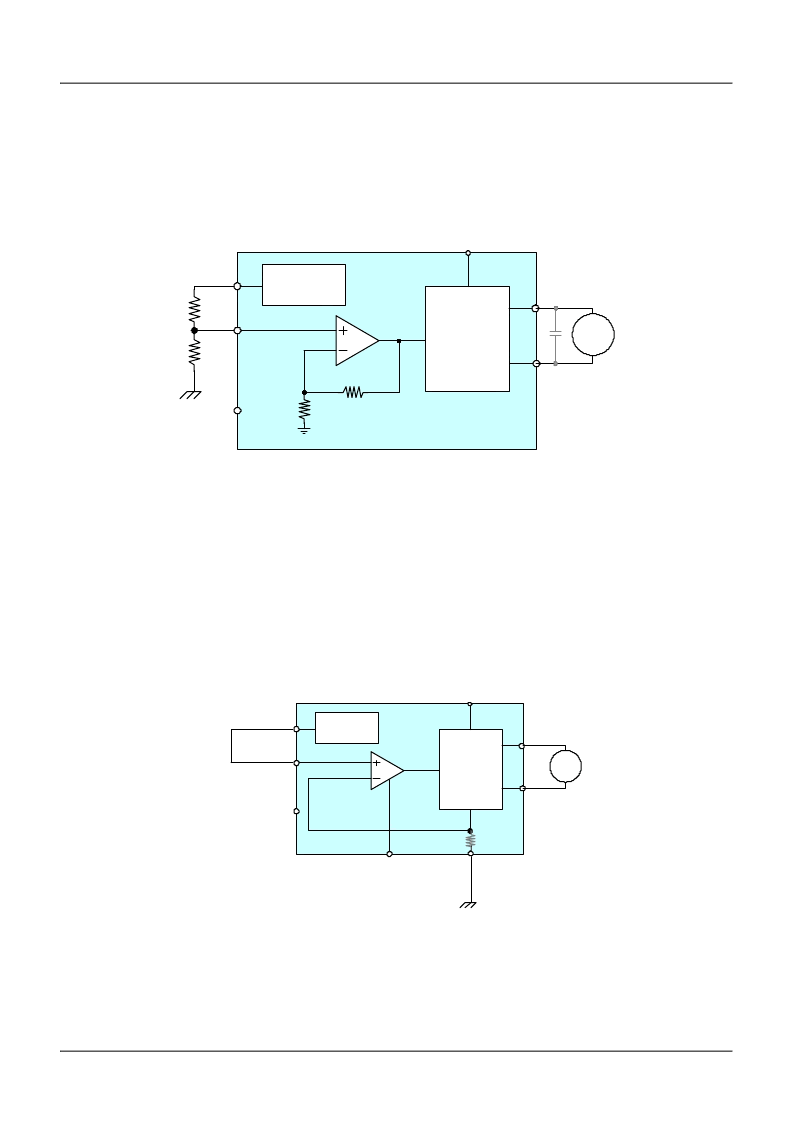

4. Voltage Drive Block
The output voltage as much as 5 times the input voltage VC1,VC2 is produced in the range of motor power VB1/VB2.
If output oscillation occur during constant voltage drive, then 0.01uF~0.1uF capacitor should be installed on the both sides of
the output.
5. H-Bridge Drive Mode
A H-bridge drive mode can be implemented using the current drive block or the voltage drive block.
1) H- bridge drive using current drive block
The current drive block using the H-bridge method can be operated with ISH/AE connected to VREF or supply input, with the
FC terminal open and sensing terminal connected to ground.
H-BRIDGE
1,2,3,4
M
Reference
Out
VC1 /
VC2
VREF
OUT_A
OUT_B
VB1 VB2
R
4R
IN1~IN8
H-BRIDGE
5,6
M
Reference
Out
ISH / IAE
VREF
FC
RFG
OUT_A
OUT_B
VCC1 VCC2
RW
IN9~IN12
