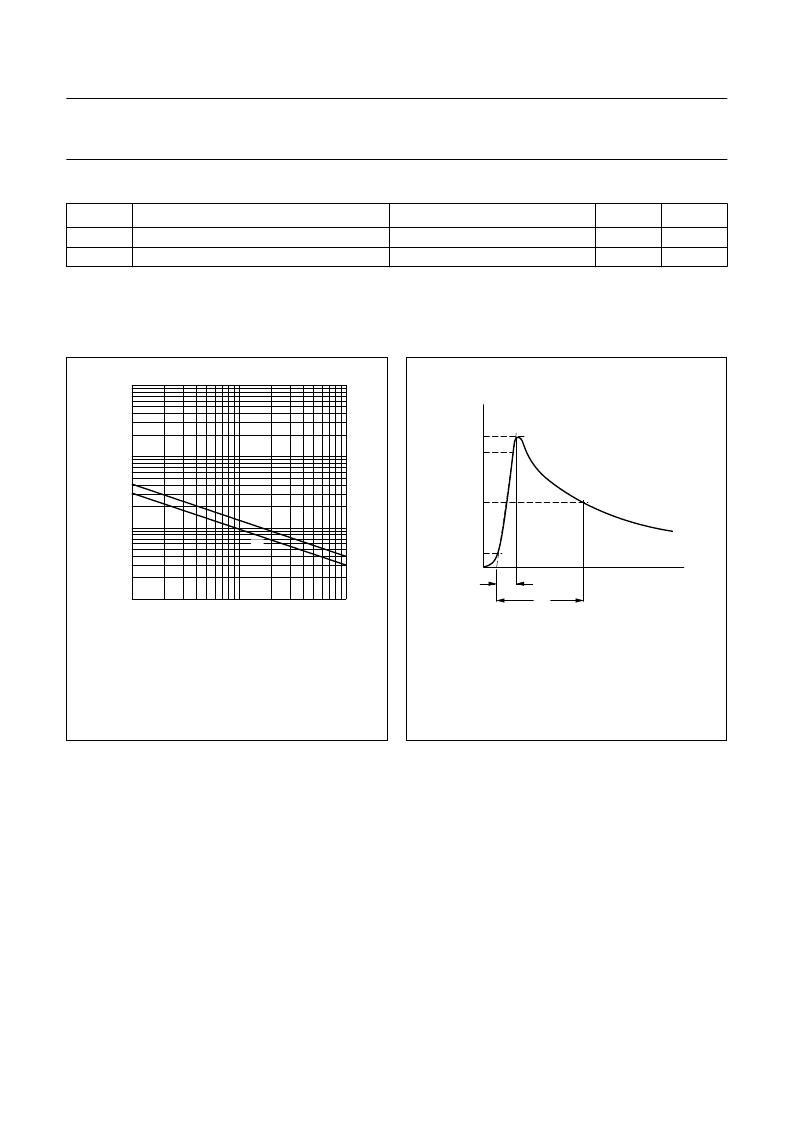

1996 Apr 26
3
Philips Semiconductors
Product specification
Bidirectional voltage regulator diode
BZV37
THERMAL CHARACTERISTICS
Note
1.
Device mounted on a printed circuit-board without metallization pad.
SYMBOL
PARAMETER
CONDITIONS
VALUE
UNIT
R
th j-tp
R
th j-a
thermal resistance from junction to tie-point
thermal resistance from junction to ambient
lead length 8 mm
lead length max.; note 1
300
380
K/W
K/W
GRAPHICAL DATA
Fig.2
Maximum permissible non-repetitive
peak reverse power dissipation
versus duration.
handbook, halfpage
MBG801
3
1
duration (ms)
PZSM
(W)
10
10
2
10
1
10
1
(1)
(2)
(1) T
j
= 25
°
C (prior to surge).
(2) T
j
= 150
°
C (prior to surge).
Fig.3
Current pulse according to IEC 60-2,
Section 6.
handbook, halfpage
MLC733
t1
t2
t
10
50
90
100
(%)
