參數資料
| 型號： | APS3605RS26Q1 |
| 廠商： | ANADIGICS INC |
| 元件分類： | 分路器/合路器 |
| 英文描述： | 50 MHz - 1000 MHz RF/MICROWAVE SPLITTER |
| 封裝： | 3 X 3 MM, 1 MM HEIGHT, ROHS COMPLIANT, MO-220, S26, QFN-12 |
| 文件頁數： | 5/12頁 |
| 文件大?。?/td> | 355K |
| 代理商： | APS3605RS26Q1 |
2

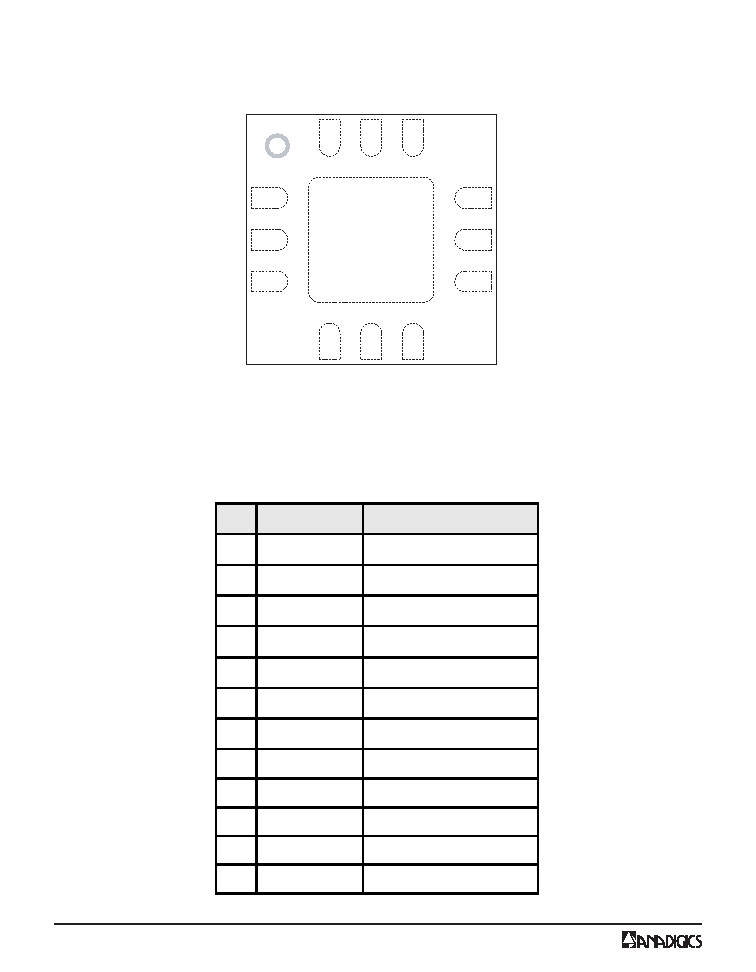

PRELIMINARY DATA SHEET - Rev 1.4
07/2008
APS3605
Table 1: Pin Description
Figure 2: Pinout (X-ray Top View)
RFIN
GND
G
N
D
IA
D
J
R
F
O
U
T3
R
F
O
U
T1
G
N
D
G
N
D
GND
RFOUT2
1
4
9
8
7
3
2
5
6
10
11
12
GND Paddle
PIN
NAME
DESCRIPTION
1
GND
Ground
2
RFIN
RFInput
3
GND
Ground
4
IADJ
CurrentAdjust
5
GND
Ground
6
RFOUT3
RFOutput3
7
GND
Ground
8
RFOUT2
RFOutput2
9
GND
Ground
10
RFOUT1
RFOutput1
11
GND
Ground
12
GND
Ground
