04/2008
S3 Package
Modified 16 Pin SOIC
ABA3100
1 GHz Balanced Low Noise
Linear Amplifier
Data Sheet - Rev 2.6

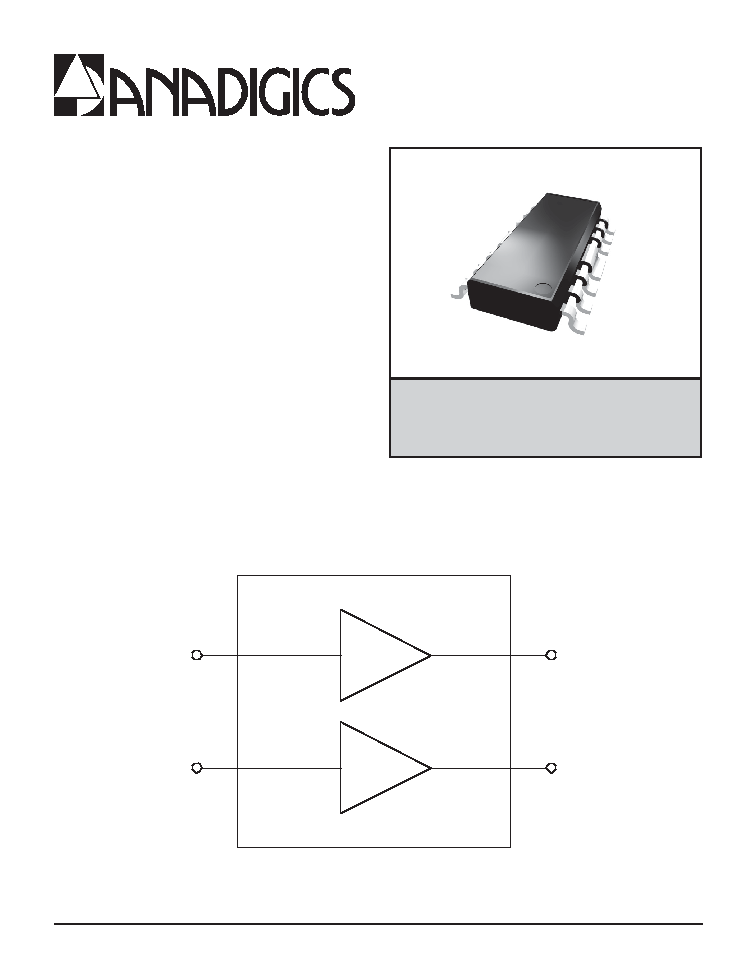

Figure 1: Block Diagram
featureS
12 dB Gain
+5 V Nominal Supply Voltage
High Linearity
Low Noise Figure: 2.7 dB (typ)
Characterized at +25 dBmV output power
Wide Band operation to beyond 1 GHz
-40 to +85 °C
RoHS-Compliant Package Option
APPlICAtIOnS
Driver Amplifier
CATV - Distribution / Drop Amplifiers
Set Top Boxes
Home Gateway
PRODUCt DESCRIPtIOn
The ABA3100 is a monolithic IC intended for use in
applications requiring high linearity, such as Cellular
Telephone Base Station Driver Amplifiers, CATV Fi-
ber Receiver and Distribution Amplifiers, CATV Drop
Amplifiers, CATV Set Top Boxes and Home Gateways.
Offered in a modified 16 lead surface mount SOIC
package, it is well suited for use in amplifiers where
small size, reduced component count, and high reli-
ability are important.
12 dB
RF
IN
RF
IN
RF
OUT
RF
OUT
