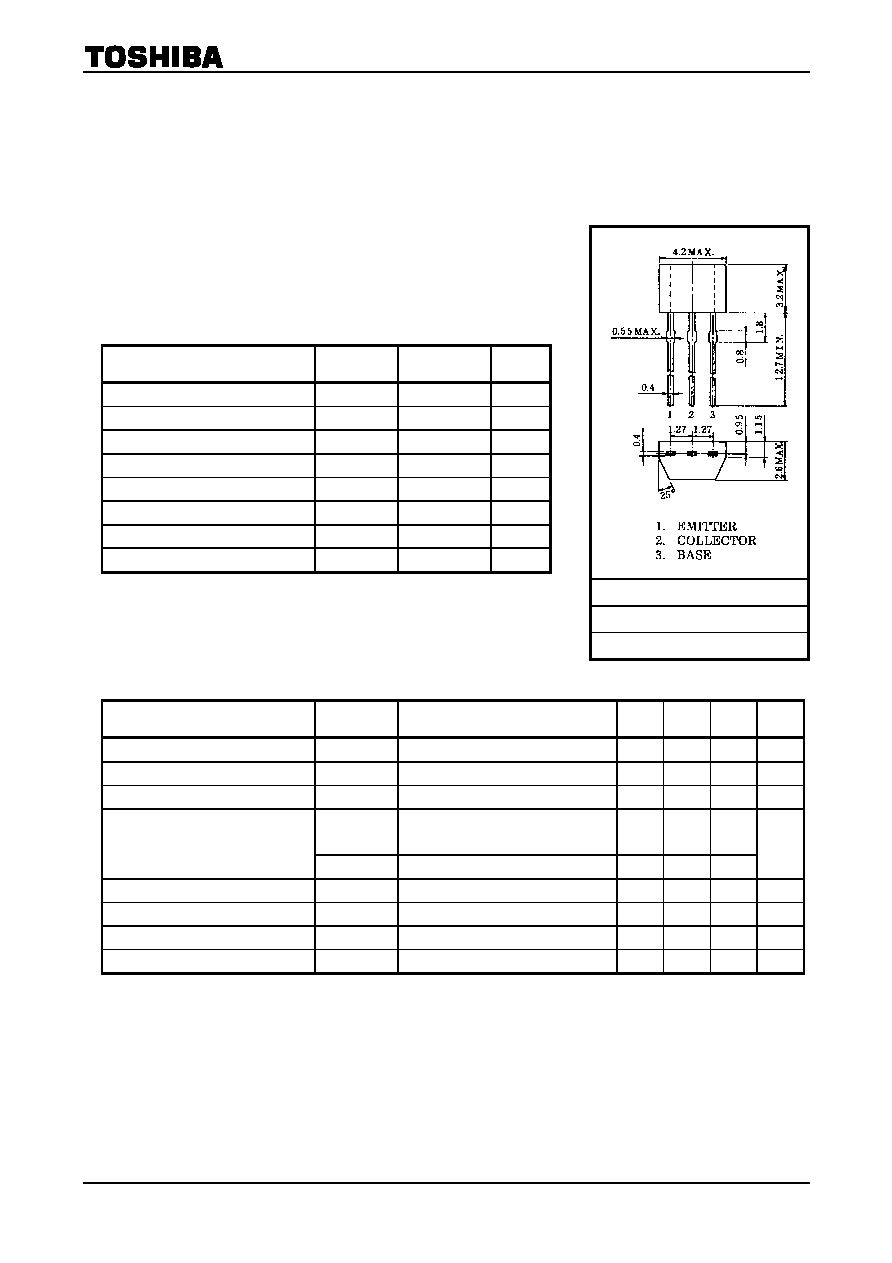

2SA1150
2003-03-24
1
TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process)
2SA1150
Low Frequency Amplifier Applications
High hFE: hFE = 100~320
Complementary to 2SC2710.
Maximum Ratings (Ta
==== 25°C)
Characteristics
Symbol
Rating
Unit
Collector-base voltage
VCBO
-35
V
Collector-emitter voltage
VCEO
-30
V
Emitter-base voltage
VEBO
-5
V
Collector current
IC
-800
mA
Base current
IB
-160
mA
Collector power dissipation
PC
300
mW
Junction temperature
Tj
150
°C
Storage temperature range
Tstg
-55~150
°C
Electrical Characteristics (Ta
==== 25°C)
Characteristics
Symbol
Test Condition
Min
Typ.
Max
Unit
Collector cut-off current
ICBO
VCB = -30 V, IE = 0
-0.1
mA
Emitter cut-off current
IEBO
VEB = -5 V, IC = 0
-0.1
mA
Collector-emitter breakdown voltage
V (BR) CEO
IC = -10 mA, IB = 0
-30
V
hFE (1)
(Note)
VCE = -1 V, IC = -100 mA
100
320
DC current gain
hFE (2)
VCE = -1 V, IC = -700 mA
35
Collector-emitter saturation voltage
VCE (sat)
IC = -500 mA, IB = -20 mA
-0.7
V
Base-emitter voltage
VBE
VCE = -1 V, IC = -10 mA
-0.5
-0.8
V
Transition frequency
fT
VCE = -5 V, IC = -10 mA
120
MHz
Collector output capacitance
Cob
VCB = -10 V, IE = 0, f = 1 MHz
19
pF
Note: hFE (1) classification O: 100~200, Y: 160~320
Unit: mm
JEDEC
―
JEITA
―
TOSHIBA
2-4E1A
Weight: 0.13 g (typ.)
