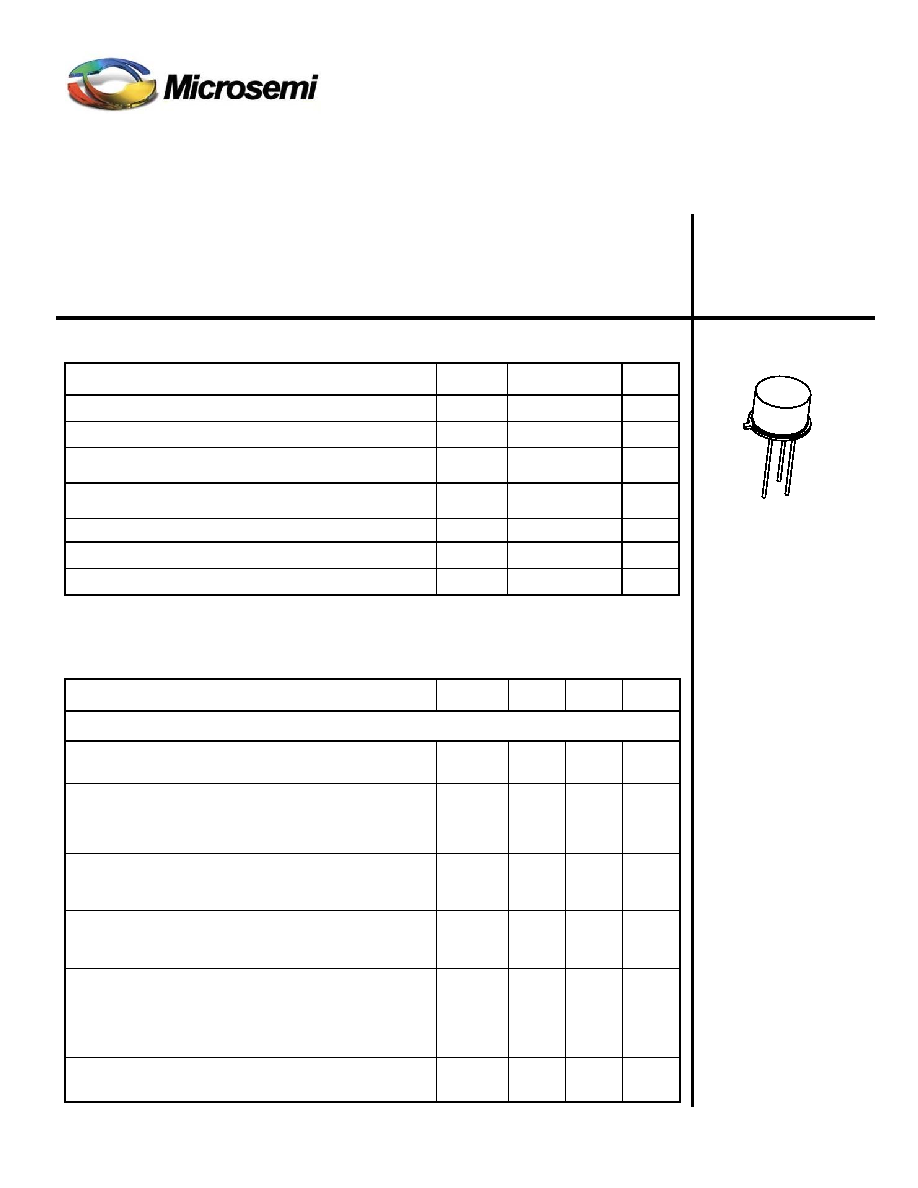

TECHNICAL DATA SHEET
6 Lake Street, Lawrence, MA 01841
Gort Road Business Park, Ennis, Co. Clare, Ireland
1-800-446-1158 / (978) 620-2600 / Fax: (978) 689-0803
Tel: +353 (0) 65 6840044 Fax: +353 (0) 65 6822298
Website: http://www.microsemi.com
N-CHANNEL LOGIC LEVEL MOSFET
Qualified per MIL-PRF-19500/570
T4-LDS-0188 Rev. 1 (101985)
Page 1 of 3
DEVICES
LEVELS
2N6901
JAN
JANTX
JANTXV
ABSOLUTE MAXIMUM RATINGS (TC = +25°C unless otherwise noted)
Parameters / Test Conditions
Symbol
Value
Unit
Drain – Source Voltage
VDS
100
Vdc
Gate – Source Voltage
VGS
± 10
Vdc
Continuous Drain Current
TC = +25°C
ID1
1.69
Adc
Continuous Drain Current
TC = +100°C
ID2
1.07
Adc
Max. Power Dissipation
Ptl
8.33 (1)
W
Drain to Source On State Resistance
Rds(on)
1.4 (2)
Ω
Operating & Storage Temperature
Top, Tstg
-55 to +150
°C
Note: (1) Derated Linearly by 0.067 W/°C for TC > +25°C
(2) VGS = 5Vdc, ID = 1.07A
ELECTRICAL CHARACTERISTICS (TA = +25°C, unless otherwise noted)
Parameters / Test Conditions
Symbol
Min.
Max.
Unit
OFF CHARACTERTICS
Drain-Source Breakdown Voltage
VGS = 0V, ID = -1mAdc
V(BR)DSS
100
Vdc
Gate-Source Voltage (Threshold)
VDS ≥ VGS, ID = 1.0mA
VDS ≥ VGS, ID = 1.0mA, Tj = +125°C
VDS ≥ VGS, ID = 1.0mA, Tj = -55°C
VGS(th)1
VGS(th)2
VGS(th)3
1.0
0.5
2.0
3.0
Vdc
Gate Current
VGS = ±10V, VDS = 0V
VGS = ±10V, VDS = 0V, Tj = +125°C
IGSS1
IGSS2
±100
±200
nAdc
Drain Current
VGS = 0V, VDS = 80V
VGS = 0V, VDS = 80V, Tj = +125°C
IDSS1
IDSS2
1.0
50.0
Adc
uAdc
Static Drain-Source On-State Resistance
VGS = 5V, ID = 1.07A pulsed
Tj = -125°C
VGS = 5V, ID = 1.07A pulsed
rDS(on)1
rDS(on)2
1.4
2.6
Ω
Diode Forward Voltage
VGS = 0V, ID = 1.69A pulsed
VSD
0.8
1.6
Vdc
2N6901
TO-205AF
(formerly TO-39)
SEE FIGURE 1
