4
SCD8601 Rev L 6/21/07
Aeroflex Plainview

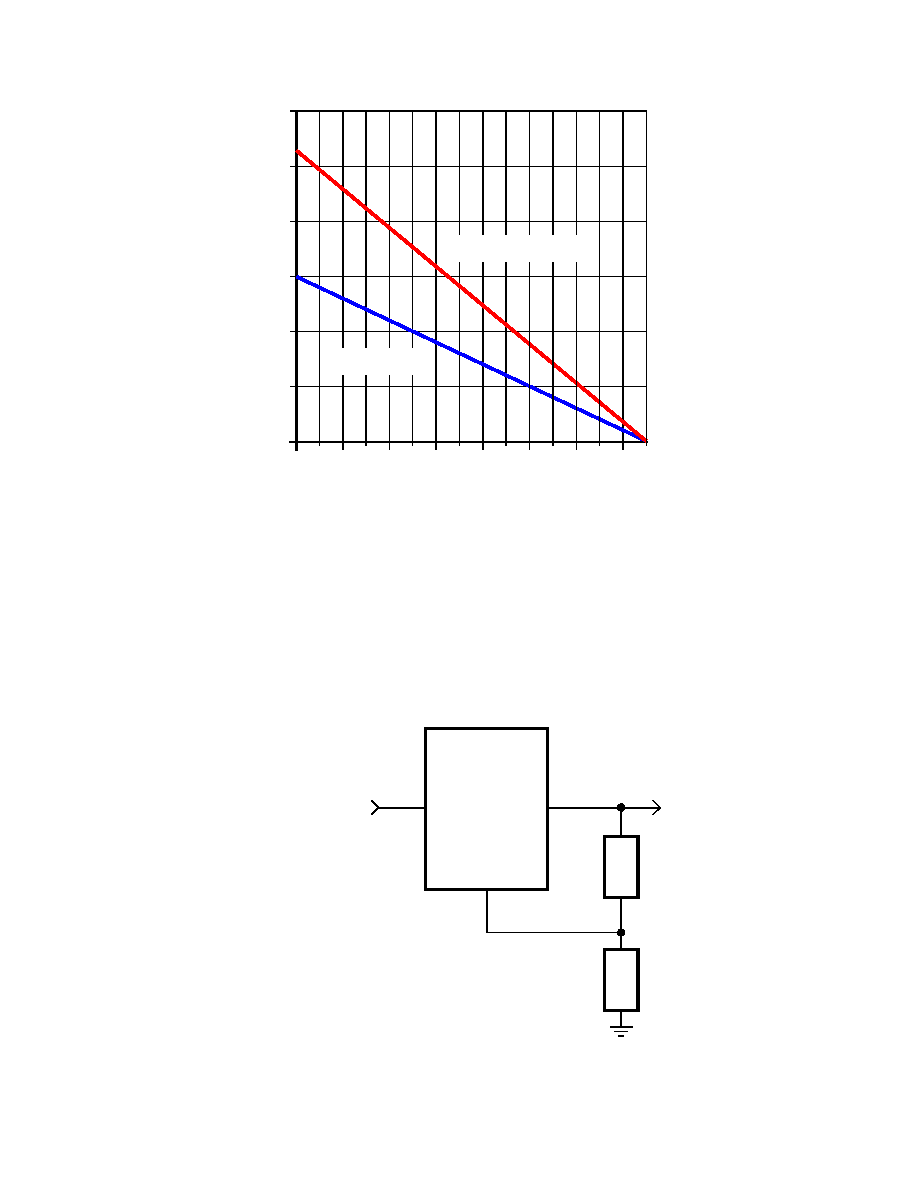

MAXIMUM POWER vs CASE TEMPERATURE
The maximum Power dissipation is limited by the thermal shutdown function of each regulator chip in the VRG860X. The graph
above represents the achievable power before the chip shuts down. The first line in the graph represents the maximum power
dissipation of the VRG860X with one regulator on (the other off) and the other line represents both regulators on dissipating
equal power. If both regulators are on and one regulator is dissipating more power that the other, the maximum power dissipation
of the VRG860X will fall between the two lines. This graph is based on the maximum junction temperature of 150°C and a
thermal resistance (
ΘJC) of 5°C/W.
60
50
40
30
20
10
0
2040
6080
100
120
140
Case Temperature (°C)
1 Regulator
0
Both Regulators
Maximum Power
Dissipation
(Watts)
IADJ = 50A
VREF = 1.25V,
+Reg = VOUT = VREF (1+R2/R1) + (IADJ x R2)
-Reg = VOUT = -VREF (1+R2/R1) + (-IADJ x R2)
VRG860X
VIN
VOUT
ADJ
R1
R2
Adjustable Regulator
