9
μ
PC8119T,
μ
PC8120T

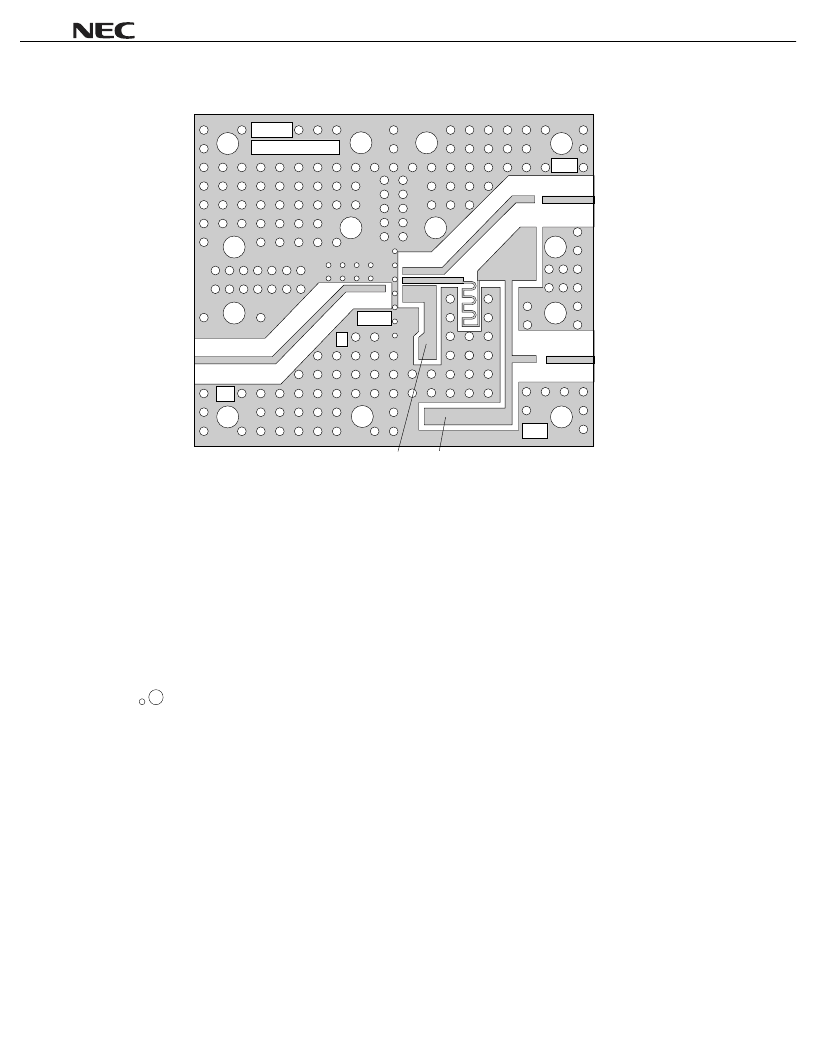

LLUSTRATION AND EXPLANATIONS OF EVALUATION BOARD
P
T
V
V
O
1
I
OUT
Vcc monitor line
IN
V
AGC
V
CC
μ
EXPLANATION
<1> This board prints the pattern inductor which inductance is as same as jumper wire in TEST CIRCUITs
(inductance: approx. 5 nH to 6 nH).
<2> Input leakage to V
CC
pin can be monitored through ‘V
CC
monitor line’. This leakage can be suppressed with
π
type low pass filter attached to V
CC
pin. The filter performance depends on parallel capacitors.
<3> After adjusted low pass filter, monitor line should be removed before output matching circuit is attached.
EVALUATION BOARD CHARACTERS
(1) 35
μ
m thick double-sided copper clad 35
×
42
×
0.4 mm polyimide board
(2) Back side: GND pattern
(3) Solder plated patterns
(4)
: Through holes
ATTENTION
Test circuit or print pattern in this sheet is for testing IC characteristics.
In the case of actual system application, external circuits including print pattern and matching circuit
constant of output port should be designed in accordance with IC’s S parameters and environmental
components.
