43-TV-25-11 GLO Issue 11 03/02 UK
27
Event Marker Setup
Event Markers
are messages posted onto the recorders screen, when an Event oc-
curs. There are 20 event markers that can be customised, each marker can have up to
80 characters with embedded controls <!***!> allowing real-time recorder data to be in-
serted into the text.
Select the marker number from the
Message
box, type text into the
Marker text
box
and add the embedded parameters tag using the drop down lists. Choose a tag from
these options.

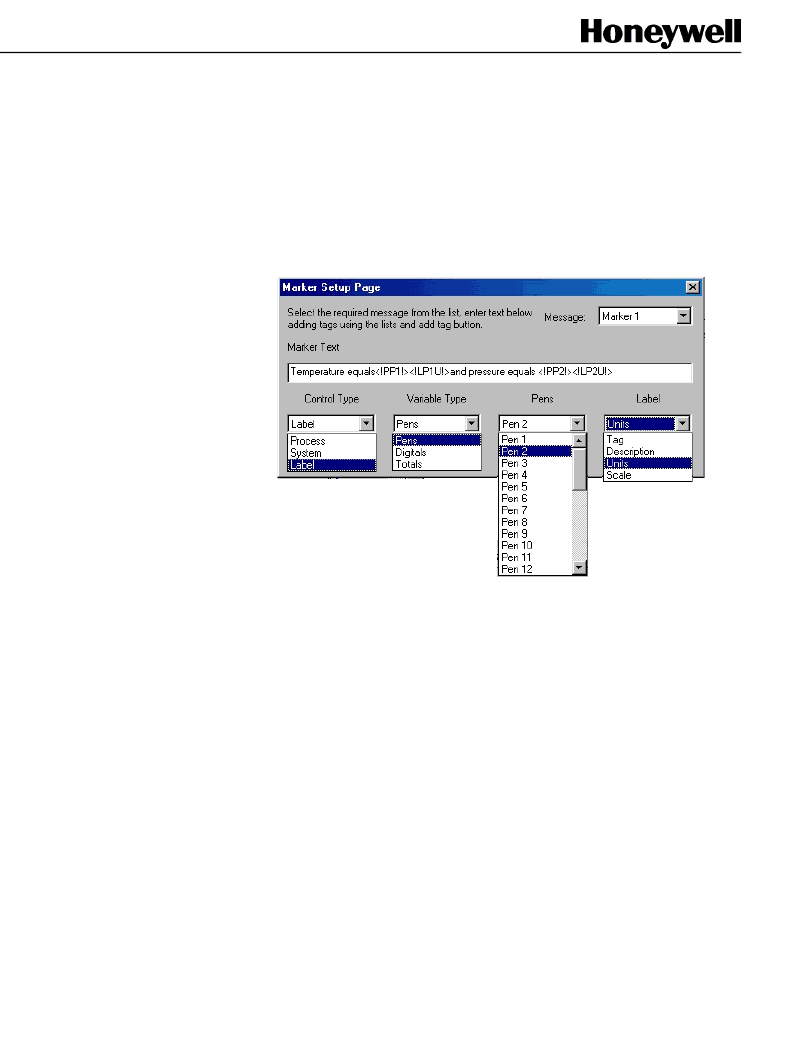

Figure 6.5
shows an example of Marker text, this is how it is broken down.
‘Temperature equals <!PP1!><!LPU!>and pressure equals <!PP2!><!LP2U!>’
‘Temperature equals <!PP1!>’ this tag is telling the system to process the information
on Pen1 and add it to the marker.
‘<!LP1U!’ means add the Pen 1 as a label to the marker plus the units in which it is meas-
uring e.g. seconds, inches or
°
C.
The second part reads ‘pressure equals <!PP2!>’ this is telling the system to process the
information for Pen 2 and add it to the marker.
‘<!LP2U!>’ means add Pen 2 as a label plus the units of measurement to the marker.
This will insert the values of Pen 1 with the Units for Pen 1 and the value of Pen 2 and
the Units Pen 2 into the marker.
A tag must be placed within the text to ensure the recorder information, e.g. the Pen
value, is inserted. When the marker text is finished click on the
Add Tag
button and click
Done
when all markers are complete.
For help on setting up markers use the
“Marker tables” on page 28.
()*+,-
