TFP501
PanelBus HDCP DIGITAL RECEIVER
SLDS127B JULY 2001 REVISED AUGUST 2002
19
POST OFFICE BOX 655303
DALLAS, TEXAS 75265

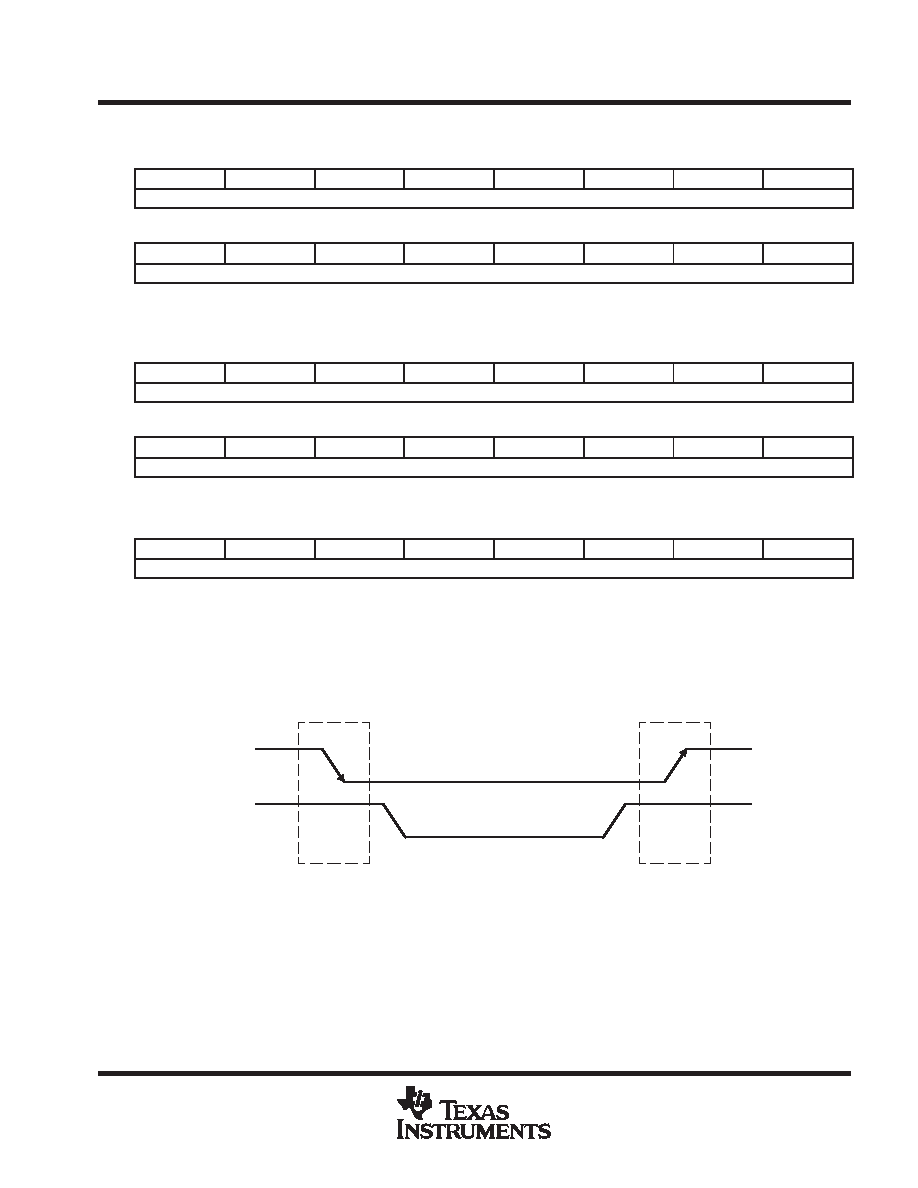

I2C register map (continued)
VEN_ID
Subaddress = C0
Read Only
Default = 4C
7
6
5
4
3
2
1
0
VEN_ID[7:0]
Subaddress = C1
Read Only
Default = 01
7
6
5
4
3
2
1
0
VEN_ID[15:8]
This read-only register contains the 16-bit Texas Instruments vendor ID for the TFP501. VEN_ID[15:0] is
hardwired to 0x014C.
DEV_ID
Subaddress = C2
Read Only
Default = 01
7
6
5
4
3
2
1
0
DEV_ID[7:0]
Subaddress = C3
Read Only
Default = 05
7
6
5
4
3
2
1
0
DEV_ID[15:8]
This read-only register contains the 16-bit device ID for the TFP501. DEV_ID[15:0] is hardwired to 0x0501.
REV_ID
Subaddress = C4
Read Only
Default = 01
7
6
5
4
3
2
1
0
REV_ID[7:0]
This read-only register contains the 8-bit revision ID for the TFP501. REV_ID[7:0] is hardwired to 0x01.
I2C interface
The I2C interface is used to access the internal TFP501 registers. This two-pin interface consists of one clock
line, DDC_SCL, and one serial data line, DDC_SDA. The basic I2C access cycles are shown in Figures 16
and 17.
DDC_SDA
Start Condition (S)
Stop Condition (P)
DDC_SCL
Figure 16. I2C Start and Stop Conditions
The basic access cycle consists of the following:
D A start condition
D A slave address cycle
D A subaddress cycle
D Any number of data cycles
D A stop condition
