TFP201, TFP201A
TI PanelBus
DIGITAL RECEIVER
SLDS116 - MARCH 2000
13
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
detailed description (continued)
TFP201/201A TMDS input levels and input impedance matching (continued)
For DVI compliant systems the resistance between EXT_RES and AVDD should be set to 500 to provide a
single-ended input termination of 50
(100- differential input resistance).

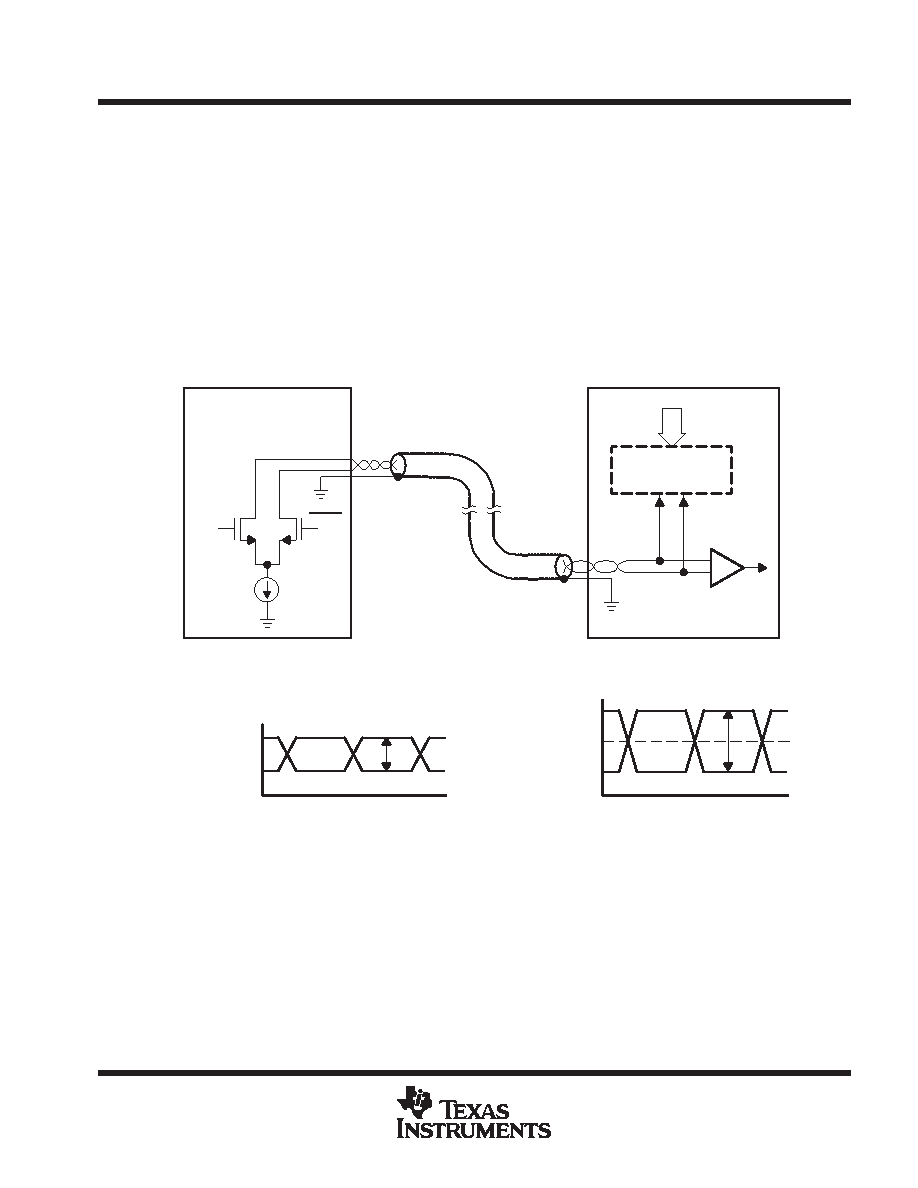

Figure 14 shows a conceptual schematic of a TMDS transmitter and TFP201/201A receiver connection. A
transmitter drives the twisted pair cable via a current source, usually achieved with an open drain type output
driver. Rt, matched to the cable impedance, at the TFP201/201A input provides a pullup to AVDD . Naturally,
when the transmitter is disconnected and the TFP201/201A TMDS inputs are left unconnected, the
TFP201/201A receiver inputs pullup to AVDD. The single ended differential signal and full differential signal is
shown in Figure 15. The TFP201/201A is designed to respond to differential signal swings ranging from 150
mV to 1.56 V with common mode voltages ranging from (AVDD-300 mV) to (AVDD-37 mV).
_
+
Internal
Termination at 50
AVCC
DVI Compliant Cable
DATA
TI TFP201/201A
Receiver
DVI
Transmitter
Current
Source
Figure 14. TMDS Differential Input and Transmitter Connection
1/2 VIDIFF
AVCC
AVCC - 1/2 VIDIFF
+ 1/2 VIDIFF
- 1/2 VIDIFF
VIDIFF
a ) Single-Ended Input Signal
b) Differential Input Signal
Figure 15. TMDS Inputs
ADV
ANCE
INFORMA
TION
