TDA2030
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
12 of 13
www.unisonic.com.tw
QW-R107-004,D
POWER SUPPLY
Using monolithic audio amplifier with non regulated supply correctly. In any working case it must provide a supply
voltage less than the maximum value fixed by the IC breakdown voltage.
It is essential to take into account all the working conditions, in particular mains fluctuations and supply voltage
variations with and without load. The UTC TDA2030 (Vsmax=44V) is particularly suitable for substitution of the
standard IC power amplifiers (with Vsmax=36V) for more reliable applications.
An example, using a simple full-wave rectifier followed by a capacitor filter, is shown in the table and in the diagram
of Fig.10.
A regulated supply is not usually used for the power output stages because of its dimensioning must be done
taking into account the power to supply in signal peaks. They are not only a small percentage of the total music
signal, with consequently large overdimensioning of the circuit.
Even if with a regulated supply higher output power can be obtained(Vs is constant in all working conditions),the
additional cost and power dissipation do not usually justify its use. using non-regulated supplies, there are fewer
designee restriction. In fact, when signal peaks are present, the capacitor filter acts as a flywheel supplying the
required energy.
In average conditions, the continuous power supplied is lower. The music power/continuous power ratio is greater
in case than for the case of regulated supplied, with space saving and cost reduction.
0
0.4
0.8
1.2
1.6
2.0
28
30
32
34
36
V
OU
T
(V)
IOUT(A)

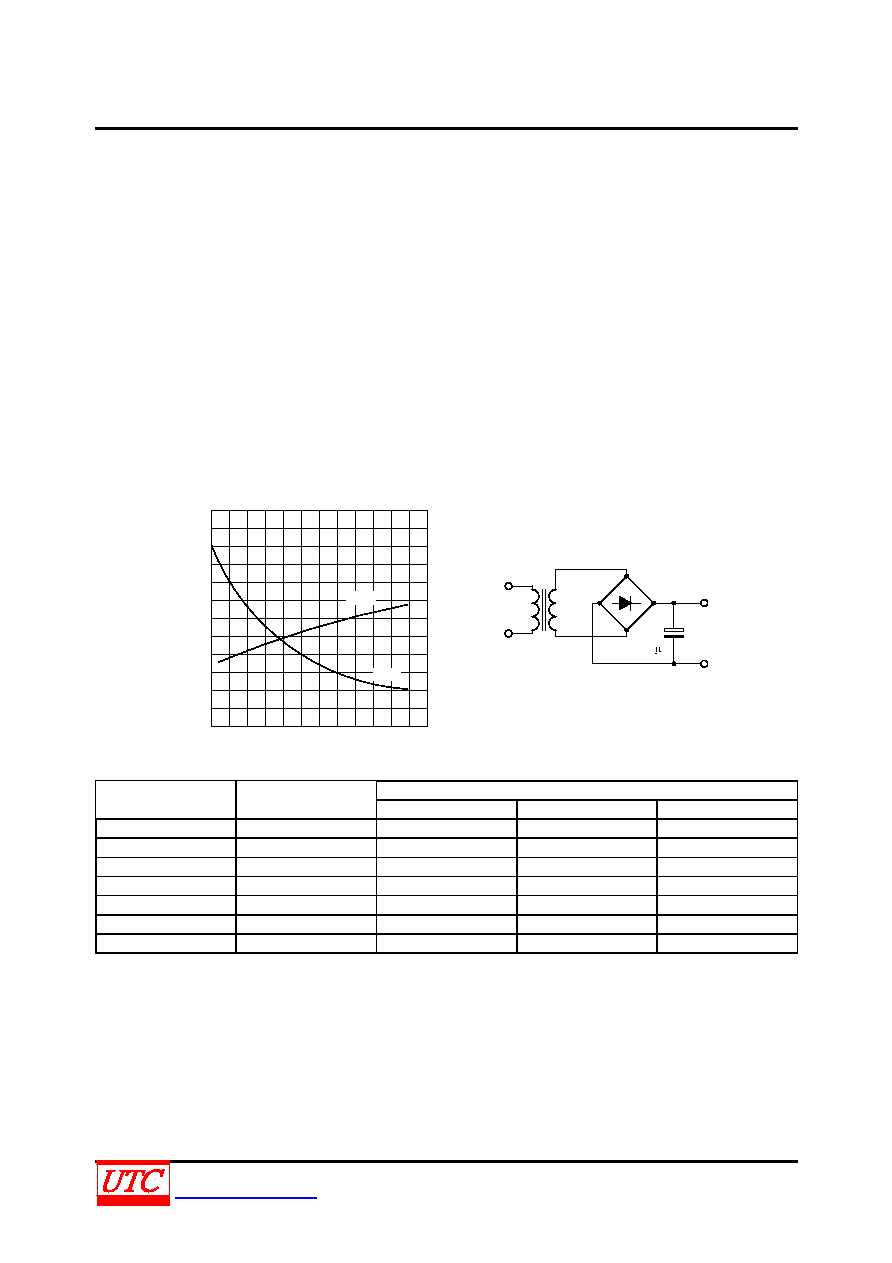

Fig.10 DC characteristics of 50W non-regulated supply
Vo
3300 F
220V
0
2
4
R
ipple
(
V
p-p)
Ripple
Vout
DC Output Voltage(VOUT)
Mains(220V)
Secondary Voltage
IOUT =0
IOUT =0.1A
IOUT =1A
+20%
28.8V
43.2V
42V
37.5V
+15%
27.6V
41.4V
40.3V
35.8V
+10%
26.4V
39.6V
38.5V
34.2V
—
24V
36.2V
35V
31V
-10%
21.6V
32.4V
31.5V
27.8V
-15%
20.4V
30.6V
29.8V
26V
-20%
19.2V
28.8V
28V
24.3V
