SCES794 – OCTOBER 2009 ............................................................................................................................................................................................. www.ti.com
ORDERING INFORMATION
ORDERABLE
TOP-SIDE
TA
PACKAGE(1)(2)
PART NUMBER
MARKING(3)
NanoFree – WCSP (DSBGA)
Reel of 3000
SN74LVC1G74YZPR
PREVIEW
0.23-mm Large Bump – YZP (Pb-free)
SSOP – DCT
Reel of 3000
SN74LVC1G74DCTR
N74_ _ _
–40°C to 85°C
Reel of 3000
SN74LVC1G74DCUR
VSSOP – DCU
N74_
Reel of 250
SN74LVC1G74DCUT
(1)
For the most current package and ordering information, see the Package Option Addendum at the end of this document, or see the TI
web site at www.ti.com.
(2)
Package drawings, thermal data, and symbolization are available at www.ti.com/packaging.
(3)
DCT: The actual top-side marking has three additional characters that designate the year, month, and wafer fab/assembly site.
DCU: The actual top-side marking has one additional character that designates the wafer fab/assembly site.
YZP: The actual top-side marking has three preceding characters to denote year, month, and sequence code, and one following
character to designate the wafer fab/assembly site. Pin 1 identifier indicates solder-bump composition (1 = SnPb, = Pb-free).
FUNCTION TABLE
INPUTS
OUTPUTS
PRE
CLR
CLK
D
Q
L
H
X
H
L
H
L
X
L
H
L
X
H(1)
H
↑
H
L
H
↑
L
H
L
X
Q0
Q 0
(1)
This configuration is nonstable; that is, it does not persist when PRE or CLR returns to its inactive
(high) level.

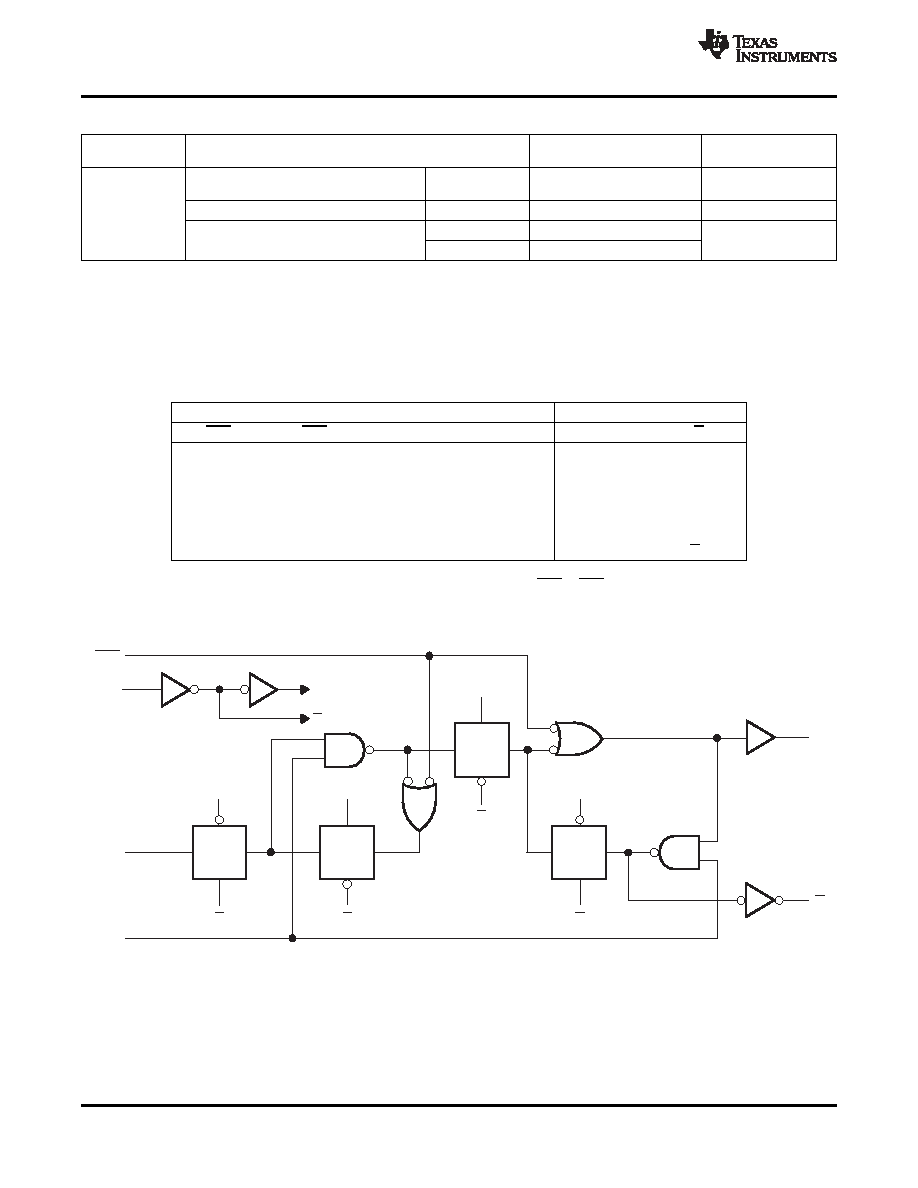

LOGIC DIAGRAM (POSITIVE LOGIC)
2
Copyright 2009, Texas Instruments Incorporated
Product Folder Link(s): SN74LVC1G74
