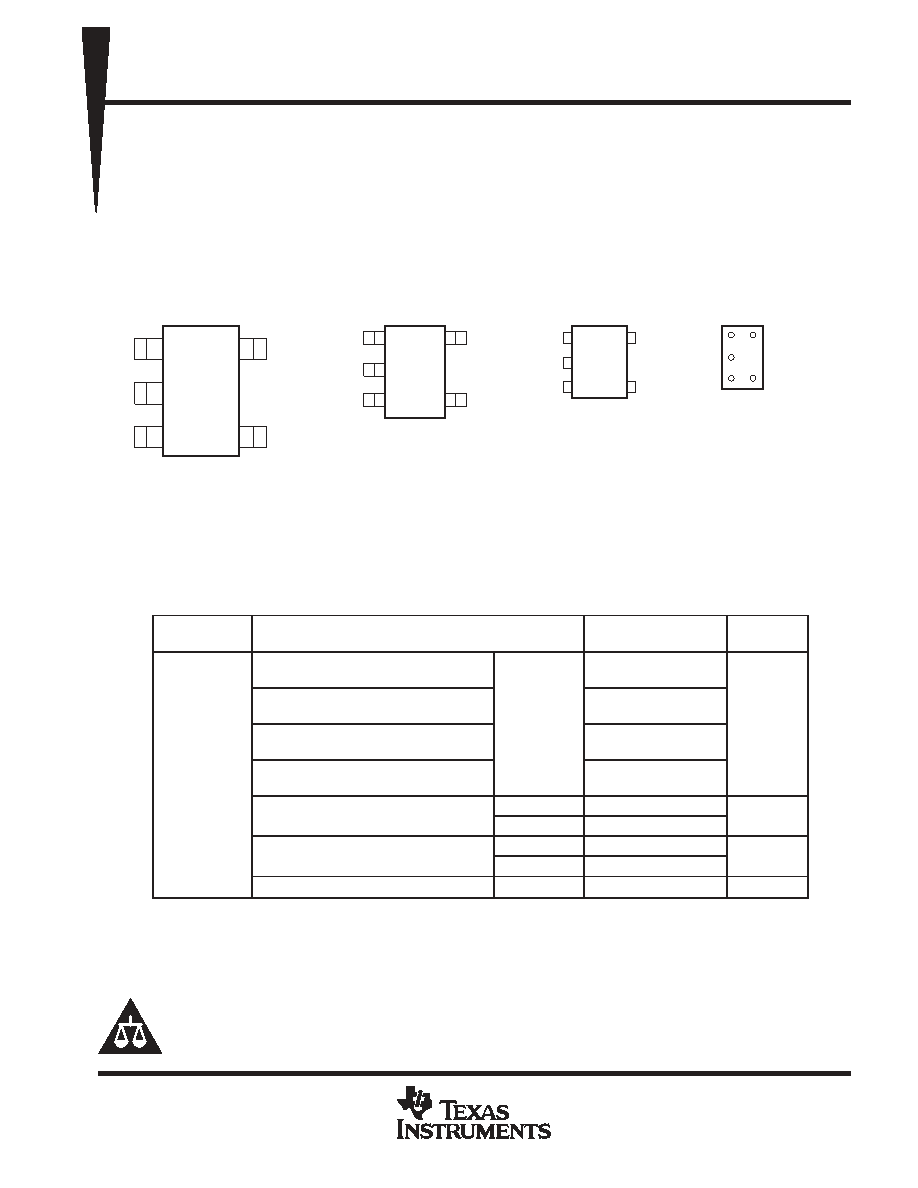

SN74LVC1G126
SINGLE BUS BUFFER GATE
WITH 3STATE OUTPUT
SCES224M APRIL 1999 REVISED JUNE 2005
1
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
D Available in the Texas Instruments
NanoStar
and NanoFree Packages
D Supports 5-V VCC Operation
D Inputs Accept Voltages to 5.5 V
D Max tpd of 3.7 ns at 3.3 V
D Low Power Consumption, 10-A Max ICC
D ±24-mA Output Drive at 3.3 V
D Ioff Supports Partial-Power-Down Mode
Operation
D Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
D ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
3
2
4
5
1
OE
VCC
Y
A
GND
DBV PACKAGE
(TOP VIEW)
YEA, YEP, YZA,
OR YZP PACKAGE
(BOTTOM VIEW)
DCK PACKAGE
(TOP VIEW)
3
2
4
5
1
OE
VCC
Y
A
GND
3
2
4
5
1
OE
VCC
Y
A
GND
OE
GND
VCC
Y
A
DRL PACKAGE
(TOP VIEW)
See mechanical drawings for dimensions.
1
4
2
3
5
description/ordering information
This single bus buffer gate is designed for 1.65-V to 5.5-V VCC operation.
The SN74LVC1G126 is a single line driver with a 3-state output. The output is disabled when the output-enable
(OE) input is low.
ORDERING INFORMATION
TA
PACKAGE
ORDERABLE
PART NUMBER
TOP-SIDE
MARKING
NanoStar
WCSP (DSBGA)
0.17-mm Small Bump YEA
SN74LVC1G126YEAR
NanoFree
WCSP (DSBGA)
0.17-mm Small Bump YZA (Pb-free)
Reel of 3000
SN74LVC1G126YZAR
_ _ _CN_
NanoStar
WCSP (DSBGA)
0.23-mm Large Bump YEP
Reel of 3000
SN74LVC1G126YEPR
_ _ _CN_
40
°C to 85°C
NanoFree
WCSP (DSBGA)
0.23-mm Large Bump YZP (Pb-free)
SN74LVC1G126YZPR
SOT (SOT-23) DBV
Reel of 3000
SN74LVC1G126DBVR
C26_
SOT (SOT-23) DBV
Reel of 250
SN74LVC1G126DBVT
C26_
SOT (SC-70) DCK
Reel of 3000
SN74LVC1G126DCKR
CN_
SOT (SC-70) DCK
Reel of 250
SN74LVC1G126DCKT
CN_
SOT (SOT-553) DRL
Reel of 4000
SN74LVC1G126DRLR
CN_
Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at
www.ti.com/sc/package.
DBV/DCK/DRL: The actual top-side marking has one additional character that designates the assembly/test site.
YEA/YZA, YEP/YZP: The actual top-side marking has three preceding characters to denote year, month, and sequence code,
and one following character to designate the assembly/test site. Pin 1 identifier indicates solder-bump composition
(1 = SnPb,
= Pb-free).
Copyright
2005, Texas Instruments Incorporated
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
NanoStar and NanoFree are trademarks of Texas Instruments.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
