參數資料
| 型號： | SN74CBT3383DWRE4 |
| 廠商： | TEXAS INSTRUMENTS INC |
| 元件分類： | 總線收發器 |
| 英文描述： | CBT/FST/QS/5C/B SERIES, 5 2-BIT EXCHANGER, TRUE OUTPUT, PDSO24 |
| 封裝： | GREEN, PLASTIC, SOIC-24 |
| 文件頁數： | 1/17頁 |
| 文件大?。?/td> | 555K |
| 代理商： | SN74CBT3383DWRE4 |
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

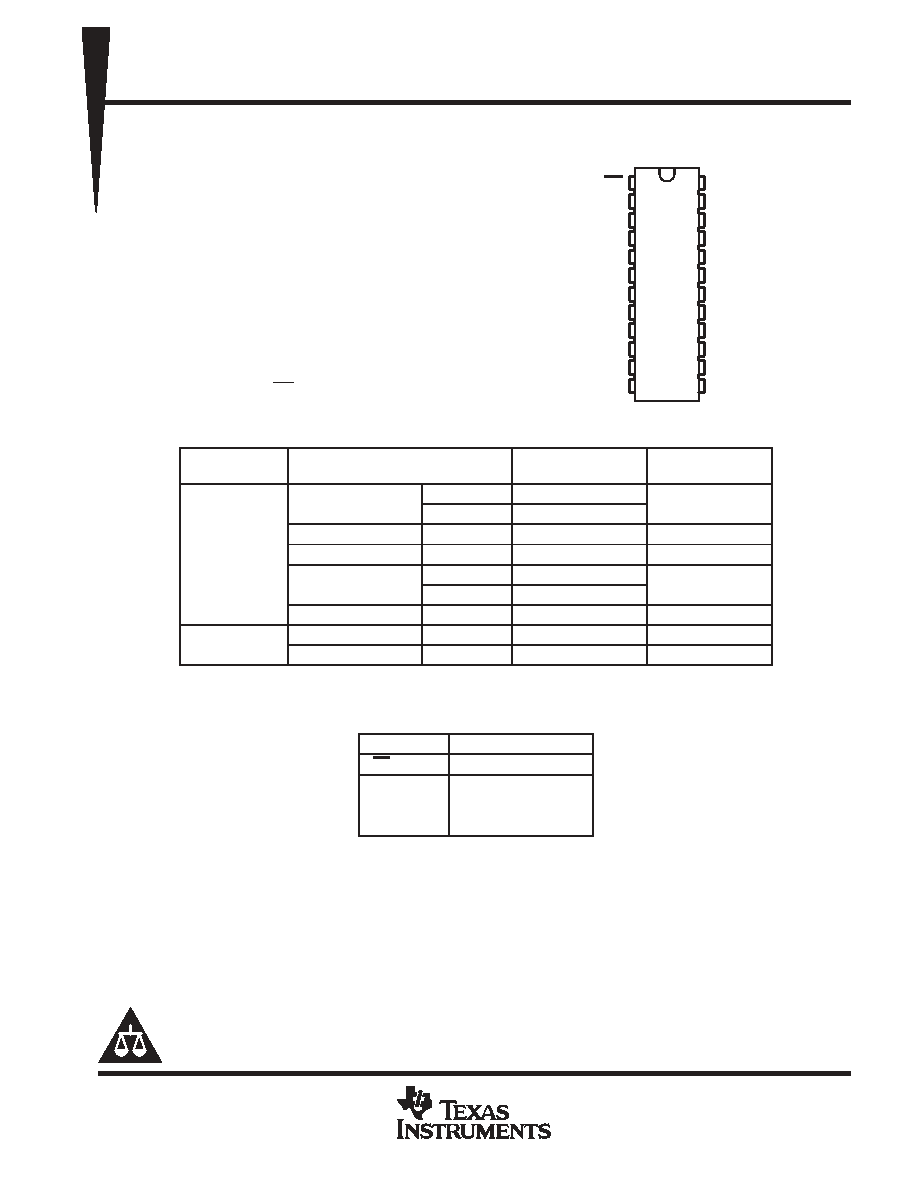

SN54CBT3383, SN74CBT3383
10BIT FET BUSEXCHANGE SWITCHES
SCDS003O NOVEMBER 1992 REVISED JULY 2004
1
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
D 5- Switch Connection Between Two Ports
D TTL-Compatible Input Levels
description/ordering information
The ’CBT3383 devices provide ten bits of
high-speed TTL-compatible bus switching or
exchanging. The low on-state resistance of the
switch allows connections to be made with
minimal propagation delay.
The devices operate as a 10-bit bus switch or a
5-bit bus exchanger, which provides swapping of
the A and B pairs of signals. The bus-exchange
function is selected when BX is high. The switches
are connected when BE is low.
ORDERING INFORMATION
TA
PACKAGE
ORDERABLE
PART NUMBER
TOP-SIDE
MARKING
SOIC DW
Tube
SN74CBT3383DW
CBT3383
SOIC DW
Tape and reel
SN74CBT3383DWR
CBT3383
SSOP DB
Tape and reel
SN74CBT3383DBR
CU383
40
°C to 85°C
SSOP (QSOP) DBQ
Tape and reel
SN74CBT3383DBQR
CBT3383
40 C to 85 C
TSSOP PW
Tube
SN74CBT3383PW
CU383
TSSOP PW
Tape and reel
SN74CBT3383PWR
CU383
TVSOP DGV
Tape and reel
SN74CBT3383DGVR
CU383
55
°C to 125°C
CDIP JT
Tube
SNJ54CBT3383JT
55
°C to 125°C
CFP W
Tube
SNJ54CBT3383W
Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are
available at www.ti.com/sc/package.
FUNCTION TABLE
INPUTS
INPUTS/OUTPUTS
BE
BX
1A15A1
1A25A2
L
1B15B1
1B25B2
L
H
1B25B2
1B15B1
H
X
Z
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Copyright
2004, Texas Instruments Incorporated
SN54CBT3383 ...JT OR W PACKAGE
SN74CBT3383 . . . DB, DBQ, DGV, DW, OR PW PACKAGE
(TOP VIEW)
BE
1B1
1A1
1A2
1B2
2B1
2A1
2A2
2B2
3B1
3A1
GND
VCC
5B2
5A2
5A1
5B1
4B2
4A2
4A1
4B1
3B2
3A2
BX
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
On products compliant to MILPRF38535, all parameters are tested
unless otherwise noted. On all other products, production
processing does not necessarily include testing of all parameters.
