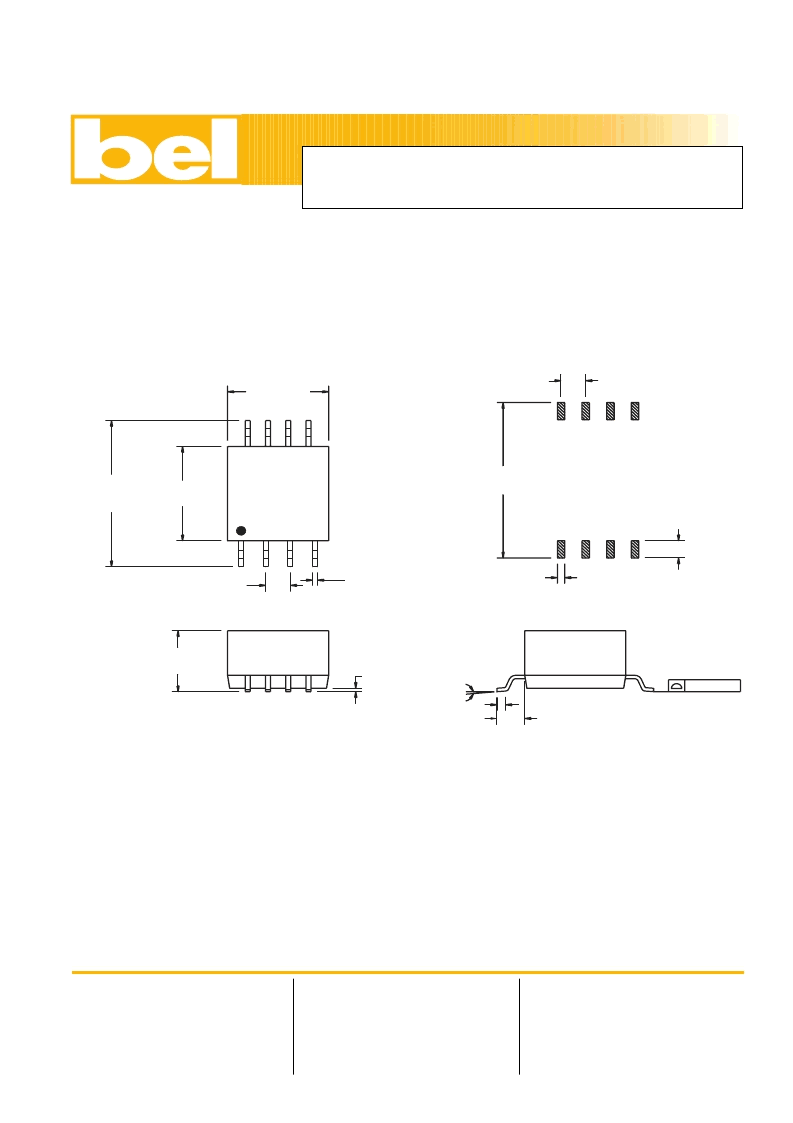

MECHANICAL
HIGH FREQUENCY MAGNECTICS
Wideband Surface Mount Transformers
Tape and Reel Packaging
32 mm wide by 24mm pitch; 13 inch OD, 4 inch ID
350 transformers per reel, maximum
Meets ANSI/EIA 481-2 Carrier Tape Standards-JEDEC SO Package
Dimensions are in inches (millimeters).
Standard dimension tolerance is ±0.005(0.13) uness otherwise noted.
S553-6500-B3
S553-6500-B4
0.410 [10.41]
MAX
0.635 [16.13]
MAX
0.410 [10.41]
MAX
0.020 ±0.002
[0.51 ±0.05]
0.100 [2.54]
0.27 [6.86]
MAX
0.015 MIN
[0.38]
0.035 [0.89]
0.113 [2.86]
0.004 [0.10]
0.100 [2.54]
0.675 [17.15]
0.075 [1.91]
0.030
[0.76]
0
o-
5
o
SUGGESTED PCB PAD LAYOUT
