1998 May 11
6
Philips Semiconductors
Product specification
8-bit microcontroller with DTMF generator
PCD3349A
6
FREQUENCY GENERATOR
A versatile frequency generator section is provided (see
Fig.3). For normal operation, use a 3.58 MHz quartz
crystal or PXE resonator. The frequency generator
includes precision circuitry for dual tone multifrequency
(DTMF) signals, which is typically used for tone dialling
telephone sets.
The TONE output can alternatively issue twelve modem
frequencies for data rates between 300 and 1200 bits/s.
In addition to DTMF and modem frequencies, two octaves
of musical scale in steps of semitones are available.
6.1
Frequency generator derivative registers
Table 2 gives the derivative addresses, mnemonics and access types of the frequency generator derivative registers.
The addresses 03H to FFH are not used.
Table 2
Addresses of the frequency generator derivative registers
Notes
1.
2.
HGF = High Group Frequency; access type W.
LGF = Low Group Frequency; access type W.
ADDRESS
REGISTER
HGF
(1)
LGF
(2)
7
6
5
4
3
2
1
0
01H
02H
H7
L7
H6
L6
H5
L5
H4
L4
H3
L3
H2
L2
H1
L1
H0
L0

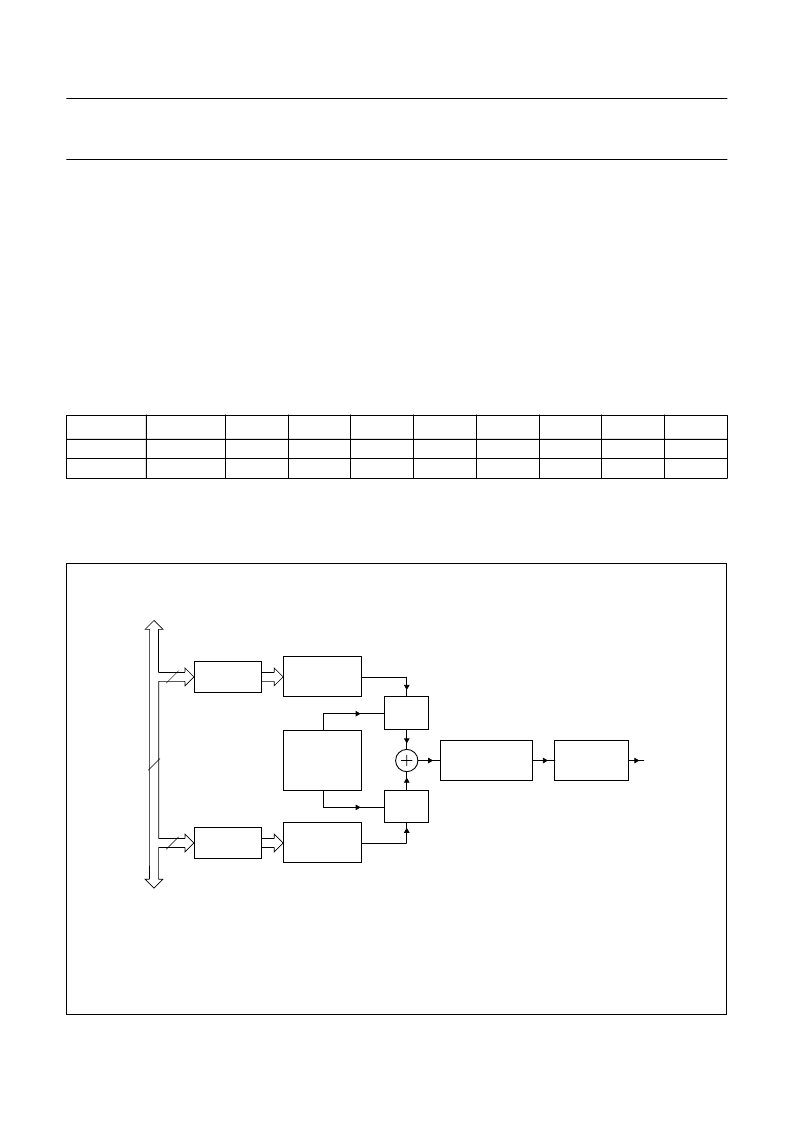

Fig.3 Block diagram of the frequency generator section.
dbook, full pagewidth
HGF
REGISTER
MBG099
DIGITAL
SINE WAVE
SYNTHESIZER
8
SWITCHED-
CAPACITOR
BANDGAP
VOLTAGE
REFERENCE
DAC
DAC
LGF
REGISTER
DIGITAL
SINE WAVE
SYNTHESIZER
8
8 internal bus
SWITCHED-
CAPACITOR
LOW-PASS FILTER
RC LOW-PASS
FILTER
TONE
