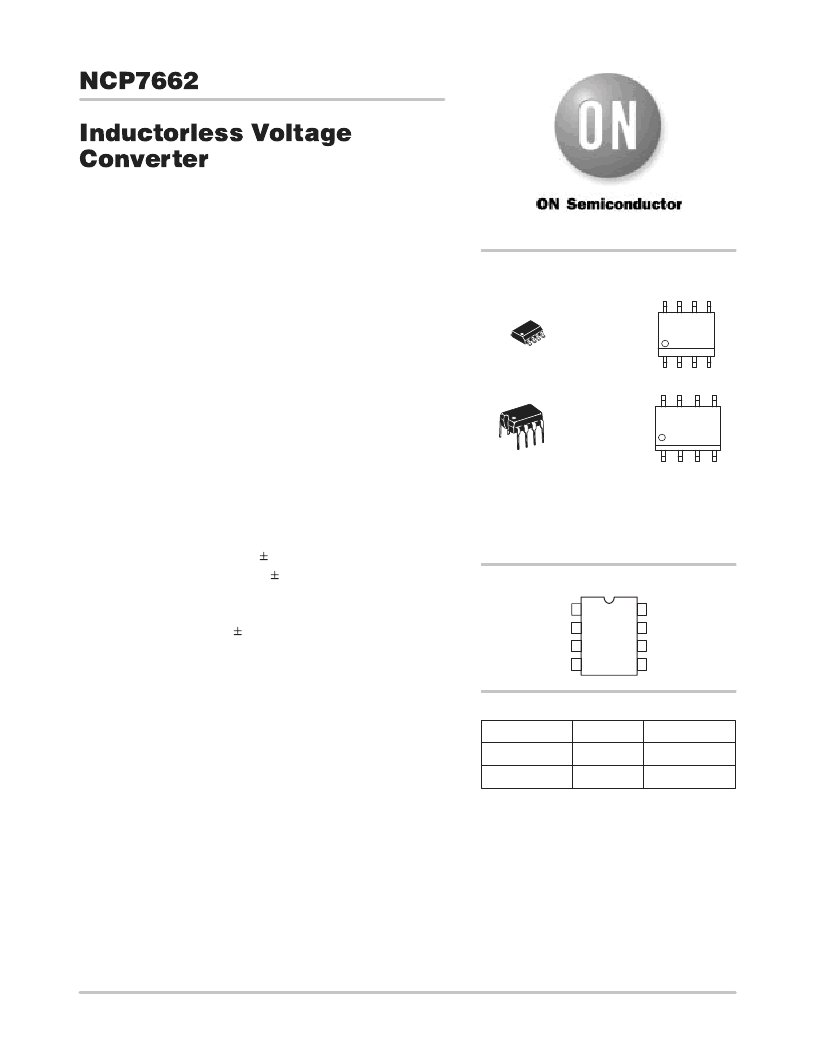

Semiconductor Components Industries, LLC, 2000
June, 2000 – Rev. 0
1
Publication Order Number:
NCP7662/D
The NCP7662 is a pin–compatible upgrade to the industry standard
TC7660 charge pump voltage converter. It converts a +1.5 V to +15 V
input to a corresponding –1.5 to –15 V output using only two low–cost
capacitors, eliminating inductors and their associated cost, size and
EMI.
The on–board oscillator operates at a nominal frequency of 10 kHz.
Frequency is increased to 35 kHz when pin 1 is connected to V+,
allowing the use of smaller external capacitors. Operation below 10 kHz
(for lower supply current applications) is also possible by connecting an
external capacitor from OSC to ground (with pin 1 open).
The NCP7662 is available in both 8–pin DIP and 8–pin small outline
(SO) packages in commercial and extended temperature ranges.
Features
Wide Operating Voltage Range: 1.5 V to 15 V
Boost Pin (Pin 1) for Higher Switching Frequency
High Power Efficiency is 96%
Easy to Use – Requires Only 2 External Non–Critical Passive
Components
Improved Direct Replacement for Industry Standard ICL7660 and
Other Second Source Devices
Applications
Simple Conversion of +5 V to
Voltage Multiplication VOUT =
Negative Supplies for Data Acquisition Systems and Instrumentation
RS232 Power Supplies
Supply Splitter, VOUT =
VS/2
5 V Supplies
nVIN
Device
Package
Shipping
ORDERING INFORMATION
NCP7662DR2
SO–8
2500 Tape & Reel
NCP7662P
http://onsemi.com
50 Units/Rail
SO–8
D SUFFIX
CASE 751
1
8
MARKING
DIAGRAMS
PIN CONNECTIONS
BOOST
V+
CAP+
GND
CAP–
OSC
LOW
VOLTAGE (LV)
VOUT
PDIP–8
4
N
NCP
7662
YWWXZ
1
8
PDIP–8
P SUFFIX
CASE 626
1
8
NCP7662
YYWWXZ
CO
1
8
1
2
3
5
8
7
6
YY, Y
WW
X
Z
CO
= Year
= Work Week
= Assembly ID Code
= Subcontractor ID Code
= Country of Orgin
