Design Considerations
Application Design Considerations
Preliminary
MOTOROLA
MC68176 Technical Data Sheet
4-3
APPLICATION DESIGN CONSIDERATIONS
The FLEX chip IC connects to a receiver capable of converting a four-level audio
signal into a 2-bit digital signal with the MC68176 FLEX 2-bit D/ A. The FLEX chip IC
has eight receiver control lines used for warming up and shutting down a receiver in
stages, dual bandwidth control signals for two post detection filter bandwidths for
receiving the two symbol rates of the FLEX signal, and the ability to detect a low
battery signal during the receiver control sequences. It interfaces to a host MCU
through a standard SPI. It has a 38.4 kHz clock output capable of driving other
devices, in particular the MC68176. It has a 1 minute timer that offers low power
support for time of day function on the host.

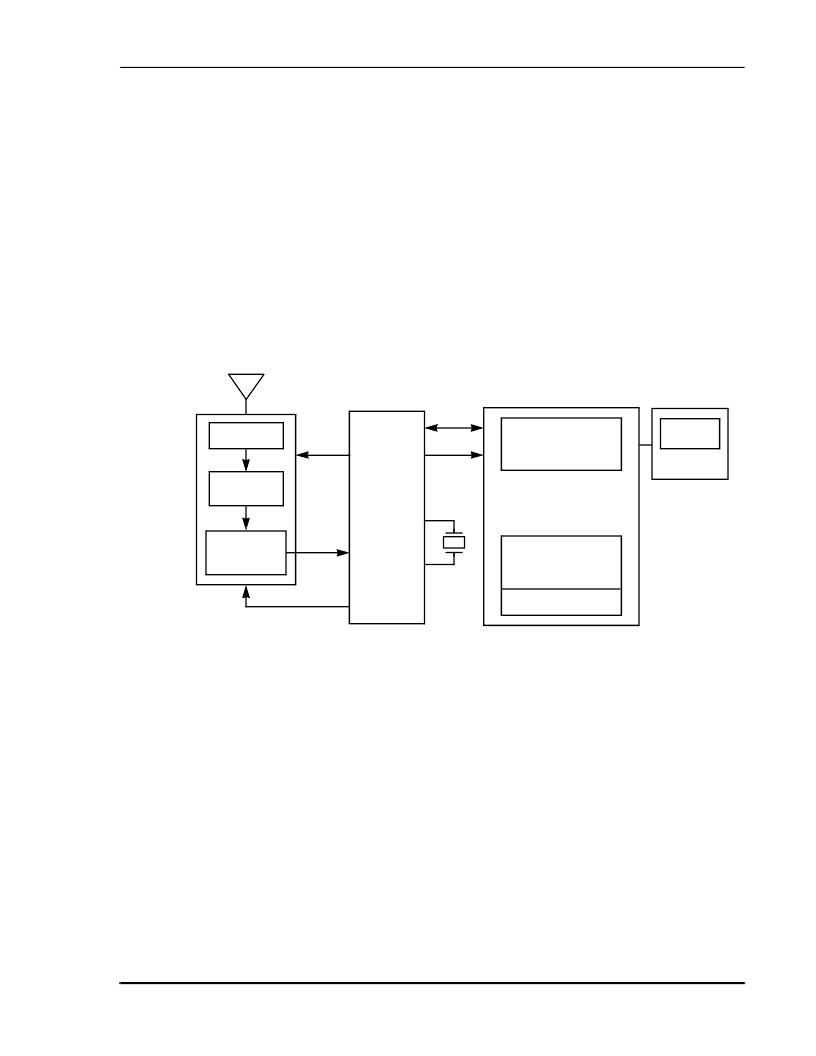

Figure 4-1
shows a typical application
block diagram.
Figure 4-1
FLEX chip System Block Diagram
SPI
MC68175
FLEX chip
IC Decoder
Audio
38.4 kHz
Clock Out
RF
MC13141
MC13142
MMBR941
MC13150
MC3367
MC3374
MC68HC05xxHC08xx
MC68HC11/HC12/HC16xx
MC683xx/MPC5xx/8xx
DSP568xx
API
FLEXstack
Software
Data
Ready
Receiver
Control
76.8 kHz
Oscillator
Analog to
Digital
Converter
User
Interface
LNA
IF
Host
Microprocessor
AA0814
MC68176
2-bit A/D
Converter
