MAX211
5V MULTICHANNEL RS232 LINE DRIVER/RECEIVER
WITH ±15kV ESD PROTECTION
SLLS567E MAY 2003 REVISED JANUARY 2004
9
POST OFFICE BOX 655303
DALLAS, TEXAS 75265

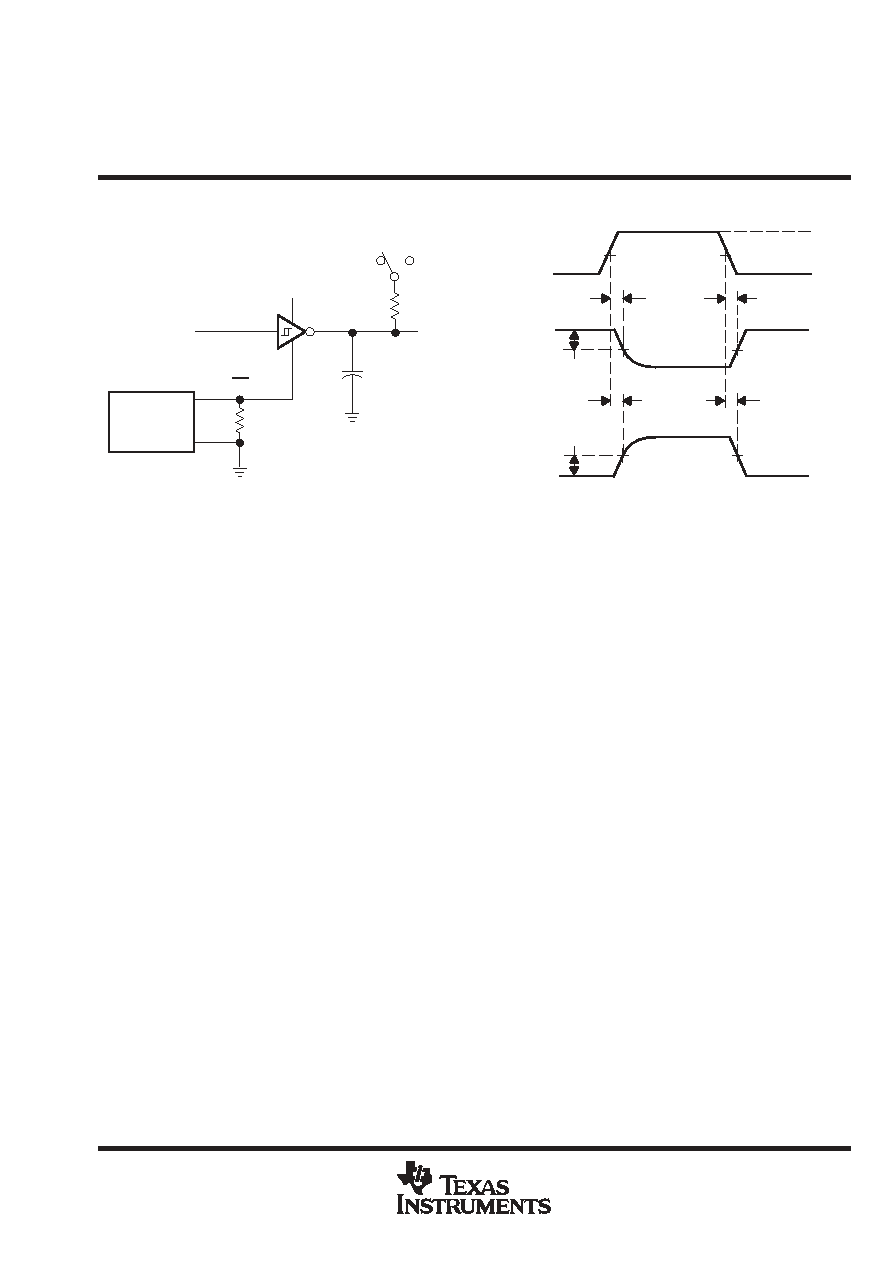

PARAMETER MEASUREMENT INFORMATION
TEST CIRCUIT
50
Generator
(see Note B)
3 V or 0 V
0 V
SHDN
EN
NOTES: A. CL includes probe and jig capacitance.
B. The pulse generator has the following characteristics: ZO = 50 , 50% duty cycle, tr ≤ 10 ns, tf ≤ 10 ns.
C. tPLZ and tPHZ are the same as tdis.
D. tPZL and tPZH are the same as ten.
RL
S1
VCC
GND
CL
(see Note A)
Output
VOLTAGE WAVEFORMS
VOH 0.1 V
VOL
VOH
tPZH
(S1 at GND)
3 V
0 V
VOL + 0.1 V
Input
1.5 V
tPHZ
(S1 at GND)
tPLZ
(S1 at VCC)
0.8 V
tPZL
(S1 at VCC)
3.5 V
Output
Figure 5. Receiver Enable and Disable Times
