- 您現在的位置：買賣IC網 > PDF目錄8457 > M74VHC1G132DFT2G (ON Semiconductor)IC GATE NAND SGL SCHMITT SOT-353 PDF資料下載
參數資料
| 型號： | M74VHC1G132DFT2G |
| 廠商： | ON Semiconductor |
| 文件頁數： | 1/6頁 |
| 文件大?。?/td> | 0K |
| 描述： | IC GATE NAND SGL SCHMITT SOT-353 |
| 產品變化通告： | Wire Change for SC88/A 17/Jun/2011 |
| 標準包裝： | 3,000 |
| 系列： | 74VHC |
| 邏輯類型： | 與非門 |
| 電路數： | 1 |
| 輸入數： | 2 |
| 特點： | 施密特觸發器 |
| 電源電壓： | 2 V ~ 5.5 V |
| 電流 - 靜態（最大值）： | 1µA |
| 輸出電流高，低： | 8mA，8mA |
| 邏輯電平 - 低： | 0.65 V ~ 1.45 V |
| 邏輯電平 - 高： | 2.25 V ~ 3.7 V |
| 額定電壓和最大 CL 時的最大傳播延遲： | 9.7ns @ 4.5V ~ 5.5V，50pF |
| 工作溫度： | -55°C ~ 125°C |
| 安裝類型： | 表面貼裝 |
| 供應商設備封裝： | SC-70 |
| 封裝/外殼： | 6-TSSOP（5 引線），SC-88A，SOT-353 |
| 包裝： | 帶卷 (TR) |
| 其它名稱： | M74VHC1G132DFT2G-ND M74VHC1G132DFT2GOSTR |

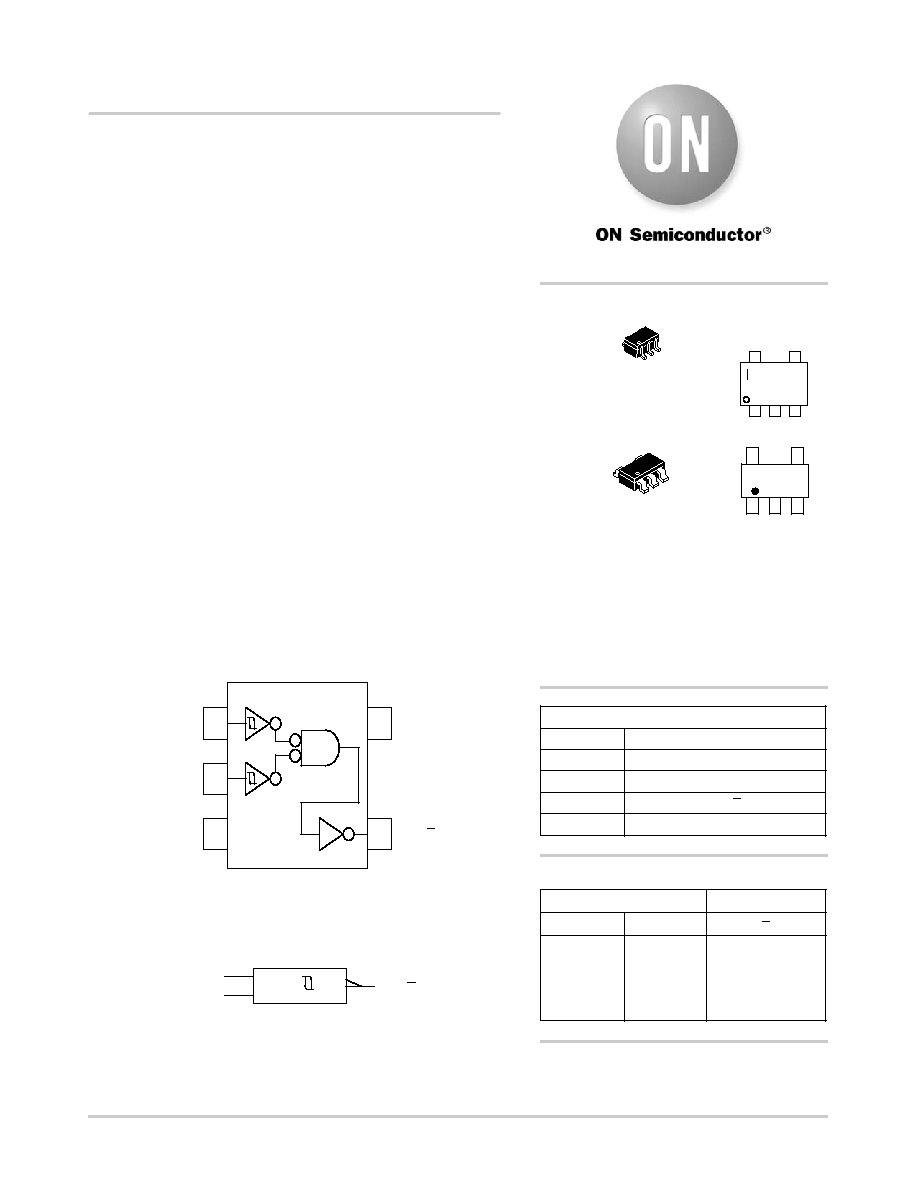

Semiconductor Components Industries, LLC, 2013
July, 2013 Rev. 21
1
Publication Order Number:
MC74VHC1G132/D
MC74VHC1G132
2-Input NAND
Schmitt-Trigger
The MC74VHC1G132 is a single gate CMOS Schmitt NAND
trigger fabricated with silicon gate CMOS technology. It achieves high
speed operation similar to equivalent Bipolar Schottky TTL while
maintaining CMOS low power dissipation.
The internal circuit is composed of three stages, including a buffer
output which provides high noise immunity and stable output.
The MC74VHC1G132 input structure provides protection when
voltages up to 7 V are applied, regardless of the supply voltage. This
allows the MC74VHC1G132 to be used to interface 5 V circuits to 3 V
circuits.
The MC74VHC1G132 can be used to enhance noise immunity or to
square up slowly changing waveforms.
Features
High Speed: tPD = 3.6 ns (Typ) at VCC = 5 V
Low Power Dissipation: ICC = 1.0 mA (Max) at TA = 25°C
Power Down Protection Provided on Inputs
Balanced Propagation Delays
Pin and Function Compatible with Other Standard Logic Families
Chip Complexity: FETs = 68; Equivalent Gates = 16
NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AECQ100
Qualified and PPAP Capable
These Devices are PbFree and are RoHS Compliant
Figure 1. Pinout (Top View)
VCC
IN B
IN A
OUT Y
GND
IN A
IN B
OUT Y
&
Figure 2. Logic Symbol
1
2
3
4
5
PIN ASSIGNMENT
1
2
3
GND
IN B
IN A
5VCC
OUT Y
L
H
L
H
L
H
FUNCTION TABLE
Inputs
Output
AB
H
L
Y
See detailed ordering and shipping information in the package
dimensions section on page 4 of this data sheet.
ORDERING INFORMATION
http://onsemi.com
SC88A / SOT353 / SC70
DF SUFFIX
CASE 419A
TSOP5 / SOT23 / SC59
DT SUFFIX
CASE 483
MARKING
DIAGRAMS
1
5
1
5
1
5
VD M G
G
VD
= Device Code
M
= Date Code*
G
= PbFree Package
1
5
(Note: Microdot may be in either location)
*Date Code orientation and/or position may vary
depending upon manufacturing location.
VD M G
G
M
