LY3200ALH
Application hints
Doc ID 16571 Rev 1
9/13
5
Application hints

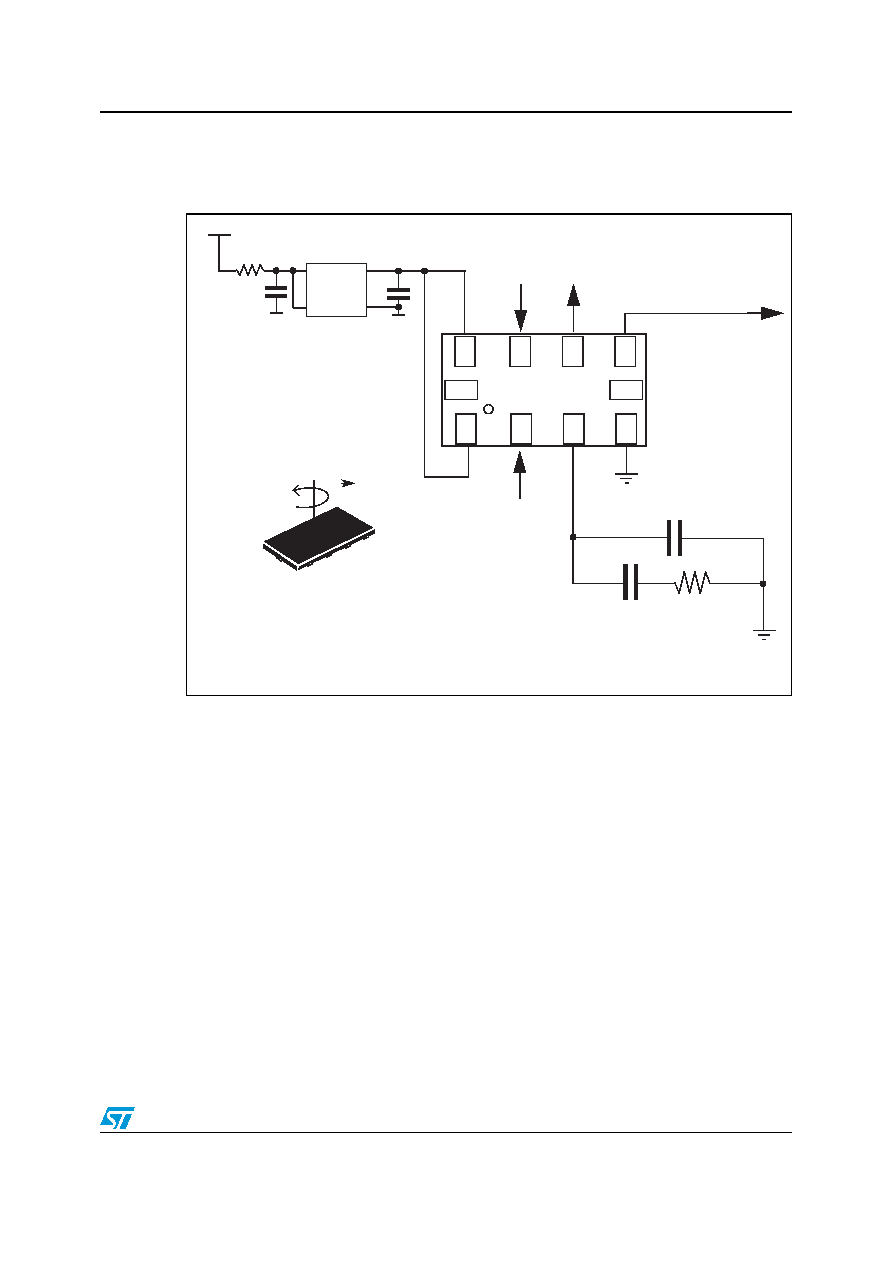

Figure 3.
LY3200ALH electrical connections and external components values
Power supply decoupling capacitors should be placed in combination with an LDO regulator
(common design practice).
The LY3200ALH IC includes a PLL (phase-locked loop) circuit to synchronize driving and
sensing interfaces. Capacitors and resistors must be added at VCONT pin 3 (as shown in
Figure 3) to implement a low-pass filter.
100 nF
10kOhm
470nF
Supply
C2
R1
C1
GND
1 F
10nF
SLEEP/PD
GND
OUT Z
9
6
1
4
10
5
GND
ST
Vref
TOP VIEW
(TOP VIEW)
DIRECTION OF THE
DETECTABLE
ANGULAR RATE
+
z
LDO
2.2Ohm
GND
AM03841v1
